Descrizione

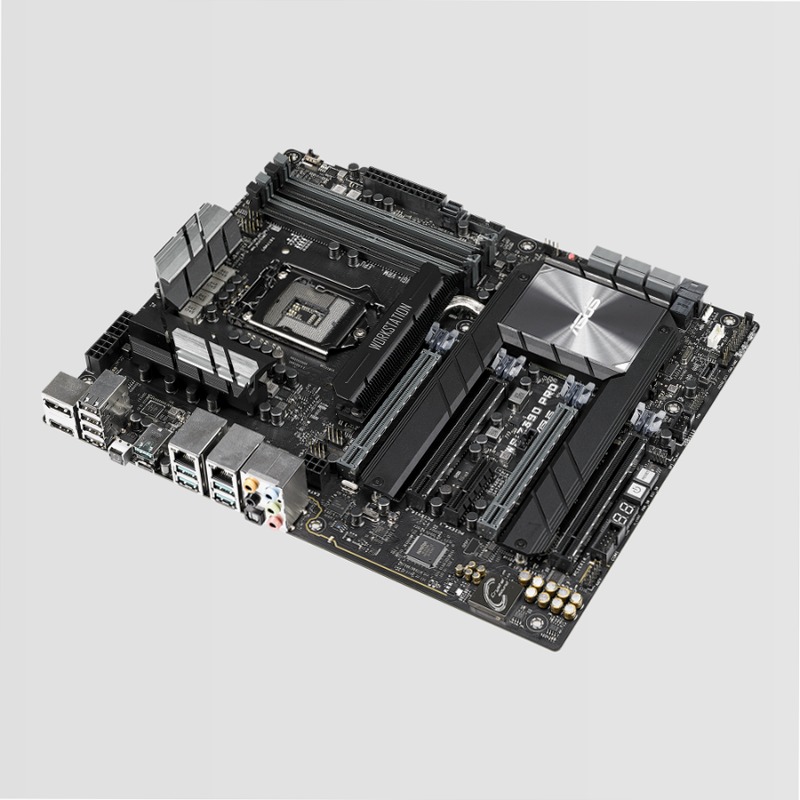

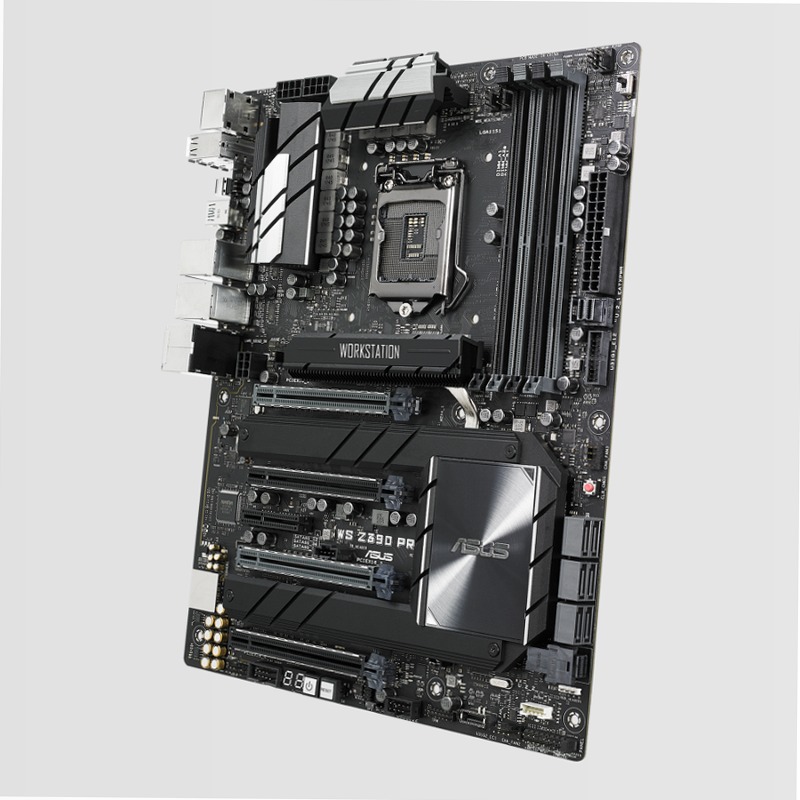

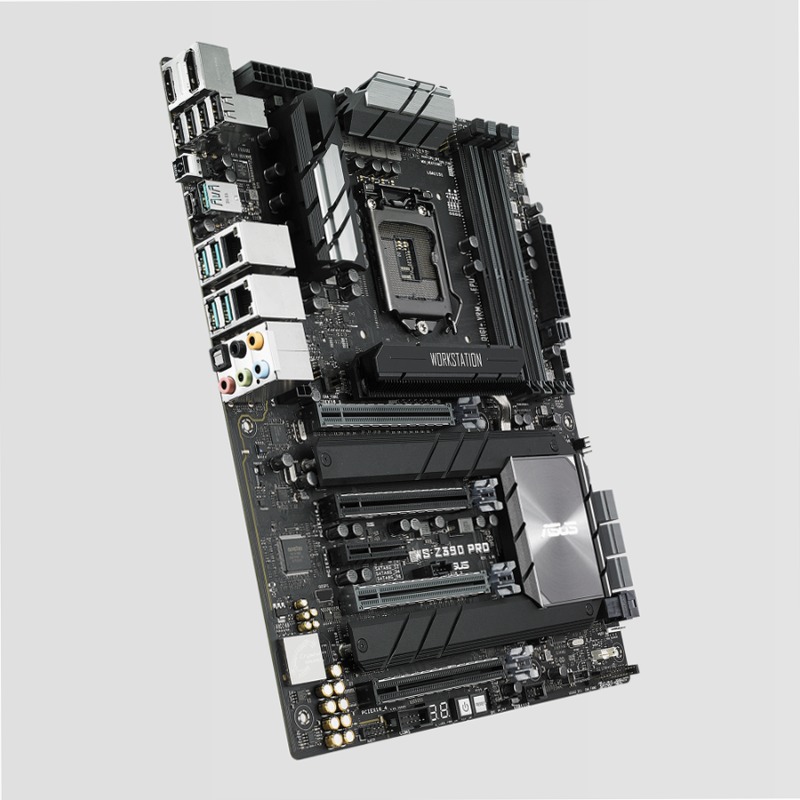

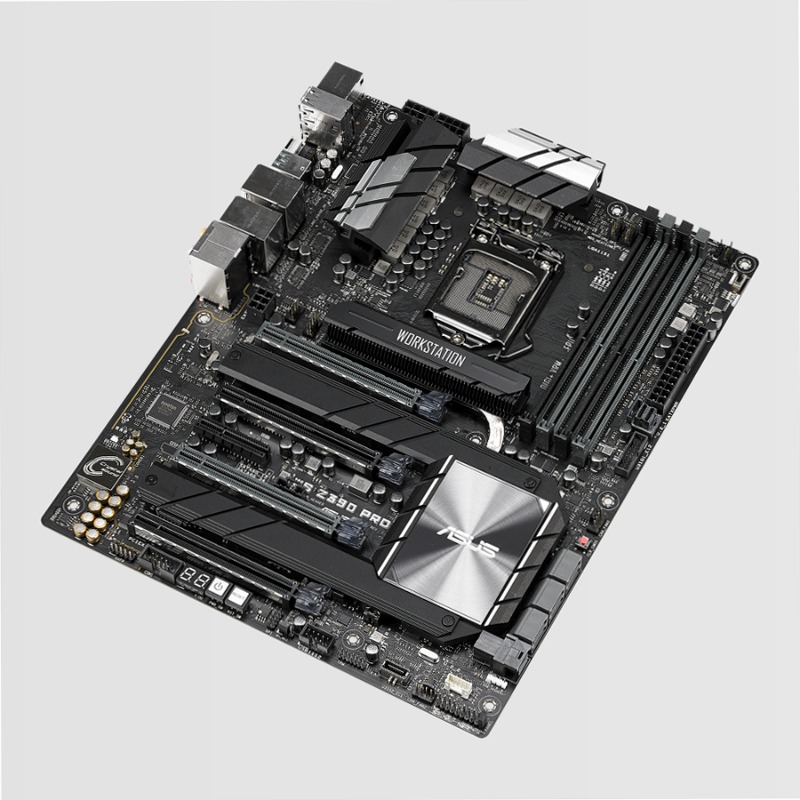

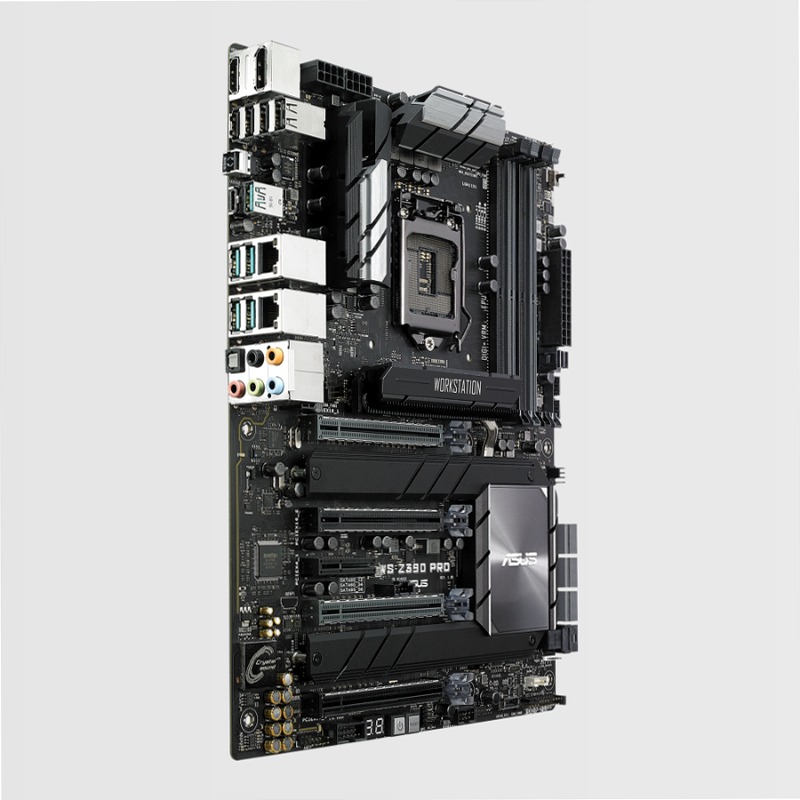

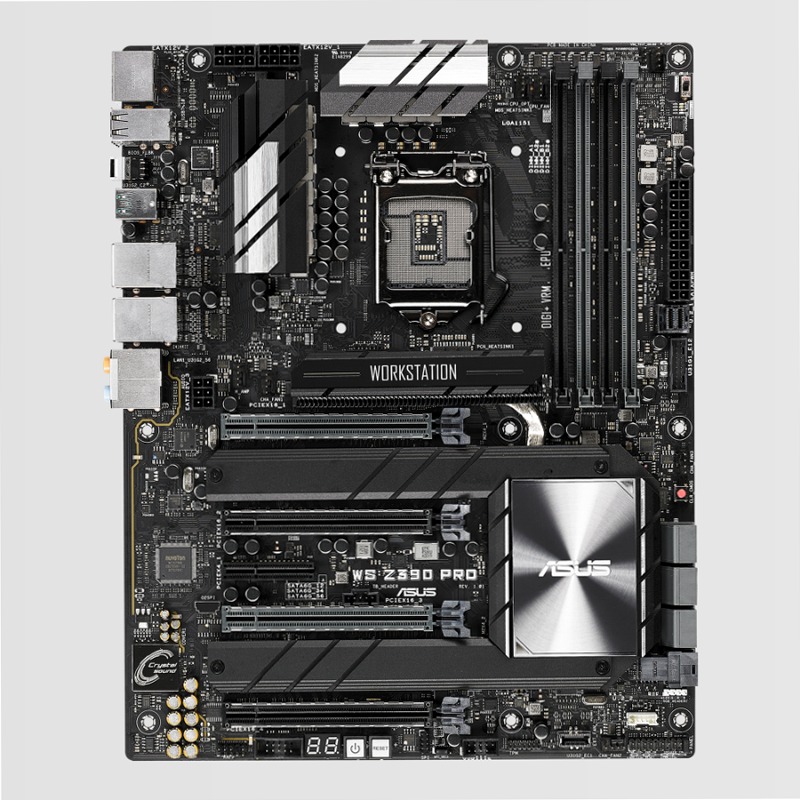

Scheda madre Intel ATX LGA 1151 con AI Overclocking, supporto quad-GPU, DDR4 4266 MHz, Dual M.2, predisposizione per memoria Intel Optane, SATA 6Gb/s, connettori USB Type 2 C-Type 2 C e pannello frontale

Supporta Quad-GPU: può contenere fino a quattro schede grafiche a doppio slot e supporta configurazioni di GPU NVIDIA® SLI ™ o AMD CrossFireX ™.
Overclocking AI: ottimizza rapidamente le prestazioni della CPU in base alla CPU e al raffreddamento, ottenendo risultati estremamente vicini alla messa a punto manuale da parte di esperti.
OptiMem II: instradamento accurato di tracce e vie, oltre a ottimizzazioni ground layer per preservare l'integrità del segnale per migliorare l'overclocking della memoria
Soluzione potenziata: i componenti Premium offrono una migliore efficienza energetica
UEFI BIOS: le nuove opzioni UEFI includono una funzione di ricerca che consente di trovare facilmente le impostazioni
Opzioni di raffreddamento leader del settore: controlli completi per ventole e pompa dell'acqua, tramite Fan Xpert 4 o UEFI acclamata
Doppio dissipatore M.2: il dissipatore ultra efficiente riduce la temperatura dell'unità SSD M.2 per velocità di trasferimento non limitate e maggiore affidabilità
Memoria ultrarapida: doppio M.2 e U.2, più USB 3.1 Gen 2 con porte Type-A e Type-C integrate e connettore frontale.

Modello	WS Z390 PRO
CPU	Intel® Socket 1151for 9 th / 8 th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors,Supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.,Supports Intel® 14nm CPU,* Refer to www.asus.com for CPU support list
Chipset	Intel® Z390
Memoria	4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Memory,Supports Intel® Extreme Memory Profile (XMP),* Hyper DIMM support is subject to the physical characteristics of individual CPUs.,Dual Channel Memory Architecture,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Grafica	Integrated Graphics Processor- Intel® HD Graphics support,- Supports HDMI 2.0 with max. resolution 4096 x 2160 @ 60 / 24Hz* 1 ,- Supports DisplayPort with max. resolution 4096 x 2304 @ 24Hz / 4096 x 2304 @ 60Hz,- Supports High Dynamic Range(HDR),Wide Color Gamut(Rec.2020),HDCP 2.2,Maximum shared memory of 1024 MB (for iGPU exclusively),Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™,Supports up to 2 displays simultaneously,DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays,Multi-VGA output support : HDMI/DisplayPort ports
Supporto Multi-GPU	*Supports NVIDIA® Quad-GPU SLI™ Technology 2 ,Supports NVIDIA® 4-Way SLI™ Technology * 2 ,Supports AMD Quad-GPU CrossFireX™ Technology * 2 ,Supports AMD 4-Way CrossFireX Technology * 2**
Slot di Espansione	4 x PCIe 3.0 x16 (single at x16, dual at x16/x16 mode, triple at x16/x8/x8 mode or quad x8/x8/x8/x8 mode),1 x PCIe x4 (max at x4 mode)
Storage	2 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)* 3 ,,2 x U.2 connector,,Intel® Optane™ Memory Ready * 4 ,Support Raid 0, 1, 5, 10,Intel® Rapid Storage Technology supports,6 x SATA 6Gb/s port(s)
LAN	Intel® I210-AT, 1 x Gigabit LAN Controller(s),Intel® I219-LM , 1 x Gigabit LAN,Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance,ASUS Turbo LAN Utility
Audio	Realtek® ALC S1220A8-Channel High Definition Audio CODEC featuring Crystal Sound 3,- Supports : Jack-detection, Multi-streaming,120dBSNR stereo playback outputand113dBSNR recording input(Line-in),- DTS Connect,- Power pre-regulator: Reduces power input noise to ensure consistent performance,Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity,- DTS Headphone:X,- Impedance sense for front and rear headphone outputs, Audio Feature : ,- Optical S/PDIF out port(s) at back panel,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs,- EMI protection cover to prevent electrical noise to affect the amplifier quality,Separate layer for left and right track, ensuring both sound deliver equal quality
Porte USB	6 x USB 3.1 Gen 2 port(s) (6 at back panel, ), Intel® Z390 Chipset : ,6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board),2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-C TM ),2 x USB 3.1 Gen 1 port(s), ASMedia® USB 3.1 Gen 2 controller :
Caratteristiche Speciali	OC Design - ASUS PRO Clock Technology ,- Full BCLK range for extreme overclocking performance,- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages., ASUS Optimem II： , ASUS Digital Power Design : ,- Industry leading Digital 8 + 2 Phase CPU Power Design,- Industry leading Digital 2 Phase DRAM Power Design,- Crystal Sound 3,- EZ XMP ASUS Exclusive Features, Special Memory O.C. Design , Performance Optimization : ,- DIGI + VRM,- GPU Boost,- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control, Turbo App , Key Express , M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) , MemOK! II ,- Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time),- Stylish Design Heat-pipe solution,- Stylish Fanless Design with M.2 Heat-sink solution,- ASUS Q-Connector,- ASUS Q-Code, 5-Way Optimization by Dual Intelligent Processors 5 ,- Improved DDR4 Stability, ASUS Exclusive Features :,- Ai Charger,- Turbo LAN, ASUS Quiet Thermal Solution :,- ASUS Fan Xpert 4, ASUS Q-Design : ,- ASUS Q-Shield,- ASUS Q-Slot,- ASUS Q-DIMM,- AI Suite 3

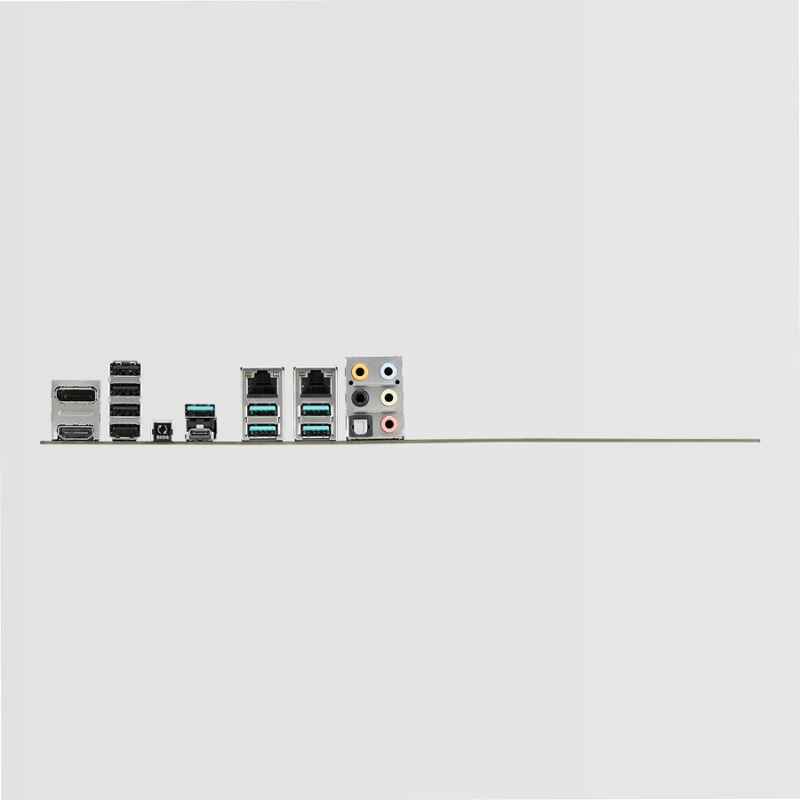

Porte I/O Posteriori	6 x USB 3.1 Gen 2 (5 x Type-A+1 x Type-C),4 x USB 2.0 (one port can be switched to USB BIOS Flashback),1 x 8-channel Audio I/O,1 x USB BIOS Flashback Button(s),1 x DisplayPort,1 x HDMI,2 x LAN (RJ45) port(s)
I/O Interne	1 x USB 3.1 Gen2 connector support additional 2 USB ports(1 device, 2 xType-A or Type-C),1 x USB 2.0 1-port connector(s) support(s) additional 2 USB 2.0 port(s),2 x M.2 Socket 3,1 x TPM header,1 x 6-pin EATX 12V Power connector,1 x System panel(s) (Q-Connector),1 x 5-pin EXT_FAN(Extension Fan) connector,1 x RGB Header,1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),1 x Thunderbolt header(s),2 x 8-pin EATX 12V Power connectors,1 x MemOK! II switch(es),2 x U.2 connector,6 x SATA 6Gb/s connector(s),1 x H_AMP fan connector,1 x Power-on button(s),1 x Reset button(s),1 x W_PUMP+ connector,1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),3 x Chassis Fan connector(s),1 x COM port header,1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP)
Accessori	ASUS Q-Shield,1 x 2-Way SLI bridge(s),1 x COM port cable(s),2 x M.2 Screw Package,1 x 3-Way SLI bridge(s),1 x 4-Way SLI bridge(s),1 x 2-port USB 2.0 module(s),1 x CPU installation tool,6 x SATA 6Gb/s cable(s),1 x Q-Connector,1 x Extension Cable for RGB strips (80 cm),User´s manual,1 x Supporting DVD
BIOS	256 Mb Flash ROM, UEFI BIOS, PnP, WfM2.0, SMBIOS 3.0 , ACPI 6.0, ASUS EZ Flash Utility, ASUS CrashFree Technology
Gestibilità	WfM 2.0, DMI 3.0, WOL by PME, PXE
Sistema Operativo	*Windows® Server 2016 64 bit,Windows® Server 2012 R2 64 bit,Windows® 10 64 bit RS3,Subject to change without any notice**
Dimensioni Scheda	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ),ATX Form Factor
Note	1 HDMI 2.0 60Hz resolution support requires necessary drivers update. 2 Actual number of Multi-graphic supported differs per Vendors´ Graphic cards. Please check with Vendor beforehand. 3 M2X4_1 socket shares lane with the SATA6G_56 connector: When using the M2X4_1 socket is PCIe or SATA device, the SATA_56 connector will be disabled.When using the SATA_56 connector, no device must be connected to the M2X4_1 connector. M2X4_2 socket shares lane with the U.2_2 and SATA6G_12 connector: When using the M2X4_2 socket is PCIe or SATA device, the U.2_2 connector will be disabled. When using the M2X4_2 socket is SATA device, the SATA6G_12 connector will be disabled.When using the U.2_2 connector, no device must be connected to the M2X4_2 socket. 4 Intel® Optane Technology is only supported when using 8/9th GEN CPU,but Celeron and Pentium Processors don’t support Optane Memory. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.

Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset Intel. Intel, modello da WS Z390 PRO, cpu da Intel® Socket 1151for 9 th / 8 th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors,Supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.,Supports Intel® 14nm CPU,* Refer to www.asus.com for CPU support list e chipset da Intel® Z390, elementi che ne valorizzano dotazione, prestazioni e fruibilita complessiva
