Pro WS C246-ACE - Specifiche Generali｜Schede Madri｜ASUS Italia Intel – 11099
Descrizione
Specifiche dettagliate di Pro WS C246-ACE Specifiche Generali，CPU:Intel® Socket 1151For Xeon ® E-2200/E-2100 family9th / 8th Gen Intel ® Core™, Pentium ® Gold and Celeron ® Processors,* The Intel® Turbo Boost Technology 2. 0 support depends on the CPU types.、CPU:Intel® Socket 1151For Xeon ® E-2200/E-2100 family9th / 8th Gen Intel ® Core™, Pentium ® Gold and Celeron ® Processors,* The Intel® Turbo Boost Technology 2. 0 support depends on the CPU types.、Chipset:Build in Intel® C246、Chipset:Build in Intel® C246、Memoria:4 x DIMM, Max.
128GB, DDR4 2666/2400/2133 MHz ECC and non-ECC Memory,* The maximum memory frequency supported varies by processor,** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.,Supports Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to www. Asus. Com for the Memory QVL (Qualified Vendors Lists).、Memoria:4 x DIMM, Max. 128GB, DDR4 2666/2400/2133 MHz ECC and non-ECC Memory,* The maximum memory frequency supported varies by processor,** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.,Supports Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to www. Asus. Com for the Memory QVL (Qualified Vendors Lists).、Grafica:Maximum shared memory of 2048 MB (for iGPU exclusively),- Supports HDMI 1. 4b with max. Resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz,Integrated Graphics Processor- Intel® UHD Graphics support,Multi-VGA output support : HDMI/DisplayPort ports,- Supports DisplayPort 1. 2 with max. Resolution 4096 x 2160 @ 60 Hz、Grafica:Maximum shared memory of 2048 MB (for iGPU exclusively),- Supports HDMI 1. 4b with max. Resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz,Integrated Graphics Processor- Intel® UHD Graphics support,Multi-VGA output support : HDMI/DisplayPort ports,- Supports DisplayPort 1. 2 with max. Resolution 4096 x 2160 @ 60 Hz、Supporto Multi-GPU:Supports AMD 2-Way CrossFireX Technology 、Supporto Multi-GPU:Supports AMD 2-Way CrossFireX Technology、Slot di Espansione:1 x PCIe 3. 0/2. 0 x16 (max at x2 mode),2 x PCIe 3. 0/2. 0 x16 (x16 or dual x8),2 x PCIe 3. 0/2. 0 x1、Slot di Espansione:1 x PCIe 3. 0/2. 0 x16 (max at x2 mode),2 x PCIe 3. 0/2. 0 x16 (x16 or dual x8),2 x PCIe 3. 0/2. 0 x1、Storage: Intel® C246 Chipset : ,1 x M. 2_1 socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3. 0 x 4 mode),1 x M. 2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3. 0 x 2 mode),1 x U. 2 connector* 2 ,Support Raid 0, 1, 5, 10,Intel® Rapid Storage Technology supports,4 x SATA 6Gb/s port(s)、Storage: Intel® C246 Chipset : ,1 x M. 2_1 socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3. 0 x 4 mode),1 x M. 2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3. 0 x 2 mode),1 x U. 2 connector* 2 ,Support Raid 0, 1, 5, 10,Intel® Rapid Storage Technology supports,4 x SATA 6Gb/s port(s)、LAN:Intel® I219-LM , 1 x Gigabit LAN Controller(s),Intel® I210-AT, 1 x Gigabit LAN Controller(s),ASUS Turbo LAN Utility,ASUS LAN Guard、LAN:Intel® I219-LM , 1 x Gigabit LAN Controller(s),Intel® I210-AT, 1 x Gigabit LAN Controller(s),ASUS Turbo LAN Utility,ASUS LAN Guard、Audio:- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking,Realtek® ALC S1220A8-Channel High Definition Audio CODEC featuring Crystal Sound 3,- Power pre-regulator reduces power input noise to ensure consistent performance,- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers,- Impedance sense for front and rear headphone outputs, Audio Feature : ,- Optical S/PDIF out port(s) at back panel,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs、Audio:- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking,Realtek® ALC S1220A8-Channel High Definition Audio CODEC featuring Crystal Sound 3,- Power pre-regulator reduces power input noise to ensure consistent performance,- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers,- Impedance sense for front and rear headphone outputs, Audio Feature : ,- Optical S/PDIF out port(s) at back panel,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs、Porte USB: Intel® C246 Chipset : ,4 x USB 3. 2 Gen 2 port(s) (4 at back panel, , 3 x Type-A, 2 at mid-board),6 x USB 2. 0 port(s),4 x USB 2. 0 port(s) (4 at mid-board)、Porte USB: Intel® C246 Chipset : ,4 x USB 3. 2 Gen 2 port(s) (4 at back panel, , 3 x Type-A, 2 at mid-board),6 x USB 2. 0 port(s),4 x USB 2. 0 port(s) (4 at mid-board)、Caratteristiche Speciali:- Stylish Fanless Design Heat-sink solution & MOS Heatsink, M. 2 and U. 2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M. 2 and U. 2) , ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS NODE: hardware control interface,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection, ASUS EPU : ,- EPU, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger,- Turbo LAN,- Armoury Crate, ASUS Quiet Thermal Solution :,- ASUS Fan Xpert 4, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM、Caratteristiche Speciali:- Stylish Fanless Design Heat-sink solution & MOS Heatsink, M. 2 and U. 2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M. 2 and U. 2) , ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS NODE: hardware control interface,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection, ASUS EPU : ,- EPU, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger,- Turbo LAN,- Armoury Crate, ASUS Quiet Thermal Solution :,- ASUS Fan Xpert 4, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM、Porte I/O Posteriori:4 x USB 3. 1 Gen 1 (blue),3 x USB 3. 1 Gen 2 (teal blue)Type-A,,1 x USB 3. 1 Gen 2 Type-C,1 x DisplayPort,1 x HDMI,2 x LAN (RJ45) port(s),1 x Optical S/PDIF out,5 x Audio jack(s)、Porte I/O Posteriori:4 x USB 3. 1 Gen 1 (blue),3 x USB 3. 1 Gen 2 (teal blue)Type-A,,1 x USB 3. 1 Gen 2 Type-C,1 x DisplayPort,1 x HDMI,2 x LAN (RJ45) port(s),1 x Optical S/PDIF out,5 x Audio jack(s)、I/O Interne:3 x Chassis Fan connector(s) (),1 x M. 2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & x2 PCIE mode),1 x U. 2 connector,2 x 8-pin ATX 12V Power connector(s),1 x AIO PUMP Header,1 x USB 3. 1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3. 1 Gen 1 port(s) (19-pin),1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3. 0 x 4 mode),1 x AAFP connector,1 x Thermal sensor connector(s),1 x Node Connector(s),1 x System panel connector,1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),1 x COM port header,2 x USB 2. 0 connector(s) support(s) additional 4 USB 2. 0 port(s),4 x SATA 6Gb/s connector(s),1 x 24-pin EATX Power connector(s),1 x Clear CMOS jumper(s)、I/O Interne:3 x Chassis Fan connector(s) (),1 x M. 2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & x2 PCIE mode),1 x U. 2 connector,2 x 8-pin ATX 12V Power connector(s),1 x AIO PUMP Header,1 x USB 3. 1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3. 1 Gen 1 port(s) (19-pin),1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3. 0 x 4 mode),1 x AAFP connector,1 x Thermal sensor connector(s),1 x Node Connector(s),1 x System panel connector,1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),1 x COM port header,2 x USB 2. 0 connector(s) support(s) additional 4 USB 2. 0 port(s),4 x SATA 6Gb/s connector(s),1 x 24-pin EATX Power connector(s),1 x Clear CMOS jumper(s)、Accessori:User´s manual,I/O Shield,1 x M. 2 Screw Package,1 x Supporting DVD、Accessori:User´s manual,I/O Shield,1 x M. 2 Screw Package,1 x Supporting DVD、BIOS:128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3. 1, ACPI 6. 1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information、BIOS:128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3. 1, ACPI 6. 1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information、Sistema Operativo:Windows® 10 64-bit、Sistema Operativo:Windows® 10 64-bit、Dimensioni Scheda:12 inch x 9. 6 inch ( 30. 5 cm x 24. 4 cm ),ATX Form Factor、Dimensioni Scheda:12 inch x 9. 6 inch ( 30. 5 cm x 24. 4 cm ),ATX Form Factor…
| Modello | Pro WS C246-ACE |
| CPU | Intel® Socket 1151For Xeon ® E-2200/E-2100 family9th / 8th Gen Intel ® Core™, Pentium ® Gold and Celeron ® Processors,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Build in Intel® C246 |
| Memoria | 4 x DIMM, Max. 128GB, DDR4 2666/2400/2133 MHz ECC and non-ECC Memory,* The maximum memory frequency supported varies by processor,** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.,Supports Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Grafica | Maximum shared memory of 2048 MB (for iGPU exclusively),- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz,Integrated Graphics Processor- Intel® UHD Graphics support,Multi-VGA output support : HDMI/DisplayPort ports,- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Supporto Multi-GPU | Supports AMD 2-Way CrossFireX Technology |
| Slot di Espansione | 1 x PCIe 3.0/2.0 x16 (max at x2 mode),2 x PCIe 3.0/2.0 x16 (x16 or dual x8),2 x PCIe 3.0/2.0 x1 |
| Intel® C246 Chipset : | ,1 x M.2_1 socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode),1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode),1 x U.2 connector* 2 ,Support Raid 0, 1, 5, 10,Intel® Rapid Storage Technology supports,4 x SATA 6Gb/s port(s) |
| LAN | Intel® I219-LM , 1 x Gigabit LAN Controller(s),Intel® I210-AT, 1 x Gigabit LAN Controller(s),ASUS Turbo LAN Utility,ASUS LAN Guard |
| Audio | Feature : |
| Caratteristiche Speciali | - Stylish Fanless Design Heat-sink solution & MOS Heatsink, M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) , ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS NODE: hardware control interface,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection, ASUS EPU : ,- EPU, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger,- Turbo LAN,- Armoury Crate, ASUS Quiet Thermal Solution :,- ASUS Fan Xpert 4, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM |

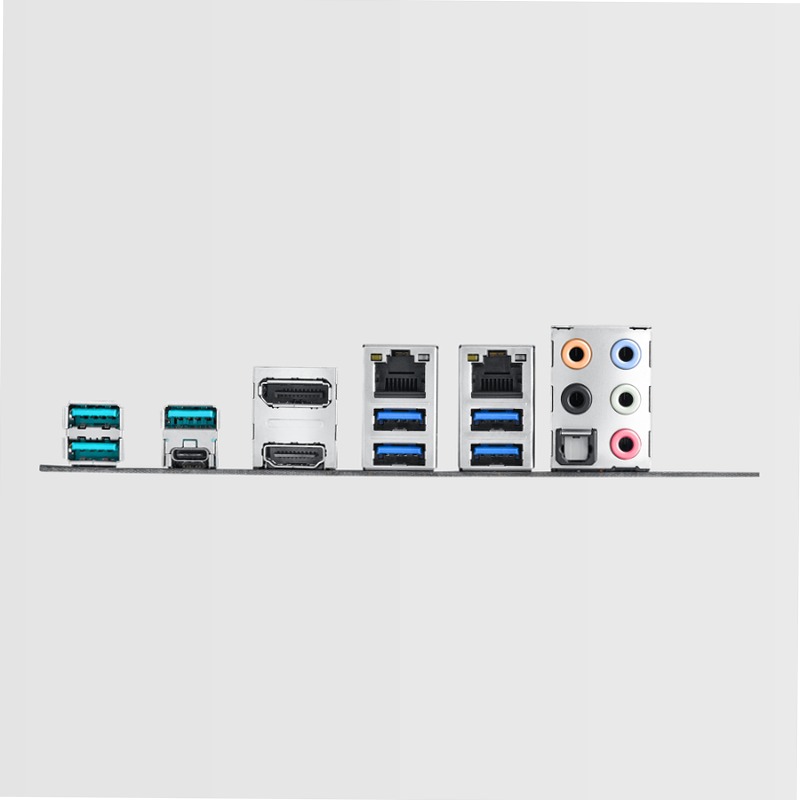

| Porte I/O Posteriori | 4 x USB 3.1 Gen 1 (blue),3 x USB 3.1 Gen 2 (teal blue)Type-A,,1 x USB 3.1 Gen 2 Type-C,1 x DisplayPort,1 x HDMI,2 x LAN (RJ45) port(s),1 x Optical S/PDIF out,5 x Audio jack(s) |
| I/O Interne | 3 x Chassis Fan connector(s) (),1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & x2 PCIE mode),1 x U.2 connector,2 x 8-pin ATX 12V Power connector(s),1 x AIO PUMP Header,1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode),1 x AAFP connector,1 x Thermal sensor connector(s),1 x Node Connector(s),1 x System panel connector,1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),1 x COM port header,2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),4 x SATA 6Gb/s connector(s),1 x 24-pin EATX Power connector(s),1 x Clear CMOS jumper(s) |

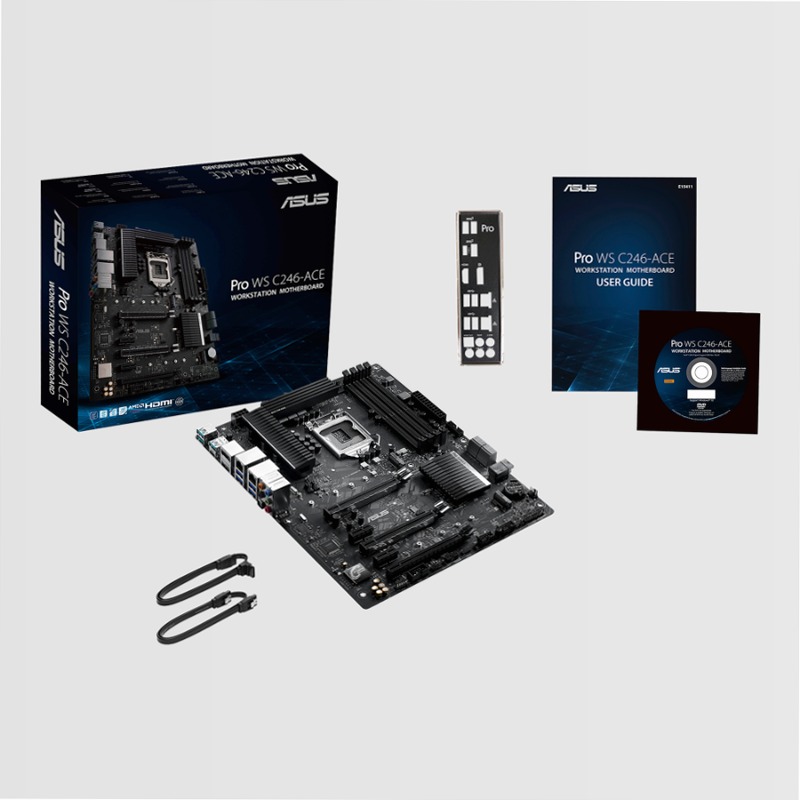

| Accessori | User´s manual,I/O Shield,1 x M.2 Screw Package,1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Sistema Operativo | Windows® 10 64-bit |
| Dimensioni Scheda | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ),ATX Form Factor |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset Intel. Intel, modello da Pro WS C246-ACE, cpu da Intel® Socket 1151For Xeon ® E-2200/E-2100 family9th / 8th Gen Intel ® Core™, Pentium ® Gold and Celeron ® Processors,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. e chipset da Build in Intel® C246, elementi che ne valorizzano dotazione, prestazioni e fruibilita complessiva
| Sku | 11099 |
| Mpn | 11099 |
| Chipset | Intel |
Pro WS C246-ACE｜Schede Madri｜ASUS Italia e un prodotto da valutare con attenzione perche le evidenze live raccolte mostrano una presenza ancora attuale sul mercato. La lettura piu interessante riguarda soprattutto i suoi punti di forza, che aiutano a capire per quale tipo di acquisto puo avere davvero senso.
Punti di forza
- Pro WS C246-ACE｜Schede Madri｜ASUS Italia Passa al contenuto Aiuto accessibilità Gaming Business Non ci sono articoli nel carrello. Shop on ASUS store SHOP AI Notebook Mobile / Console Desktop / Display / AIO Schede Madri / Componenti Networking / IoT / Server Accessori OFFERTE MEMBER FESTIVAL - Risparmia Ora! Omaggio.
- Si colloca nella categoria Schede madri con un posizionamento orientato a chi cerca un prodotto curato, aggiornato e competitivo nella sua fascia.
- Le fonti raccolte online mostrano un interesse attuale e una presenza editoriale ancora rilevante, segnale utile per chi vuole acquistare un prodotto seguito e discusso anche fuori dalla scheda ufficiale.
Criticita
Non emergono criticita ricorrenti documentate con sufficiente chiarezza nelle fonti raccolte.
Perche comprarlo
Vale l'acquisto per chi cerca Schede madri con brand forte, presenza online attuale e una valutazione complessiva di 4.0/5, soprattutto se l'obiettivo e puntare su una proposta solida e ben posizionata.
