Pro H810T-CSM - Specifiche Generali｜Schede Madri｜ASUS Italia Intel – 32214
Descrizione
ASUS Pro H810T-CSM: Elevate your IT operations with top-tier security, ultrafast PCIe 5.
0, and ASUS Control Center for seamless management.
| Modello | Pro H810T-CSM |
| News & Updates | Please see the updated OS support requirements for the Intel ® Core Ultra 200S series below: •Intel ® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel ® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check and download the latest updates. |
| CPU | Supports Intel ® Core™ Ultra Processors (Series 2) , LGA1851** Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** *CPU only support up to 65W ** Refer to for CPU support list. *** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel ® H810 Chipset |
| Memory | 2 x SO-DIMM slots, max. 128GB, DDR5 Support up to 6400+MT/s, Non-ECC, Un-buffered DIMM* Dual channel memory architecture * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** 1 x LVDS connector * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Total supports 1 x M.2 slot and 2 x SATA 6Gb/s ports Intel ® Core™ Ultra Processors (Series 2) | M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel ® H810 Chipset 2 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
| Rear USB (Total 4 ports) | 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C ® )* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C ® power delivery output: max. 5V/3A |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

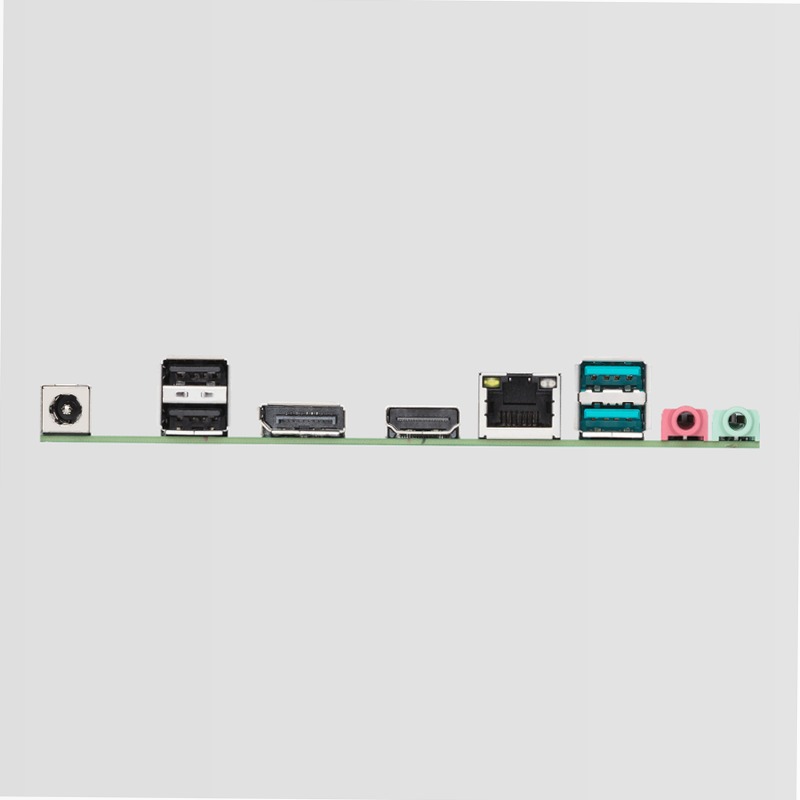

| Back Panel I/O Ports | 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 2 x Audio jacks 1 x DC power connector (supports 19V) |
| I/O ConnectorsFan and Cooling Related | 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 2-pin +19V Power connector 1 x SATA power connector Storage Related 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports AIO System Related 1 x Stereo Speaker header 1 x DMIC header Flat Panel Related 1 x Backlight Inverter Voltage Selection header 1 x FPD Brightness header 1 x Panel Voltage Selection header 1 x Panel Off header Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x COM Debug header 1 x LVDS connector 1 x M.2 slot (Key E) 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header |
| ASUS Q-Design | - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box headers Bespoke Motherboard Design & Business Focused Features - ASUS Self-Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS Kit* - BIOS EZ Deploy - Anti-moisture coating - 24/7 reliability - Overcurrent protection - G-sensor TXT support * Please contact local FAE for Commercial BIOS kit. ASUS Q-Design - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box headers Bespoke Motherboard Design & Business Focused Features - ASUS Self-Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS Kit* - BIOS EZ Deploy - Anti-moisture coating - 24/7 reliability - Overcurrent protection - G-sensor TXT support(Level1-3) * Please contact local FAE for Commercial BIOS kit. |
| ASUS Exclusive Software | ASUS DriverHub UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS MyHotkey |
| Remote Management Features | IT Management software supported - ASUS Control Center Express(ACCE) |
| BIOS | 128 +128Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

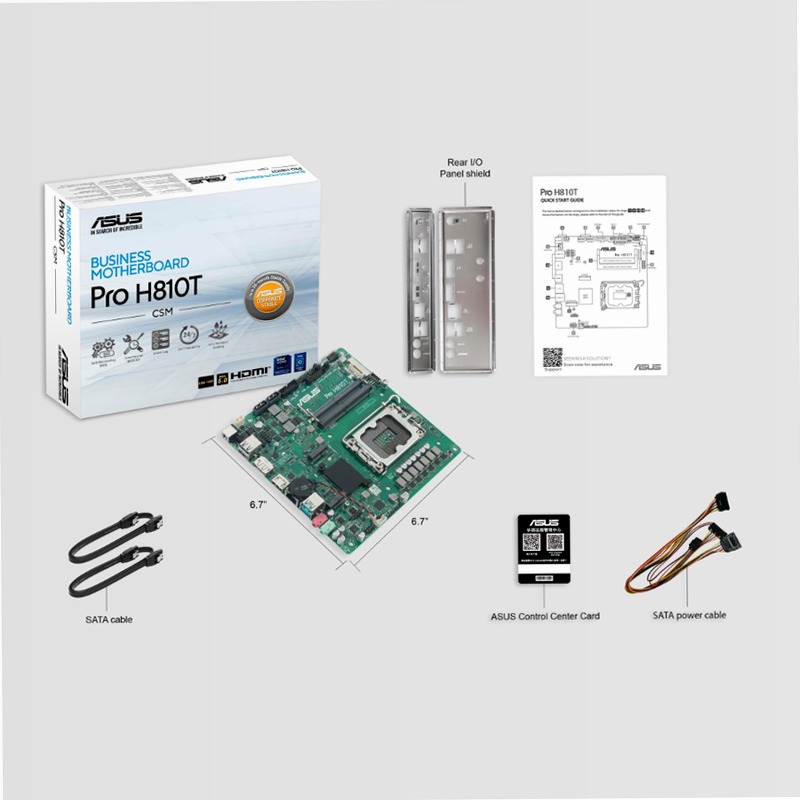

| Cables | 2 x SATA 6Gb/s cables 1 x SATA power cable Miscellaneous 2 x I/O shields Documentation 1 x ACC Express activation key card 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later) |
| Form Factor | Thin Mini-ITX Form Factor 6.7”x 6.7” (17.0cm x 17.0cm) |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset Intel. Intel, modello da Pro H810T-CSM, news & updates da Please see the updated OS support requirements for the Intel ® Core Ultra 200S series
| Sku | 32214 |
| Mpn | 32214 |
| Chipset | Intel |
Pro H810T-CSM｜Schede Madri｜ASUS Italia e un prodotto da valutare con attenzione perche le evidenze live raccolte mostrano una presenza ancora attuale sul mercato. La lettura piu interessante riguarda soprattutto i suoi punti di forza, che aiutano a capire per quale tipo di acquisto puo avere davvero senso.
