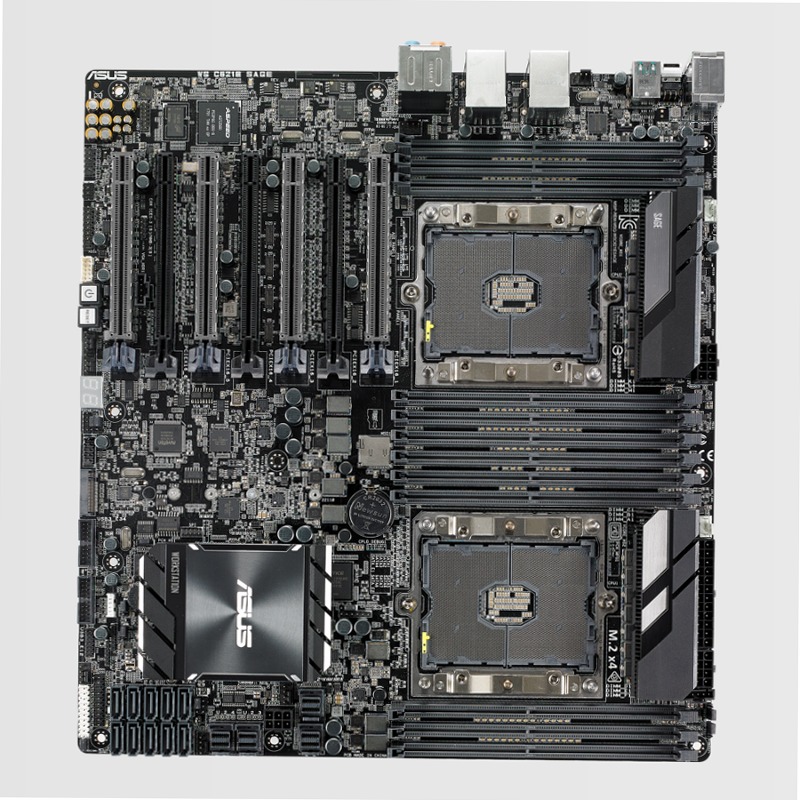

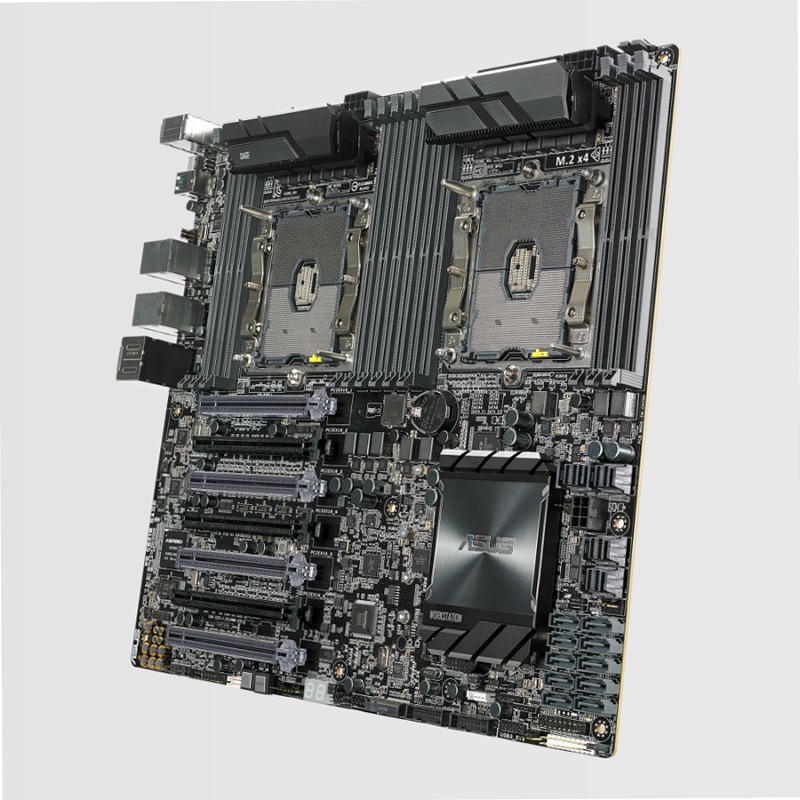

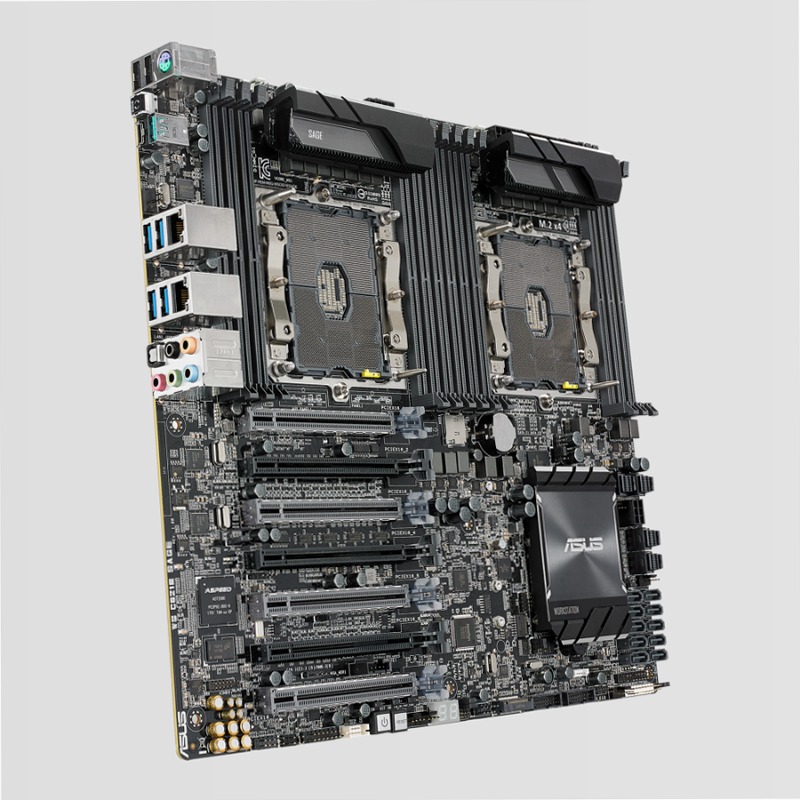

Specifiche dettagliate di WS C621E SAGE Specifiche Generali，CPU:Dual Intel® Socket P (LGA 3647) for Intel® Xeon® Scalable Processors Family (205W),* Refer to www. Asus. Com for CPU support list、CPU:Dual Intel® Socket P (LGA 3647) for Intel® Xeon® Scalable Processors Family (205W),* Refer to www.

Asus. Com for CPU support list、Chipset:Build in Intel® C621、Chipset:Build in Intel® C621、Memoria:12 x DIMM, Max. 768GB, DDR4 2666/2400 MHz RDIMM, LR-DIMM Memory,* Please refer to ASUS AVL for the latest update.,* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.、Memoria:12 x DIMM, Max. 768GB, DDR4 2666/2400 MHz RDIMM, LR-DIMM Memory,* Please refer to ASUS AVL for the latest update.,* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.、Grafica:VGA port(Optional),- Supports VGA with max. Resolution 1920 x 1200 @ 60 Hz,Aspeed AST2500 with 64MB VRAM,Integrated Graphics Processor、Grafica:VGA port(Optional),- Supports VGA with max. Resolution 1920 x 1200 @ 60 Hz,Aspeed AST2500 with 64MB VRAM,Integrated Graphics Processor、Supporto Multi-GPU:Supports NVIDIA® 4-Way SLI™ Technology * 1 ,Supports AMD 4-Way CrossFireX Technology * 1 、Supporto Multi-GPU:Supports NVIDIA® 4-Way SLI™ Technology * 1 ,Supports AMD 4-Way CrossFireX Technology * 1 、Slot di Espansione:3 x PCIe 3. 0 x16 (x16 mode),2 x PCIe 3. 0 x16 (x8 mode),2 x PCIe 3. 0 x16 (Single at x16, dual at x8/x8)、Slot di Espansione:3 x PCIe 3. 0 x16 (x16 mode),2 x PCIe 3. 0 x16 (x8 mode),2 x PCIe 3. 0 x16 (Single at x16, dual at x8/x8)、Storage:4 x U. 2 connector,,1 x M. 2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode), Intel® C621 Chipset : ,Support Raid 0, 1, 5, 10, ASMedia® SATA 6Gb/s controller : ,2 x SATA 6Gb/s port(s),,8 x SATA 6Gb/s port(s),、Storage:4 x U. 2 connector,,1 x M. 2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode), Intel® C621 Chipset : ,Support Raid 0, 1, 5, 10, ASMedia® SATA 6Gb/s controller : ,2 x SATA 6Gb/s port(s),,8 x SATA 6Gb/s port(s),、LAN:Intel® I210-AT, 2 x Gigabit LAN Controller(s)、LAN:Intel® I210-AT, 2 x Gigabit LAN Controller(s)、Audio:Realtek® S1220A7. 1-Channel High Definition Audio CODEC * 2 ,- High qualitySNR stereo playback outputand113dBSNR recording input(Line-in),- DTS Connect,- Power pre-regulator reduces power input noise to ensure consistent performance,- DTS Headphone:X,- Supports up to 32-Bit/192kHz playback,- Impedance sense for front and rear headphone outputs,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking,- Front panel audio connector (AAFP), Audio Feature : ,- Optical S/PDIF out port(s) at back panel,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs、Audio:Realtek® S1220A7. 1-Channel High Definition Audio CODEC * 2 ,- High qualitySNR stereo playback outputand113dBSNR recording input(Line-in),- DTS Connect,- Power pre-regulator reduces power input noise to ensure consistent performance,- DTS Headphone:X,- Supports up to 32-Bit/192kHz playback,- Impedance sense for front and rear headphone outputs,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking,- Front panel audio connector (AAFP), Audio Feature : ,- Optical S/PDIF out port(s) at back panel,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs、Porte USB:2 x USB port(s) (2 at back panel, , Type-A + USB Type-C TM ),8 x USB 3. 1 Gen 1 port(s) (4 at back panel, , 4 at mid-board),4 x USB 2. 0 port(s) (2 at back panel, , 2 at mid-board), Intel® C621 Chipset : , ASMedia® USB 3. 1 Gen 2 controller : 、Porte USB:2 x USB port(s) (2 at back panel, , Type-A + USB Type-C TM ),8 x USB 3. 1 Gen 1 port(s) (4 at back panel, , 4 at mid-board),4 x USB 2. 0 port(s) (2 at back panel, , 2 at mid-board), Intel® C621 Chipset : , ASMedia® USB 3. 1 Gen 2 controller : 、Workstation Feature:USB BIOS Flashback,ASUS PIKE SAS upgrade kit* 3 ,ProCool Power Connector、Workstation Feature:USB BIOS Flashback,ASUS PIKE SAS upgrade kit* 3 ,ProCool Power Connector、Caratteristiche Speciali:- Industry leading Digital 7 + 1 Phase CPU Power Design,- Front Panel USB 3. 0 Support, ASUS Digital Power Design : ,- Industry leading Digital 2 Phase DRAM Power Design, M. 2 and U. 2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M. 2 and U. 2) , Gamer´s Guardian: ,- ASUS Q-Code,- Digi+ VRM,- SafeSlot, ASUS Exclusive Features :, ASUS Q-Design : ,- ASUS Q-Shield,- ASUS Q-DIMM、Caratteristiche Speciali:- Industry leading Digital 7 + 1 Phase CPU Power Design,- Front Panel USB 3. 0 Support, ASUS Digital Power Design : ,- Industry leading Digital 2 Phase DRAM Power Design, M. 2 and U. 2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M. 2 and U. 2) , Gamer´s Guardian: ,- ASUS Q-Code,- Digi+ VRM,- SafeSlot, ASUS Exclusive Features :, ASUS Q-Design : ,- ASUS Q-Shield,- ASUS Q-DIMM、Porte I/O Posteriori:2 x USB 3. 1 Gen 2 * 4 ,4 x USB 2. 0,4 x USB 3. 1 Gen 1 ,,1 x 8-channel Audio I/O,1 x USB BIOS Flashback Button(s),1 x PS/2 keyboard/mouse combo port(s),2 x LAN (RJ45) port(s),1 x Optical S/PDIF out、Porte I/O Posteriori:2 x USB 3. 1 Gen 2 * 4 ,4 x USB 2. 0,4 x USB 3. 1 Gen 1 ,,1 x 8-channel Audio I/O,1 x USB BIOS Flashback Button(s),1 x PS/2 keyboard/mouse combo port(s),2 x LAN (RJ45) port(s),1 x Optical S/PDIF out、I/O Interne:10 x SATA 6Gb/s connector(s),2 x CPU Fan connector(s) (2 x 4-pin),7 x Chassis Fan connector(s) * 5 ,2 x 8-pin EATX 12V Power connector,1 x SMBus header(s),1 x 6-pin EATX 12V_3 Power connector,4 x U. 2 Connector (support U. 2 NVMe device),1 x VGA connector(s),1 x AUX panel header(s),1 x M. 2 Socket 3,1 x TPM header,1 x USB 2. 0 connector(s) support(s) additional 2 USB 2. 0 port(s),1 x VROC_HW_Key,2 x USB 3. 1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3. 1 Gen 1 port(s),1 x System panel connector,1 x COM port(s) connector(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP)、I/O Interne:10 x SATA 6Gb/s connector(s),2 x CPU Fan connector(s) (2 x 4-pin),7 x Chassis Fan connector(s) * 5 ,2 x 8-pin EATX 12V Power connector,1 x SMBus header(s),1 x 6-pin EATX 12V_3 Power connector,4 x U. 2 Connector (support U. 2 NVMe device),1 x VGA connector(s),1 x AUX panel header(s),1 x M. 2 Socket 3,1 x TPM header,1 x USB 2. 0 connector(s) support(s) additional 2 USB 2. 0 port(s),1 x VROC_HW_Key,2 x USB 3. 1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3. 1 Gen 1 port(s),1 x System panel connector,1 x COM port(s) connector(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP)、Dimensioni Scheda:12 inch x 13 inch ( 30. 5 cm x 33 cm ),EEB Form Factor、Dimensioni Scheda:12 inch x 13 inch ( 30. 5 cm x 33 cm ),EEB Form Factor、Note:* Dual Intel® Socket P/LGA 3647 (Square) *1 Actual number of multi-graphic support differes per Vendors´ graphic cards. Please check with vendor beforehand. *2 Due to limitation in HDA bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows 10 *3 Please check AVL list for supported add on card *4 1 x Type A, 1 x Type C *5 5 x Front, 2 x Rear、Note:* Dual Intel® Socket P/LGA 3647 (Square) *1 Actual number of multi-graphic support differes per Vendors´ graphic cards. Please check with vendor beforehand. *2 Due to limitation in HDA bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows 10 *3 Please check AVL list for supported add on card *4 1 x Type A, 1 x Type C *5 5 x Front, 2 x Rear…
