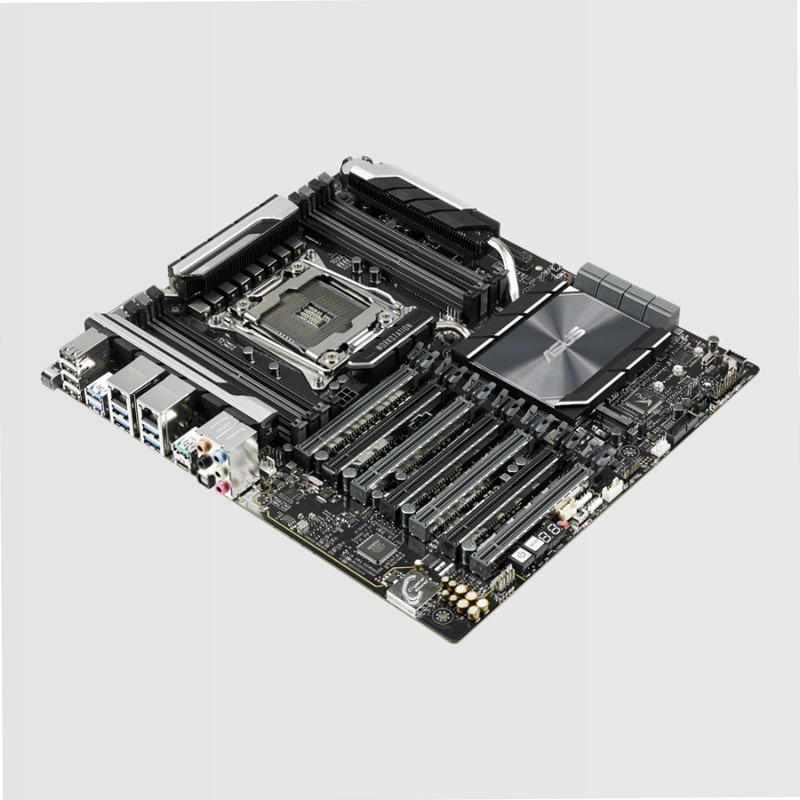

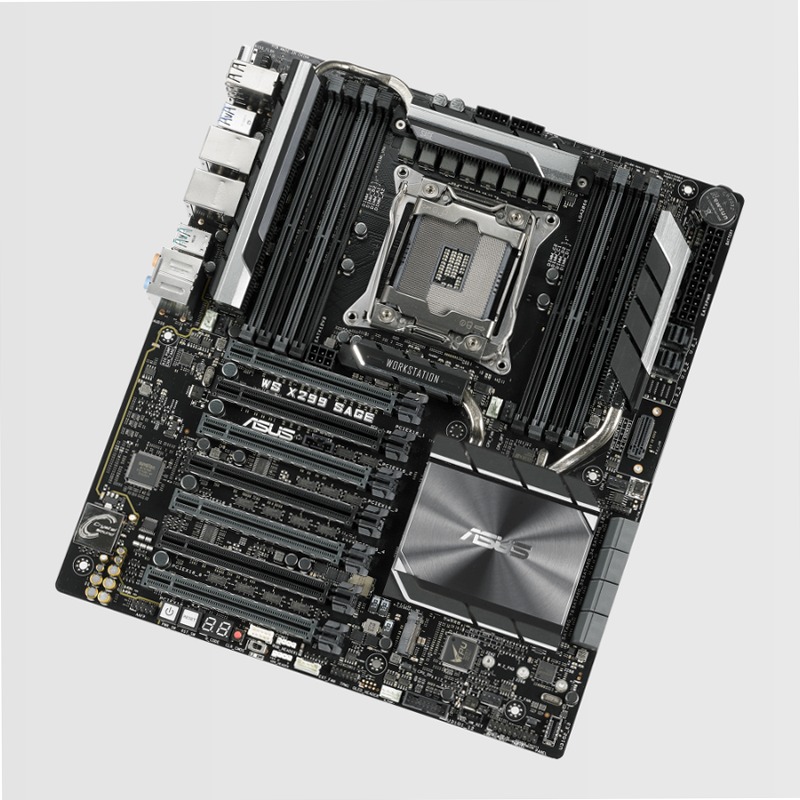

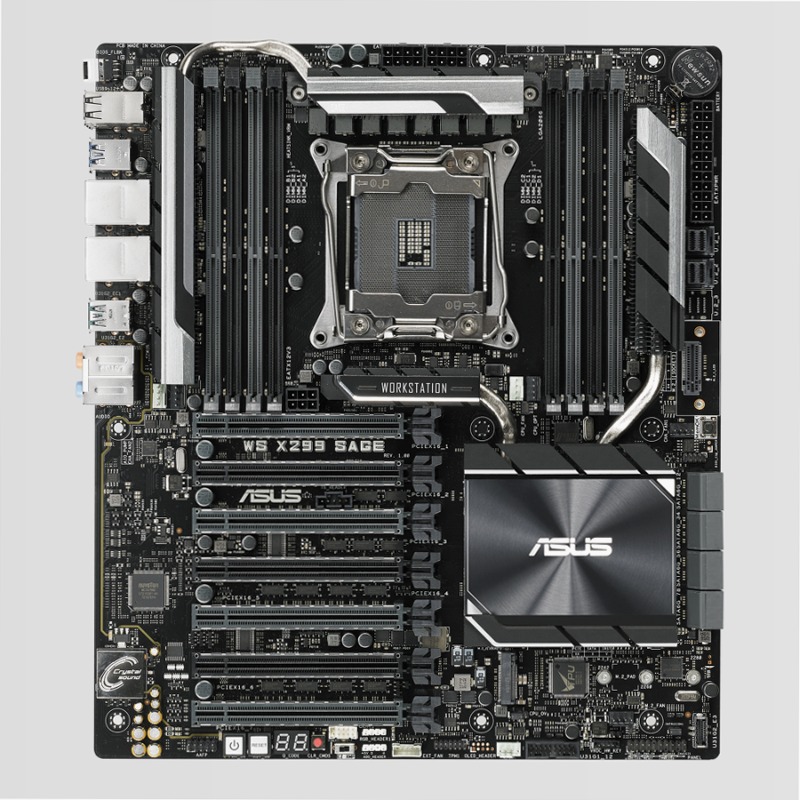

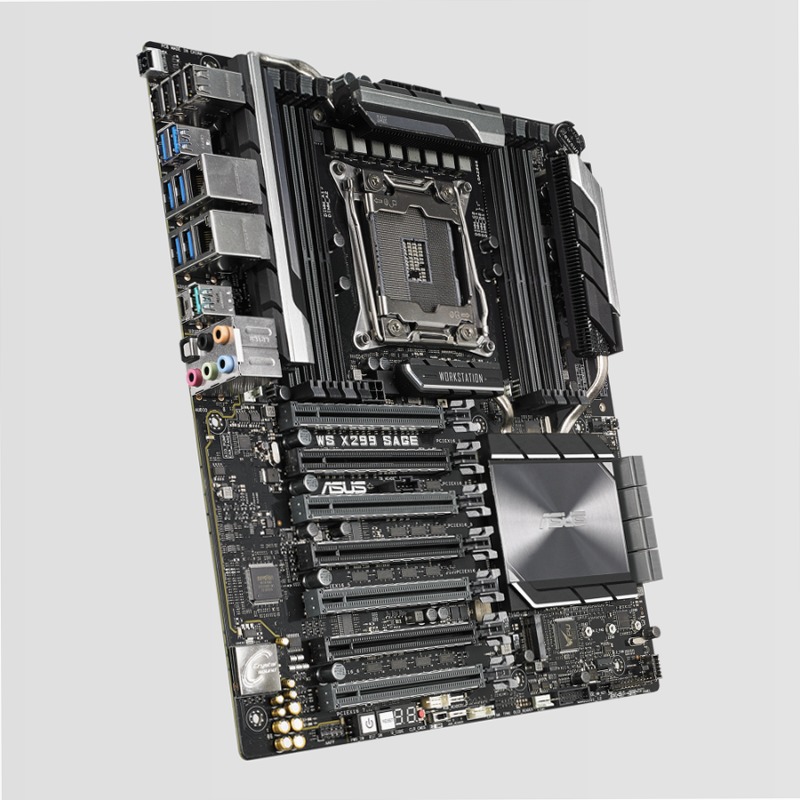

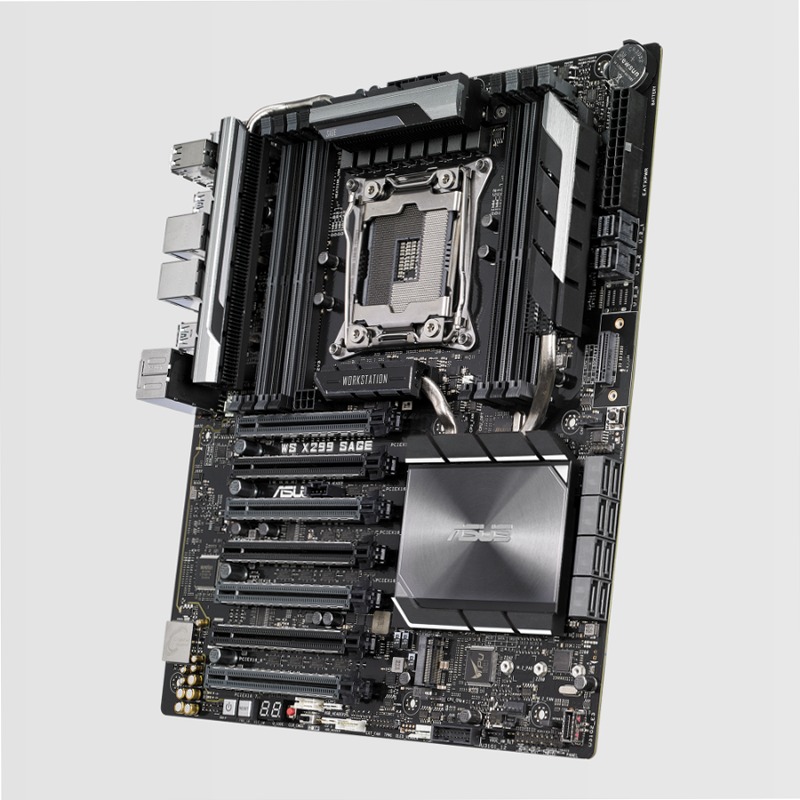

WS X299 SAGE - Specifiche Generali｜Schede Madri｜ASUS Italia Intel – 9835

Specifiche dettagliate di WS X299 SAGE Specifiche Generali，CPU:* The Intel® Turbo Boost Max Technology 3. 0 support depends on the CPU types,Intel® Socket 2066 Core™ X-Series Processors,Supports Intel® Virtual RAID on CPU (VROC),* Refer to www. Asus.

Com for CPU support list、CPU:* The Intel® Turbo Boost Max Technology 3. 0 support depends on the CPU types,Intel® Socket 2066 Core™ X-Series Processors,Supports Intel® Virtual RAID on CPU (VROC),* Refer to www. Asus. Com for CPU support list、Chipset:Intel® X299、Chipset:Intel® X299、Memoria:8 x DIMM, Max. 128GB, DDR4 4200(O. C.)/4133(O. C.)/4000(O. C.)/3600(O. C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Intel® Core™ X-series Processors (4-core) ,4 x DIMM, Max. 64GB, DDR4 4200(O. C.)/4133(O. C.)/4000(O. C.)/3600(O. C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory,* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU., Intel® Core™ X-series Processors (6-core above) ,Supports Intel® Extreme Memory Profile (XMP),* Hyper DIMM support is subject to the physical characteristics of individual CPUs.、Memoria:8 x DIMM, Max. 128GB, DDR4 4200(O. C.)/4133(O. C.)/4000(O. C.)/3600(O. C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Intel® Core™ X-series Processors (4-core) ,4 x DIMM, Max. 64GB, DDR4 4200(O. C.)/4133(O. C.)/4000(O. C.)/3600(O. C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory,* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU., Intel® Core™ X-series Processors (6-core above) ,Supports Intel® Extreme Memory Profile (XMP),* Hyper DIMM support is subject to the physical characteristics of individual CPUs.、Supporto Multi-GPU:Supports NVIDIA® 4-Way SLI™ Technology,Supports AMD 4-Way CrossFireX Technology、Supporto Multi-GPU:Supports NVIDIA® 4-Way SLI™ Technology,Supports AMD 4-Way CrossFireX Technology、Slot di Espansione:7 x PCIe 3. 0/2. 0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) 、Slot di Espansione:7 x PCIe 3. 0/2. 0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) 、Storage:Support Intel ® Rapid Storage Technology enterprise 5. 1 for X-Series(6-core and above) CPU RAID,Supports Intel® Smart Response Technology,Intel® Rapid Storage Technology 15 support,1 x M. 2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3. 0 x 4 mode),1 x M. 2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3. 0 x 4 mode), Intel® X299 Chipset : ,2 x U. 2 connector* 1 ,Support Raid 0, 1, 5, 10,Intel® Optane™ Memory Ready,Intel® Virtual RAID (VROC) support for CPU RAID,8 x SATA 6Gb/s port(s)、Storage:Support Intel ® Rapid Storage Technology enterprise 5. 1 for X-Series(6-core and above) CPU RAID,Supports Intel® Smart Response Technology,Intel® Rapid Storage Technology 15 support,1 x M. 2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3. 0 x 4 mode),1 x M. 2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3. 0 x 4 mode), Intel® X299 Chipset : ,2 x U. 2 connector* 1 ,Support Raid 0, 1, 5, 10,Intel® Optane™ Memory Ready,Intel® Virtual RAID (VROC) support for CPU RAID,8 x SATA 6Gb/s port(s)、LAN:Intel® I219-LM , 1 x Gigabit LAN Controller(s),Intel® I210-AT, 1 x Gigabit LAN Controller(s)、LAN:Intel® I219-LM , 1 x Gigabit LAN Controller(s),Intel® I210-AT, 1 x Gigabit LAN Controller(s)、Audio:- Audio amplifier: Provides the highest-quality sound for headphone and speakers,- High quality120dBSNR stereo playback output(Line-out at rear)and113dB(Line-in),Realtek® ALC S1220A7. 1-Channel High Definition Audio CODEC,- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking,- DTS Connect,- DTS Headphone:X,- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers,- Impedance sense for front and rear headphone outputs, Audio Feature : ,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs,Separate layer for left and right track, ensuring both sound deliver equal quality、Audio:- Audio amplifier: Provides the highest-quality sound for headphone and speakers,- High quality120dBSNR stereo playback output(Line-out at rear)and113dB(Line-in),Realtek® ALC S1220A7. 1-Channel High Definition Audio CODEC,- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking,- DTS Connect,- DTS Headphone:X,- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers,- Impedance sense for front and rear headphone outputs, Audio Feature : ,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs,Separate layer for left and right track, ensuring both sound deliver equal quality、Porte USB:8 x USB 3. 1 Gen 1 port(s) (6 at back panel, , 2 at mid-board),4 x USB 2. 0 port(s) (4 at back panel, ),1 x USB 3. 1 Gen 2 port(s) (1 at mid-board), Intel® X299 Chipset : ,2 x USB 3. 1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C TM ), ASMedia® USB 3. 1 Gen 2 controller : 、Porte USB:8 x USB 3. 1 Gen 1 port(s) (6 at back panel, , 2 at mid-board),4 x USB 2. 0 port(s) (4 at back panel, ),1 x USB 3. 1 Gen 2 port(s) (1 at mid-board), Intel® X299 Chipset : ,2 x USB 3. 1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C TM ), ASMedia® USB 3. 1 Gen 2 controller : 、Caratteristiche Speciali:- Industry leading Digital 8 Phase CPU Power Design,- Ai Charger+,- ASUS USB BIOS Flashback,Asus Control Center (ACC) IT management software supported,- Multi-language BIOS, ASUS Digital Power Design : ,- Industry leading Digital 2 Phase DRAM Power Design,- Crystal Sound 3, M. 2 and U. 2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M. 2 and U. 2) ,- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App, OC Design - ASUS PRO Clock II Technology ,- ASUS CrashFree BIOS,- ASUS EZ Flash,- Aura Addressable Strip Header(s), ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS Q-Connector, TPU ,- ASUS Q-Code, AURA : ,- Aura RGB Strip Headers, 5-Way Optimization by Dual Intelligent Processors 5 , Fan Xpert4 ,- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection, ASUS EPU : ,- EPU, ASUS Exclusive Features :,- AI Suite 3, ASUS EZ DIY : , ASUS Q-Design : ,- ASUS Q-Shield,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM、Caratteristiche Speciali:- Industry leading Digital 8 Phase CPU Power Design,- Ai Charger+,- ASUS USB BIOS Flashback,Asus Control Center (ACC) IT management software supported,- Multi-language BIOS, ASUS Digital Power Design : ,- Industry leading Digital 2 Phase DRAM Power Design,- Crystal Sound 3, M. 2 and U. 2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M. 2 and U. 2) ,- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App, OC Design - ASUS PRO Clock II Technology ,- ASUS CrashFree BIOS,- ASUS EZ Flash,- Aura Addressable Strip Header(s), ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS Q-Connector, TPU ,- ASUS Q-Code, AURA : ,- Aura RGB Strip Headers, 5-Way Optimization by Dual Intelligent Processors 5 , Fan Xpert4 ,- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection, ASUS EPU : ,- EPU, ASUS Exclusive Features :,- AI Suite 3, ASUS EZ DIY : , ASUS Q-Design : ,- ASUS Q-Shield,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM、Operating System Support:Windows® 10 64-bit、Operating System Support:Windows® 10 64-bit、Porte I/O Posteriori:1 x USB 3. 1 Gen 2 (black)USB Type-C TM ,6 x USB 3. 1 Gen 1 (blue) ,,1 x USB 3. 1 Gen 2 (teal blue)Type-A,,4 x USB 2. 0 (one port can be switched to USB BIOS Flashback),1 x 8-channel Audio I/O,1 x USB BIOS Flashback Button(s),2 x LAN (RJ45) port(s),1 x Optical S/PDIF out、Porte I/O Posteriori:1 x USB 3. 1 Gen 2 (black)USB Type-C TM ,6 x USB 3. 1 Gen 1 (blue) ,,1 x USB 3. 1 Gen 2 (teal blue)Type-A,,4 x USB 2. 0 (one port can be switched to USB BIOS Flashback),1 x 8-channel Audio I/O,1 x USB BIOS Flashback Button(s),2 x LAN (RJ45) port(s),1 x Optical S/PDIF out、I/O Interne:2 x U. 2 port,1 x 6-pin ATX Power connector,2 x 8-pin ATX 12V Power connector(s),1 x EZ XMP switch,1 x MemOK! Button,1 x CPU_OV jumper,1 x USB 3. 1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3. 1 Gen 1 port(s),1 x Aura RGB Strip Header,1 x TPM header,1 x 5-pin EXT_FAN(Extension Fan) connector,1 x Aura Addressable Strip Header(s),1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3. 0 x 4 mode),1 x VROC_HW_Key,1 x Thunderbolt header(s),1 x M. 2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3. 0 x 4 mode),1 x Water Pump header (4-pin),1 x USB 3. 1 Gen 2 front panel connector,1 x Power-on button(s),1 x Reset button(s),1 x Thermal sensor connector,1 x AAFP connector,2 x Chassis Fan connector(s),1 x System panel connector,1 x M. 2 Fan Header,8 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),1 x AIO_PUMP connector,1 x COM port(s) connector(s),1 x 24-pin EATX Power connector(s)、I/O Interne:2 x U. 2 port,1 x 6-pin ATX Power connector,2 x 8-pin ATX 12V Power connector(s),1 x EZ XMP switch,1 x MemOK! Button,1 x CPU_OV jumper,1 x USB 3. 1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3. 1 Gen 1 port(s),1 x Aura RGB Strip Header,1 x TPM header,1 x 5-pin EXT_FAN(Extension Fan) connector,1 x Aura Addressable Strip Header(s),1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3. 0 x 4 mode),1 x VROC_HW_Key,1 x Thunderbolt header(s),1 x M. 2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3. 0 x 4 mode),1 x Water Pump header (4-pin),1 x USB 3. 1 Gen 2 front panel connector,1 x Power-on button(s),1 x Reset button(s),1 x Thermal sensor connector,1 x AAFP connector,2 x Chassis Fan connector(s),1 x System panel connector,1 x M. 2 Fan Header,8 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),1 x AIO_PUMP connector,1 x COM port(s) connector(s),1 x 24-pin EATX Power connector(s)、Accessori:8 x SATA 6Gb/s cable(s),1 x M. 2 screws,1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan),ASUS Q-Shield,1 x COM port cable(s),1 x 3-Way SLI bridge(s),1 x 4-Way SLI bridge(s),1 x Vertical M. 2 bracket set,1 x SLI HB BRIDGE(2-WAY-M),1 x Q-Connector,User´s manual,1 x Supporting DVD、Accessori:8 x SATA 6Gb/s cable(s),1 x M. 2 screws,1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan),ASUS Q-Shield,1 x COM port cable(s),1 x 3-Way SLI bridge(s),1 x 4-Way SLI bridge(s),1 x Vertical M. 2 bracket set,1 x SLI HB BRIDGE(2-WAY-M),1 x Q-Connector,User´s manual,1 x Supporting DVD、Dimensioni Scheda:CEB Form Factor,12 inch x 10. 5 inch ( 30. 5 cm x 26. 7 cm )、Dimensioni Scheda:CEB Form Factor,12 inch x 10. 5 inch ( 30. 5 cm x 26. 7 cm )、Peso:Color Box(3-in-1) Net Weight: 5. 55kg Gross Weight: 8. 06kg Bulk Pack(5-in-1) Net Weight: 6. 99kg Gross Weight: 9. 37kg、Peso:Color Box(3-in-1) Net Weight: 5. 55kg Gross Weight: 8. 06kg Bulk Pack(5-in-1) Net Weight: 6. 99kg Gross Weight: 9. 37kg、Ambiente:Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) 、Ambiente:Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) 、Note:*Intel® VROC is supported via RSTe, and Intel® VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel® VROC_HW_key installed. PCIEX16_1 to PCIEx16_3 & PCIEX16_4 to PCIEx16_7 support Intel® VROC separately. *1. The U. 2 connectors are only supported on 44-Lane CPUs.、Note:*Intel® VROC is supported via RSTe, and Intel® VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel® VROC_HW_key installed. PCIEX16_1 to PCIEx16_3 & PCIEX16_4 to PCIEx16_7 support Intel® VROC separately. *1. The U. 2 connectors are only supported on 44-Lane CPUs.…
