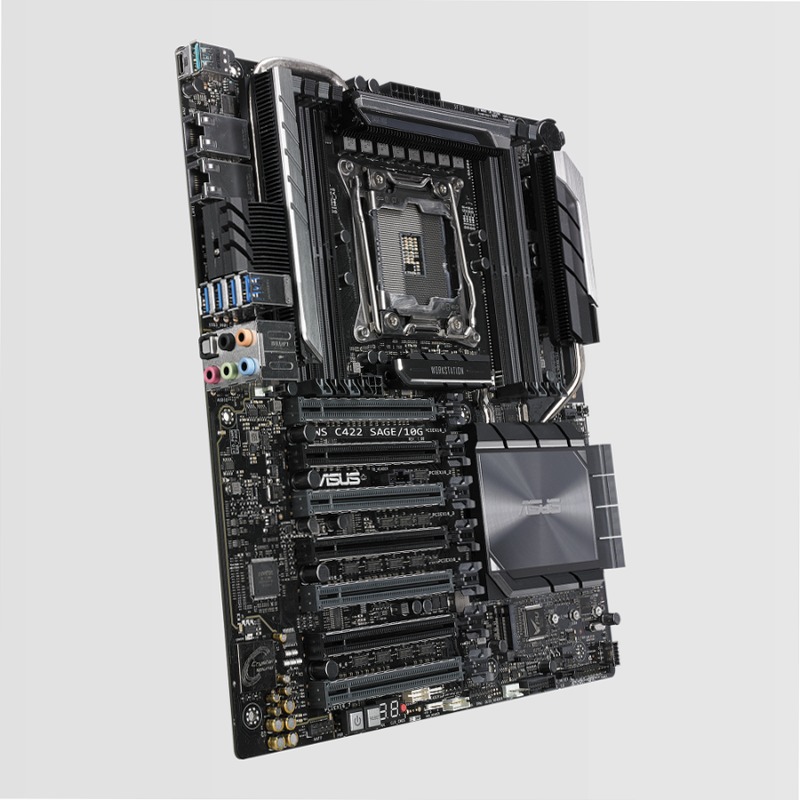

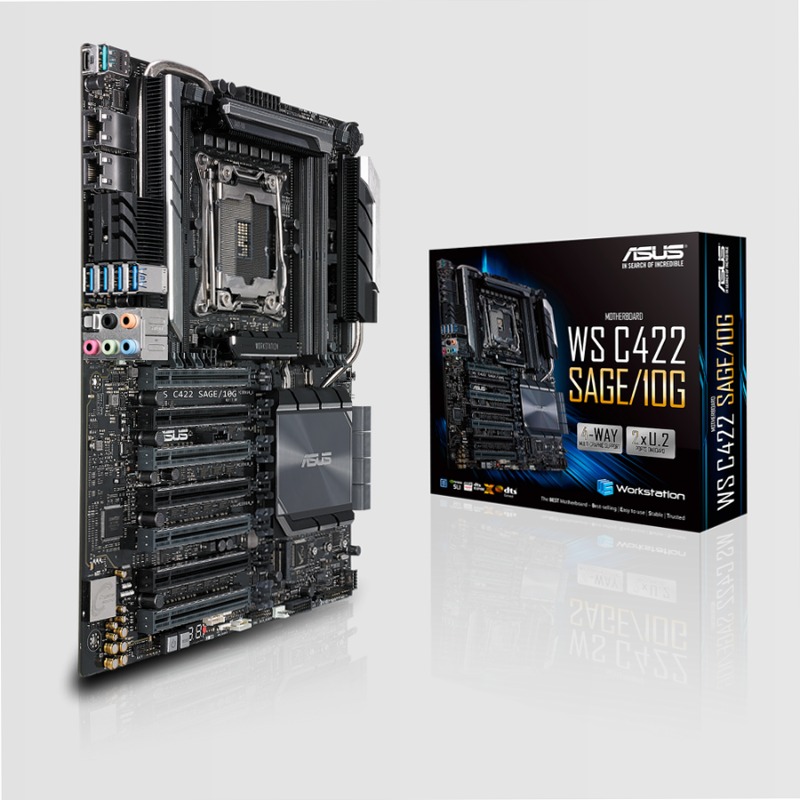

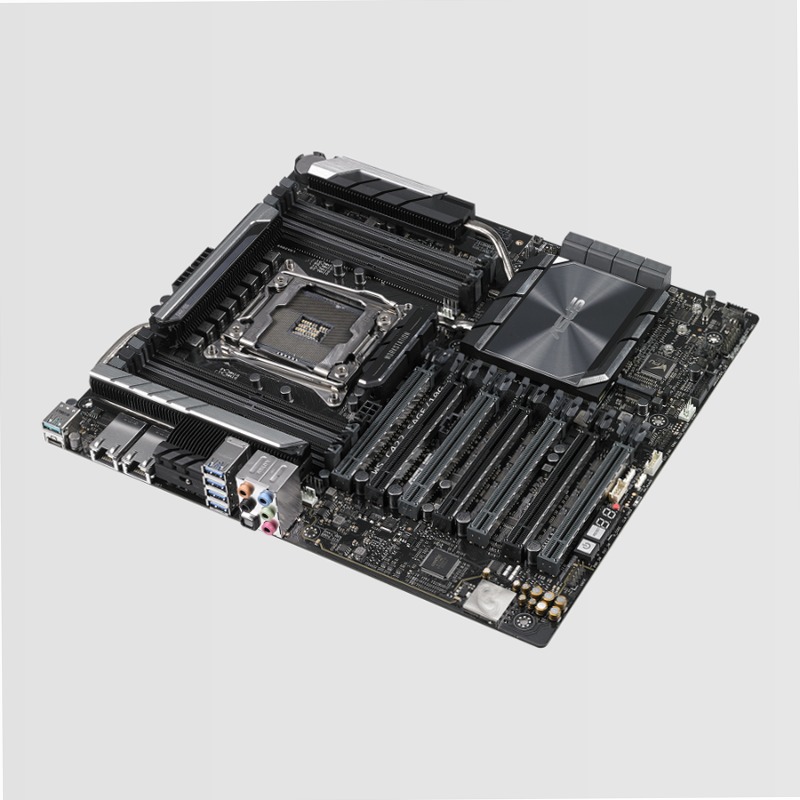

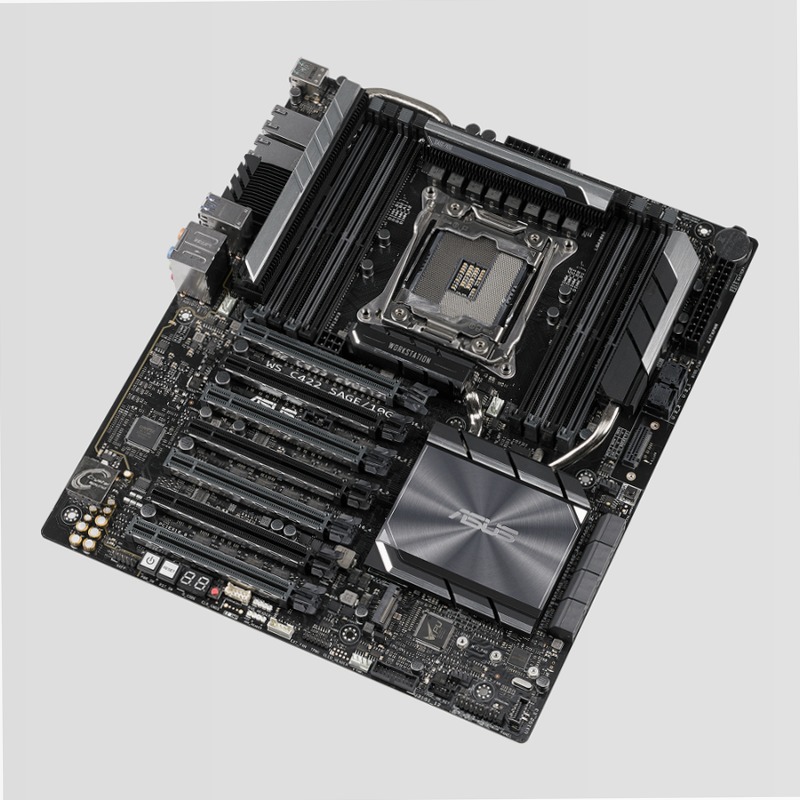

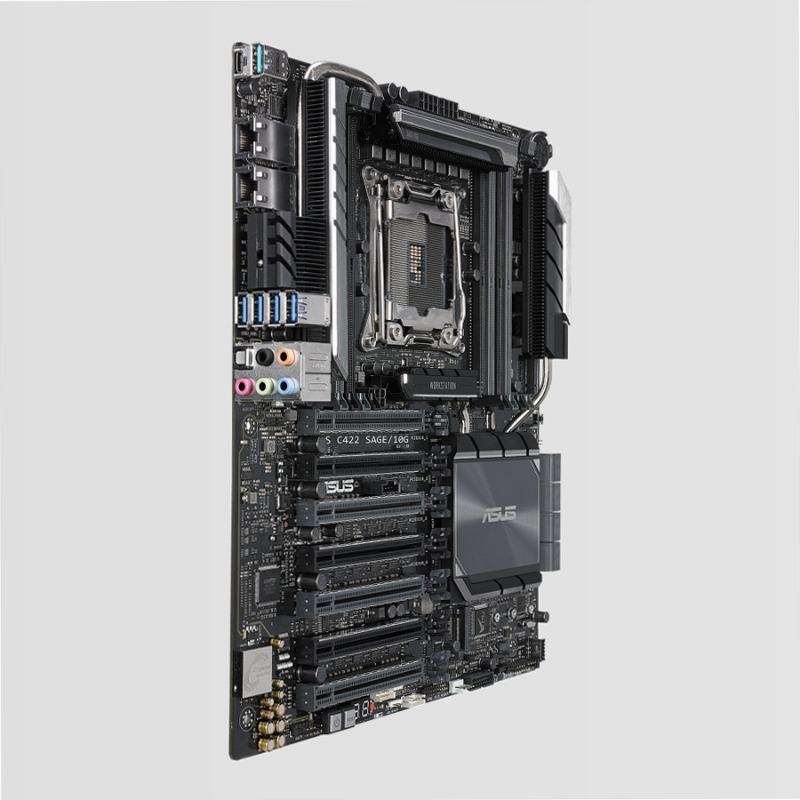

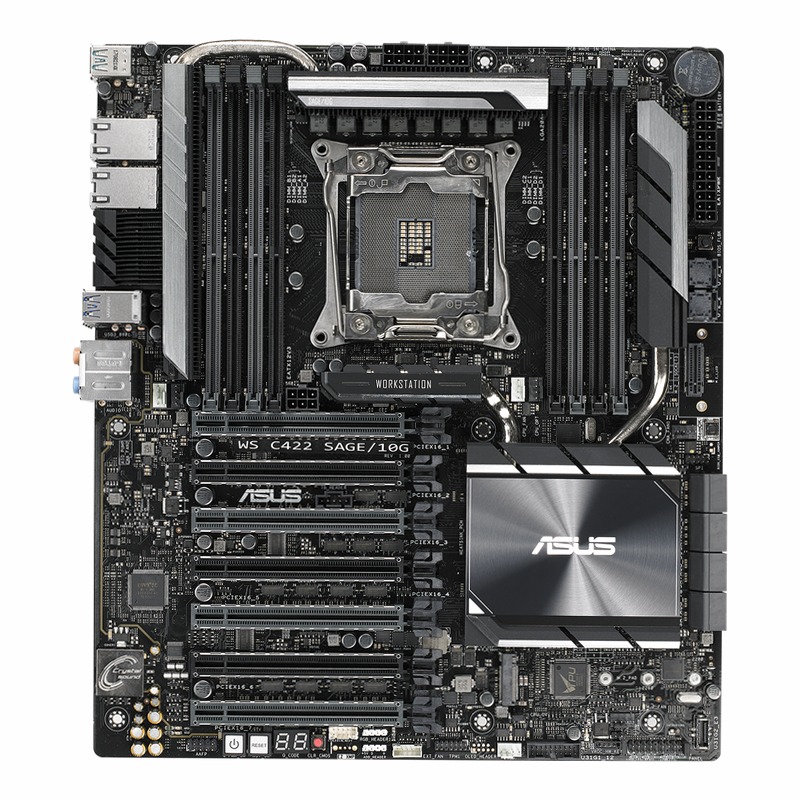

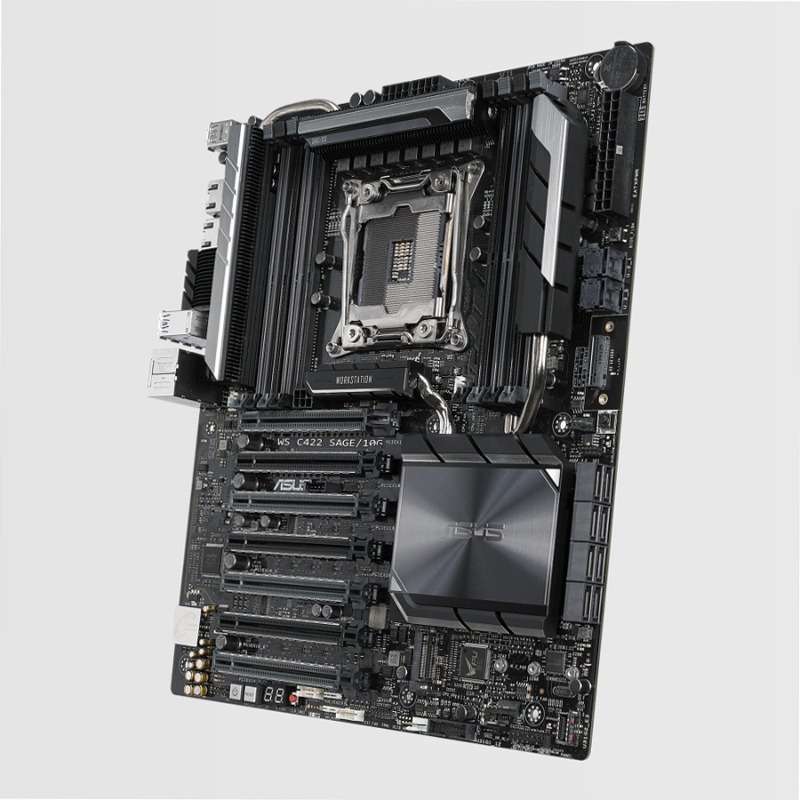

WS C422 SAGE/10G - Specifiche Generali｜Schede Madri｜ASUS Italia Intel – 10217

Specifiche dettagliate di WS C422 SAGE/10G Specifiche Generali，CPU:Intel® Socket 2066 Processors,Supports Intel® Virtual RAID on CPU (VROC),Supports Intel® 14nm CPU,Supports Intel® Turbo Boost Max Technology 3. 0,* The Intel® Turbo Boost Technology 3. 0 Support Depends on the CPU types.、CPU:Intel® Socket 2066 Processors,Supports Intel® Virtual RAID on CPU (VROC),Supports Intel® 14nm CPU,Supports Intel® Turbo Boost Max Technology 3.

0,* The Intel® Turbo Boost Technology 3. 0 Support Depends on the CPU types.、Chipset:Intel® C422、Chipset:Intel® C422、Memoria:8 x DIMM, Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM Memory * 1 ,Quad Channel Memory Architecture、Memoria:8 x DIMM, Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM Memory * 1 ,Quad Channel Memory Architecture、Supporto Multi-GPU:Supports NVIDIA® 4-Way SLI™ Technology,Supports AMD 4-Way CrossFireX Technology、Supporto Multi-GPU:Supports NVIDIA® 4-Way SLI™ Technology,Supports AMD 4-Way CrossFireX Technology、Slot di Espansione: Intel® C422 Chipset ,7 x PCIe 3. 0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8, ) * 2 、Slot di Espansione: Intel® C422 Chipset ,7 x PCIe 3. 0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8, ) * 2 、Storage: Intel® C422 Chipset : * 3 ,1 x M. 2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3. 0 x 4 mode),1 x M. 2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3. 0 x 4 mode),Support Raid 0, 1, 5, 10,Intel® Virtual RAID (VROC) support for CPU RAID,Intel® Rapid Storage Technology Enterprise supports,8 x SATA 6Gb/s port(s)、Storage: Intel® C422 Chipset : * 3 ,1 x M. 2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3. 0 x 4 mode),1 x M. 2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3. 0 x 4 mode),Support Raid 0, 1, 5, 10,Intel® Virtual RAID (VROC) support for CPU RAID,Intel® Rapid Storage Technology Enterprise supports,8 x SATA 6Gb/s port(s)、LAN:Intel® X550-AT2,2 x 10 Gigabit LAN、LAN:Intel® X550-AT2,2 x 10 Gigabit LAN、Audio:- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking,- High quality120dBSNR stereo playback output(Line-out at rear)and113dB(Line-in),Realtek® ALC S1220A7. 1-Channel High Definition Audio CODEC,- DTS Connect,- Power pre-regulator reduces power input noise to ensure consistent performance,- DTS Headphone:X,- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers,- Supports up to 32-Bit/192kHz playback * 4 ,- Impedance sense for front and rear headphone outputs, Audio Feature : ,- Optical S/PDIF out port(s) at back panel,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs,Separate layer for left and right track, ensuring both sound deliver equal quality、Audio:- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking,- High quality120dBSNR stereo playback output(Line-out at rear)and113dB(Line-in),Realtek® ALC S1220A7. 1-Channel High Definition Audio CODEC,- DTS Connect,- Power pre-regulator reduces power input noise to ensure consistent performance,- DTS Headphone:X,- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers,- Supports up to 32-Bit/192kHz playback * 4 ,- Impedance sense for front and rear headphone outputs, Audio Feature : ,- Optical S/PDIF out port(s) at back panel,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs,Separate layer for left and right track, ensuring both sound deliver equal quality、Porte USB: Intel® C422 Chipset : ,6 x USB 3. 1 Gen 1 port(s) (4 at back panel, , 2 at mid-board),1 x USB 3. 1 Gen 2 port(s) (1 at mid-board), ASMedia® USB 3. 1 Gen 2 controller : ,2 x USB 3. 1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C TM )、Porte USB: Intel® C422 Chipset : ,6 x USB 3. 1 Gen 1 port(s) (4 at back panel, , 2 at mid-board),1 x USB 3. 1 Gen 2 port(s) (1 at mid-board), ASMedia® USB 3. 1 Gen 2 controller : ,2 x USB 3. 1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C TM )、Workstation Feature:ASUS Control Center (ACC)、Workstation Feature:ASUS Control Center (ACC)、Caratteristiche Speciali:ASMedia USB 3. 1 Gen 2 Controller supports Multiple-Ins function, DIGI + Power Control : ,- CPU Power: Digital 8-phase power design,- DRAM Power: Digital 2-phase power design, Intel® Virtual RAID on CPU (VROC) ready , Thunderbolt 3 support ,- Ai Charger+,- ASUS USB BIOS Flashback,Asus Control Center (ACC) IT management software supported,- File Transfer,- MemOK!, Turbo App , M. 2 and U. 2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M. 2 and U. 2) ,- Onboard Button : Power/Reset,- Aura Addressable Strip Header(s), ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS Q-Connector,- ASUS Q-Code, AURA : ,- Aura RGB Strip Headers, Fan Xpert4 ,- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection, ASUS Exclusive Features :, ASUS EZ DIY : ,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-Shield,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM、Caratteristiche Speciali:ASMedia USB 3. 1 Gen 2 Controller supports Multiple-Ins function, DIGI + Power Control : ,- CPU Power: Digital 8-phase power design,- DRAM Power: Digital 2-phase power design, Intel® Virtual RAID on CPU (VROC) ready , Thunderbolt 3 support ,- Ai Charger+,- ASUS USB BIOS Flashback,Asus Control Center (ACC) IT management software supported,- File Transfer,- MemOK!, Turbo App , M. 2 and U. 2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M. 2 and U. 2) ,- Onboard Button : Power/Reset,- Aura Addressable Strip Header(s), ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS Q-Connector,- ASUS Q-Code, AURA : ,- Aura RGB Strip Headers, Fan Xpert4 ,- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection, ASUS Exclusive Features :, ASUS EZ DIY : ,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-Shield,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM、Operating System Support:Windows® 10 64-bit、Operating System Support:Windows® 10 64-bit、Porte I/O Posteriori:1 x USB 3. 1 Gen 2 (teal blue)Type-A,,1 x USB 3. 1 Gen 2 (black)Type-C,4 x USB 3. 1 Gen 1 (blue),1 x 8-channel Audio I/O,2 x LAN (RJ45) port(s),1 x Optical S/PDIF out、Porte I/O Posteriori:1 x USB 3. 1 Gen 2 (teal blue)Type-A,,1 x USB 3. 1 Gen 2 (black)Type-C,4 x USB 3. 1 Gen 1 (blue),1 x 8-channel Audio I/O,2 x LAN (RJ45) port(s),1 x Optical S/PDIF out、I/O Interne:2 x U. 2 port,1 x 6-pin ATX Power connector,2 x 8-pin ATX 12V Power connector(s),1 x EZ XMP switch,1 x MemOK! Button,1 x CPU_OV jumper,1 x USB 3. 1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3. 1 Gen 1 port(s),1 x Aura RGB Strip Header,1 x TPM header,1 x 5-pin EXT_FAN(Extension Fan) connector,1 x Aura Addressable Strip Header(s),1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3. 0 x 4 mode),1 x VROC_HW_Key,1 x Thunderbolt header(s),1 x M. 2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3. 0 x 4 mode),1 x Water Pump header (4-pin),1 x USB 3. 1 Gen 2 front panel connector,1 x Power-on button(s),1 x Reset button(s),1 x Thermal sensor connector,1 x AAFP connector,2 x Chassis Fan connector(s),1 x System panel connector,1 x M. 2 Fan Header,8 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),1 x AIO_PUMP connector,1 x COM port(s) connector(s),1 x 24-pin EATX Power connector(s)、I/O Interne:2 x U. 2 port,1 x 6-pin ATX Power connector,2 x 8-pin ATX 12V Power connector(s),1 x EZ XMP switch,1 x MemOK! Button,1 x CPU_OV jumper,1 x USB 3. 1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3. 1 Gen 1 port(s),1 x Aura RGB Strip Header,1 x TPM header,1 x 5-pin EXT_FAN(Extension Fan) connector,1 x Aura Addressable Strip Header(s),1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3. 0 x 4 mode),1 x VROC_HW_Key,1 x Thunderbolt header(s),1 x M. 2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3. 0 x 4 mode),1 x Water Pump header (4-pin),1 x USB 3. 1 Gen 2 front panel connector,1 x Power-on button(s),1 x Reset button(s),1 x Thermal sensor connector,1 x AAFP connector,2 x Chassis Fan connector(s),1 x System panel connector,1 x M. 2 Fan Header,8 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),1 x AIO_PUMP connector,1 x COM port(s) connector(s),1 x 24-pin EATX Power connector(s)、Accessori:Addressable LED extension cable,8 x SATA 6Gb/s cable(s),1 x M. 2 screws,1 x COM port cable(s),1 x 3-Way SLI bridge(s),1 x 4-Way SLI bridge(s),1 x Vertical M. 2 bracket set,1 x SLI HB BRIDGE(2-WAY-M),1 x Q-Connector,User´s manual,I/O Shield,1 x Supporting DVD、Accessori:Addressable LED extension cable,8 x SATA 6Gb/s cable(s),1 x M. 2 screws,1 x COM port cable(s),1 x 3-Way SLI bridge(s),1 x 4-Way SLI bridge(s),1 x Vertical M. 2 bracket set,1 x SLI HB BRIDGE(2-WAY-M),1 x Q-Connector,User´s manual,I/O Shield,1 x Supporting DVD、Dimensioni Scheda:CEB Form Factor,12 inch x 10. 5 inch ( 30. 5 cm x 26. 7 cm )、Dimensioni Scheda:CEB Form Factor,12 inch x 10. 5 inch ( 30. 5 cm x 26. 7 cm )、Peso:Color Box(3-in-1) Net Weight: 4. 28kg Gross Weight: 6. 48kg Bulk Pack(5-in-1) Net Weight: 6. 83kg Gross Weight: 9. 91kg、Peso:Color Box(3-in-1) Net Weight: 4. 28kg Gross Weight: 6. 48kg Bulk Pack(5-in-1) Net Weight: 6. 83kg Gross Weight: 9. 91kg、Ambiente:Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)、Ambiente:Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)、Note:*1 Memory capacity supported depends on both CPU and Memory installed. *2 Please refer to the block diagrams in the Appendix for more details in the manual. *3 Intel® VROC is supported via RSTe, and Intel® VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel® VROC_HW_key installed. *4 Due to limitations in HAD bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows® 10.、Note:*1 Memory capacity supported depends on both CPU and Memory installed. *2 Please refer to the block diagrams in the Appendix for more details in the manual. *3 Intel® VROC is supported via RSTe, and Intel® VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel® VROC_HW_key installed. *4 Due to limitations in HAD bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows® 10.…
