Pro WS TRX50-SAGE WIFI A - Specifiche Generali｜Schede Madri｜ASUS Italia AMD – 32237
Descrizione
The Pro WS TRX50-SAGE WIFI A CEB motherboard offers elite speed, compatibility & stability tailored to content creation, software development & machine learning Stadi di potenza nell'area VRM , Soluzioni di raffreddamento attive per VRM , Connettori ProCool II , Connettori di alimentazione PCIe integrati , Marvell® AQtion 10 Gbps Ethernet , Intel® 2. 5 Gb Ethernet , USB 20 Gbps con PD , 6 x USB 10 Gbps , Doppia USB4® Connettività , Slot M. 2 PCIe 5.
0/4. 0 , SlimSAS Ports , ASUS IPMI scheda di espansione , ASUS Control Center Express , PCIe Q-release Slim , Step 1: Afferrare saldamente la scheda grafica. , Step 2: Inclinare leggermente la scheda tirandola verso l'alto. , SafeSlot & SafeDIMM , M. 2 Q-Release & Q-Latch , Costruita per un computing sicuro e affidabile.
| Modello | Pro WS TRX50-SAGE WIFI A |
| News & Updates | Please visit our GLOBAL website to check and download the latest updates. |
| CPU | AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors ** *Refer to www.asus.com for CPU support list. **System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration.This behavior is normal. Please allow sufficient time for the process to complete. |
| Chipset | AMD TRX50 Chipset |
| Memory | 4 x DIMM slots, DDR5, ECC Registered Memory* 4 Channel Memory Architecture * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit |
| AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors | 3 x PCIe 5.0 x16 slots 1 x PCIe 4.0 x16 slot * Please check the PCIe bifurcation table on the support site ( |
| Total supports 4 x M.2 slots, 4 x SATA 6Gb/s ports , 2 x SlimSAS ports | AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and AMD Ryzen™ Threadripper™ 9000 & 7000 Series Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** AMD TRX50 Chipset M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2*** 4 x SATA 6Gb/s ports SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3*** AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**** SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device**** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. ** M.2_1 & M.2_2 slots only support PCIe 4.0 x4 mode when using Threadripper 7000 non-pro series CPUs *** M.2_3 slot shares bandwidth with SlimSAS_2.When M.2_3 slot is operating, SlimSAS_2 will be disabled, and vice versa. **** Supported when the Threadripper™ PRO series CPU is installed |
| AMD RAIDXpert2 Technology | PCIe RAID 0/1/5/10 SATA RAID 0/1/5/10 |
| Ethernet | 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® I226-LM 2.5Gb Ethernet |
| Wireless & Bluetooth | "Wi-Fi 7 (Realtek® RTL8922AE) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications." |
| Rear USB (Total 9 ports) | 2 x USB4 ® (40Gbps) (2 x USB Type-C ® ) 6 x USB 10Gbps ports (6 x Type-A ) 1 x USB 2.0 ports (1 x Type-A ) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C ® with up to 30W PD)* 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports * USB Type-C ® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
| Audio | Features |

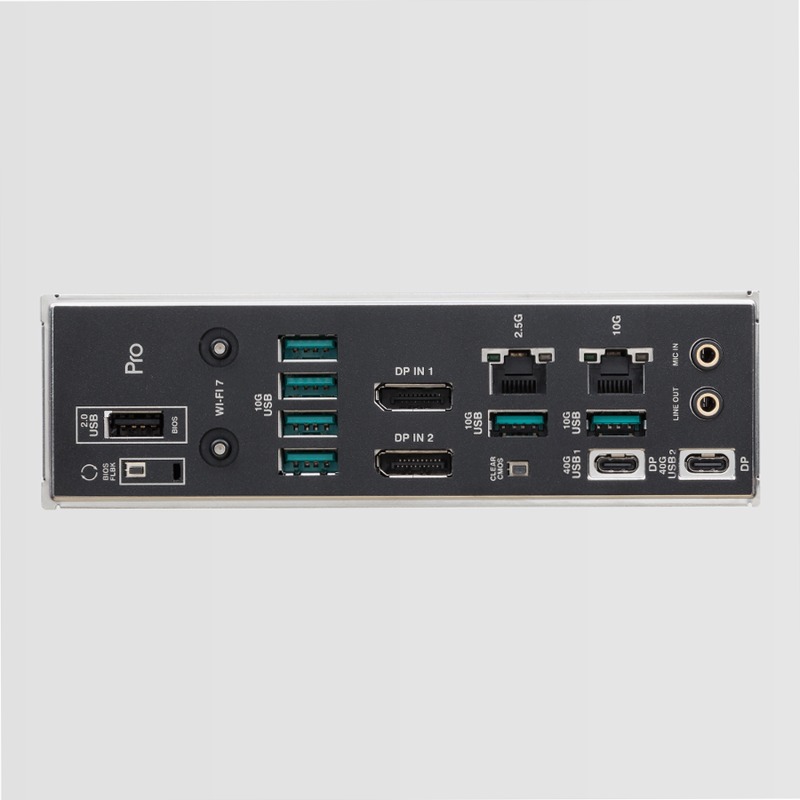

| Back Panel I/O Ports | 2 x USB4 ® (40Gbps) ports (2 x USB Type-C ® ) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 2 x DisplayPort IN 1 x Wi-Fi Module 1 x Marvell ® AQtion 10Gb Ethernet port 1 x Intel ® 2.5Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Fan and Cooling related | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 4 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) Power related 1 x 24-pin Main Power connectors 1 x 4-pin to 24-pin Main Power connectors 2 x 8-pin +12V CPU Power connector 2 x 8-pin PCIe to CPU power connectors 1 x 6-pin PCIe Power connector 1 x 8-pin PCIe Power connector Storage relate d 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C ® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable RGB Gen 2 header 1 x BMC header 1 x COM Port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x Safe boot button 1 x ReTry button 1 x LN2 mode jumper 1 x Slow mode switch 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header 1 x Chassis intrusion header 1 x Thermal Sensor header 7 x ProbeIt Measurement Points |
| ASUS Q-Design | - Q-Code - M.2 Q-Latch - M.2 Q-Release - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink and onboard thermal pads - M.2 heatsink backplate - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - Dual DIMM clips - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable RGB Gen 2 header Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection |
| ASUS Exclusive Software | Armoury Crate - Fan Xpert 4 - Aura Sync ASUS CPU-Z ASUS DriverHub IT Management software supported - ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey * For more software features, please visit the asus support site or refer to www.asus.com/support for additional information. ** For detailed information on the supported models and restricted regions for this redemption offer, please refer to |
| IT Management software supported | - ASUS Control Center Express(ACCE) Ready for IPMI Expansion Card* 1 x BMC header * IPMI Expansion Card is sold separately. |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE (UEFI mode) |

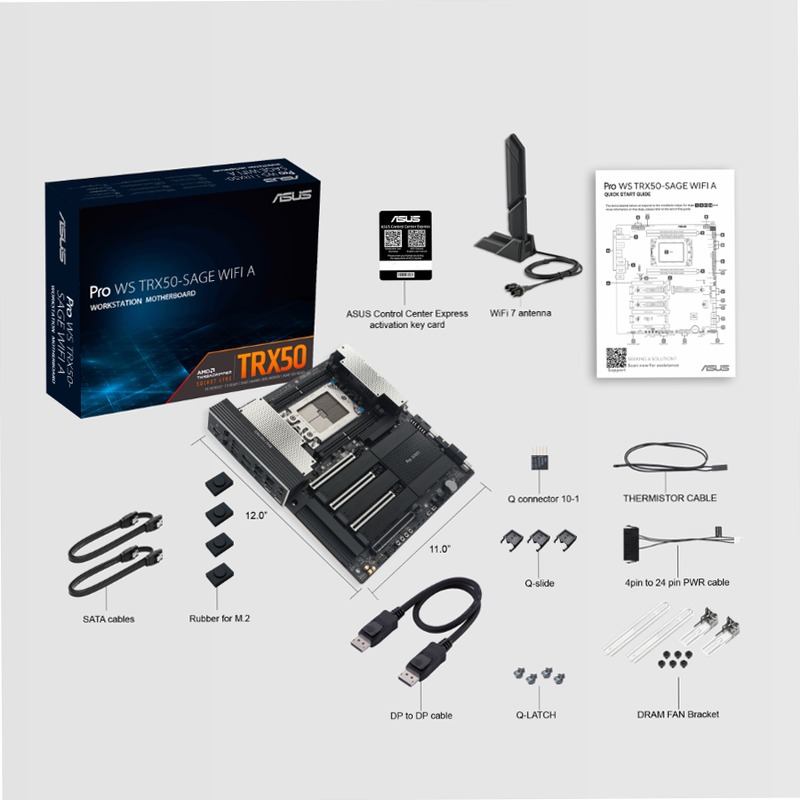

| Cables | 2 x SATA 6Gb/s cables 1 x Thermistor cable pack 1 x DisplayPort cable 1 x 4pin to 24-pin ATX power connector Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 Q-Latch package(2 in 1) 2 x M.2 Q-Slide package 2 x M.2 Rubber Packages 1 x Fan bracket 1 x Q-connector Documentation 1 x ACC Express Activation Key Card 1 x QSG |
| Operating System | Windows ® 11 |
| Form Factor | CEB 12 inch x 11 inch (30.5 cm x 28.0 cm) |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset AMD. AMD, modello da Pro WS TRX50-SAGE WIFI A, news & updates Please visit our GLOBAL website to check and download the latest updates. e cpu da AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors ** *Refer to www.asus.com for CPU support list. **System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration.This behavior is normal. Please allow sufficient time for the process to complete., elementi che ne valorizzano dotazione, prestazioni e fruibilita complessiva
| Sku | 32237 |
| Mpn | 32237 |
| Chipset | AMD |
Pro WS TRX50-SAGE WIFI A｜Schede Madri｜ASUS Italia e un prodotto da valutare con attenzione perche le evidenze live raccolte mostrano una presenza ancora attuale sul mercato. La lettura piu interessante riguarda soprattutto i suoi punti di forza, che aiutano a capire per quale tipo di acquisto puo avere davvero senso.
Punti di forza
- Pro WS TRX50-SAGE WIFI A｜Schede Madri｜ASUS Italia Passa al contenuto Aiuto accessibilità Gaming Business Non ci sono articoli nel carrello. Shop on ASUS store SHOP AI Notebook Mobile / Console Desktop / Display / AIO Schede Madri / Componenti Networking / IoT / Server Accessori OFFERTE MEMBER FESTIVAL - Risparmia Ora!.
- Si colloca nella categoria Schede madri con un posizionamento orientato a chi cerca un prodotto curato, aggiornato e competitivo nella sua fascia.
- Le fonti raccolte online mostrano un interesse attuale e una presenza editoriale ancora rilevante, segnale utile per chi vuole acquistare un prodotto seguito e discusso anche fuori dalla scheda ufficiale.
Criticita
Non emergono criticita ricorrenti documentate con sufficiente chiarezza nelle fonti raccolte.
Perche comprarlo
Vale l'acquisto per chi cerca Schede madri con brand forte, presenza online attuale e una valutazione complessiva di 4.0/5, soprattutto se l'obiettivo e puntare su una proposta solida e ben posizionata.
