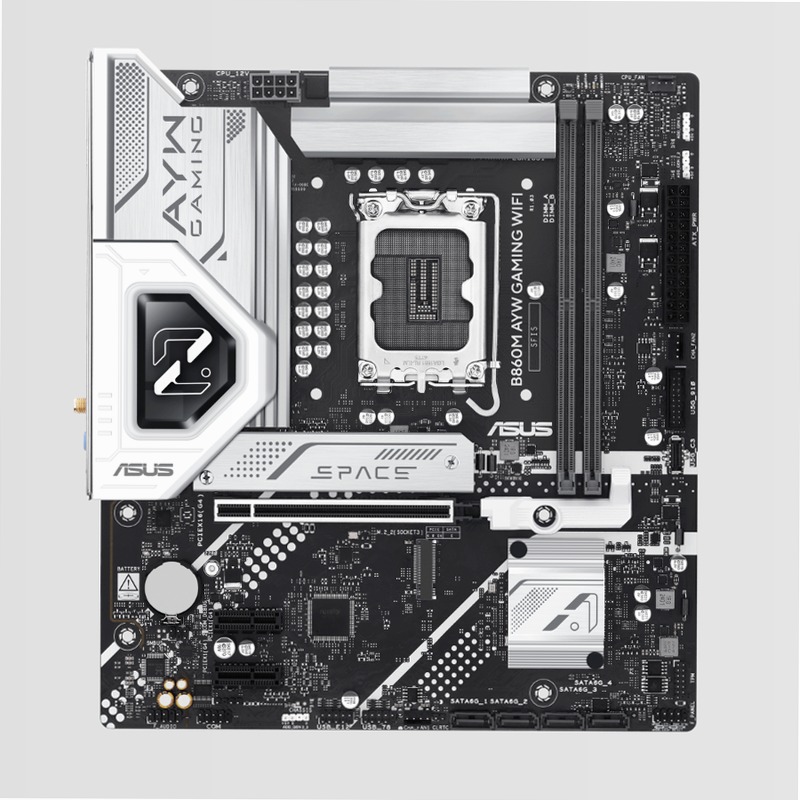

B860M AYW GAMING WIFI - Specifiche Generali｜Schede Madri｜ASUS Italia Intel DDR5 – 30880
Descrizione

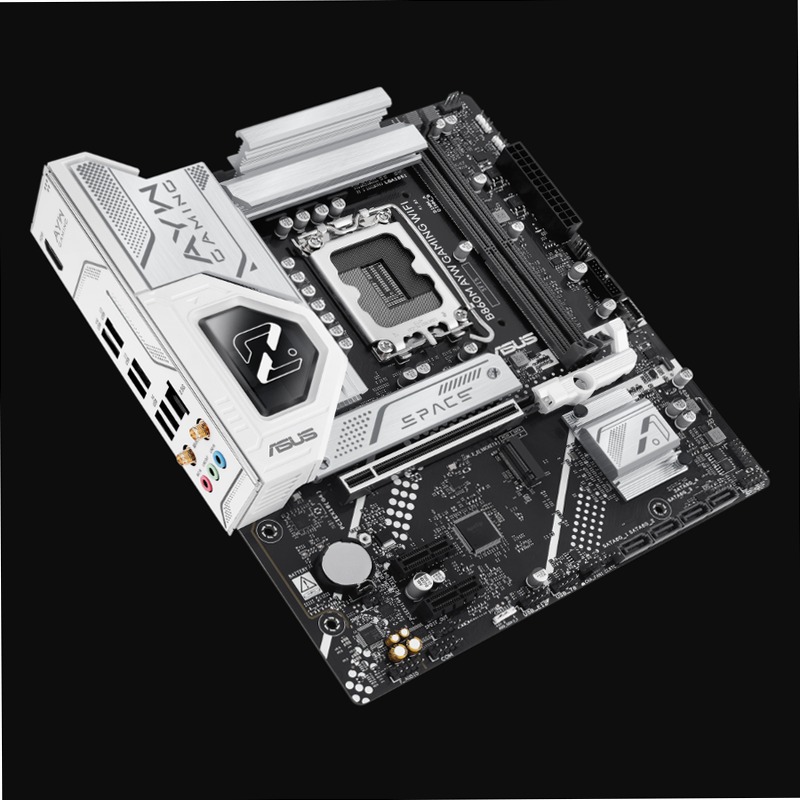

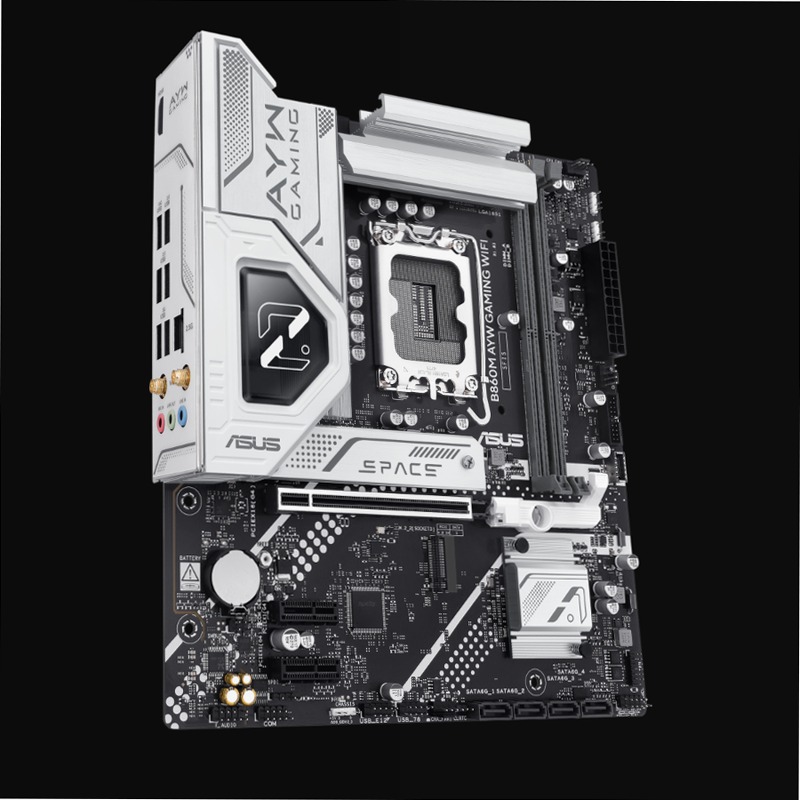

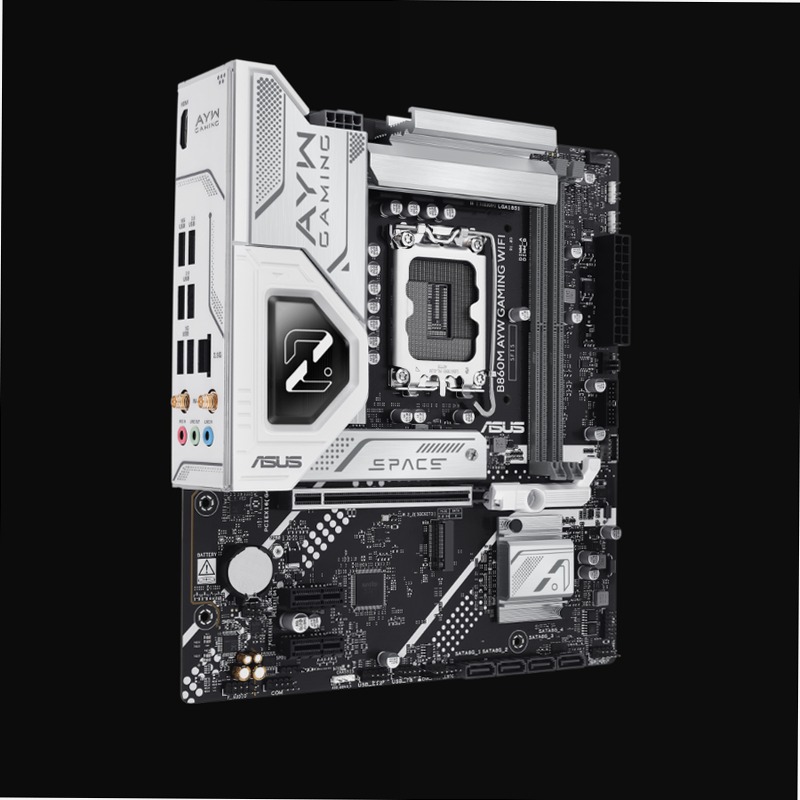

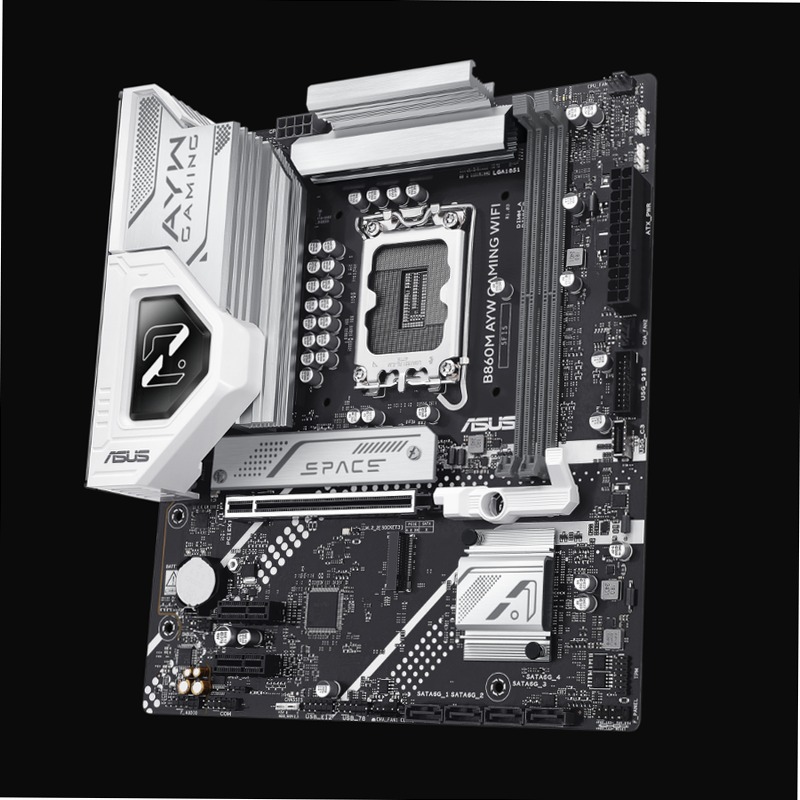

ASUS B860M AYW GAMING WIFI motherboard with Intel® Core™ Ultra Processors (Series 2), WiFi 6, DDR5, PCIe 5. 0 M. 2, and advanced AI capabilities.
B860M AYW GAMING WIFI , Soluzioni AI , Design Digitale della Potenza , AEMP III per le massime prestazioni DDR5 , DIMM Fit / DIMM Fit Pro , Due slot M. 2 (fino a 128Gbps) , Raffreddamento efficace , Raffreddamento di precisione intelligente , ASUS Fan Xpert 2+ , Potenziare la connessione , WiFi 6 , Alta Velocità di Trasferimento , Realtek 2. 5Gb Ethernet , Massima personalizzazione , DIY friendly , AI Advisor , UEFI BIOS , ASUS GlideX , ASUS DriverHub , Armoury Crate , Aura Sync Cancella la concorrenza.
| Modello | B860M AYW GAMING WIFI |
| News & Updates | Please see the updated OS support requirements for the Intel ® Core Ultra 200S Series below: •Intel ® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel ® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check and download the latest updates. |
| CPU | Supports Intel ® Core™ Ultra Processors (Series 2), LGA1851* Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** * Refer to for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel ® B860 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel ® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit . Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x HDMI TM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. |
| Intel ® Core™ Ultra Processors (Series 2) | 1 x PCIe 4.0 x16 slot Intel ® B860 Chipset 2 x PCIe 4.0 x1 slots - To ensure compatibility of the device installed, please refer to for the list of supported peripherals. |
| Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel ® Core™ Ultra Processors (Series 2) * | M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel ® B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth ® v5.3* * The Bluetooth ® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Rear USB (Total 6 ports) | 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A)** Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C ® )* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports** * USB Type-C ® power delivery output: max. 5V/3A. ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
| Audio | Features |

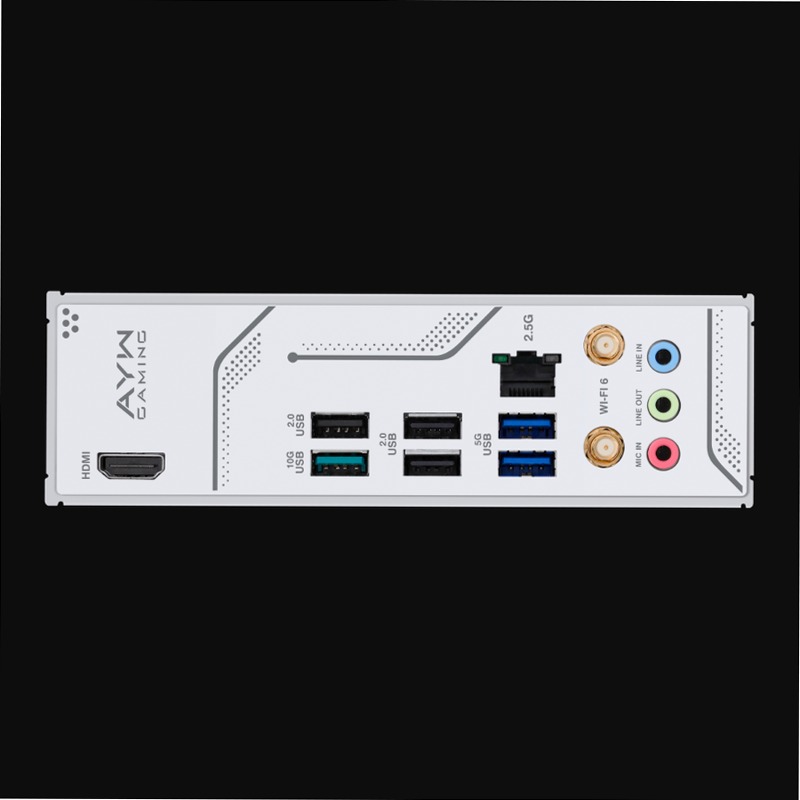

| Back Panel I/O Ports | 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMI TM port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Fan and Cooling Related | 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header |
| ASUS 5X PROTECTION III | - DIGI+VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsinks design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Addressable Gen2 headers |
| ASUS Exclusive Software | Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| BIOS | 256(128+128) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

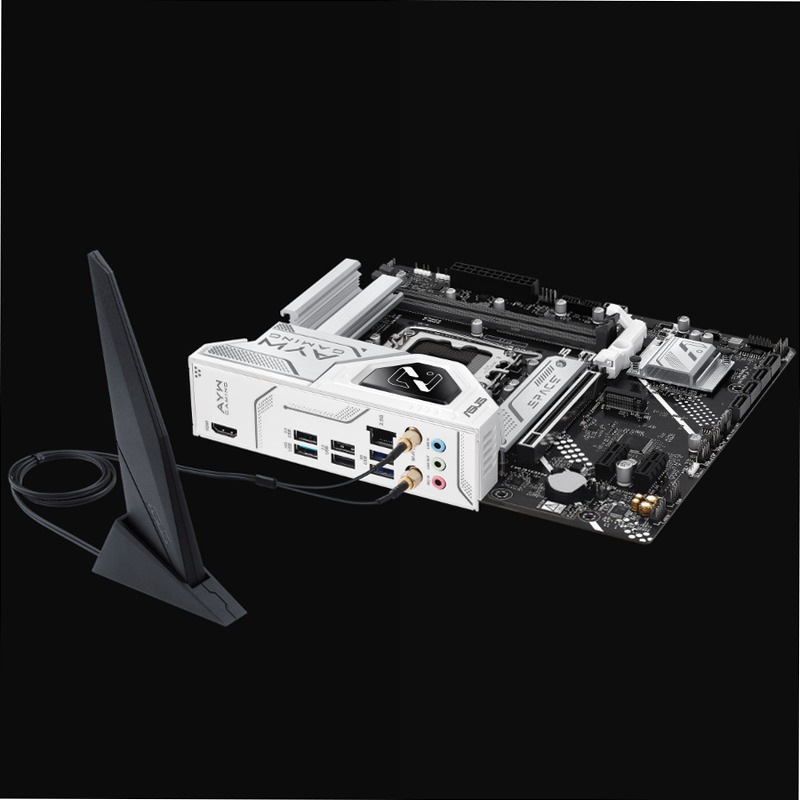

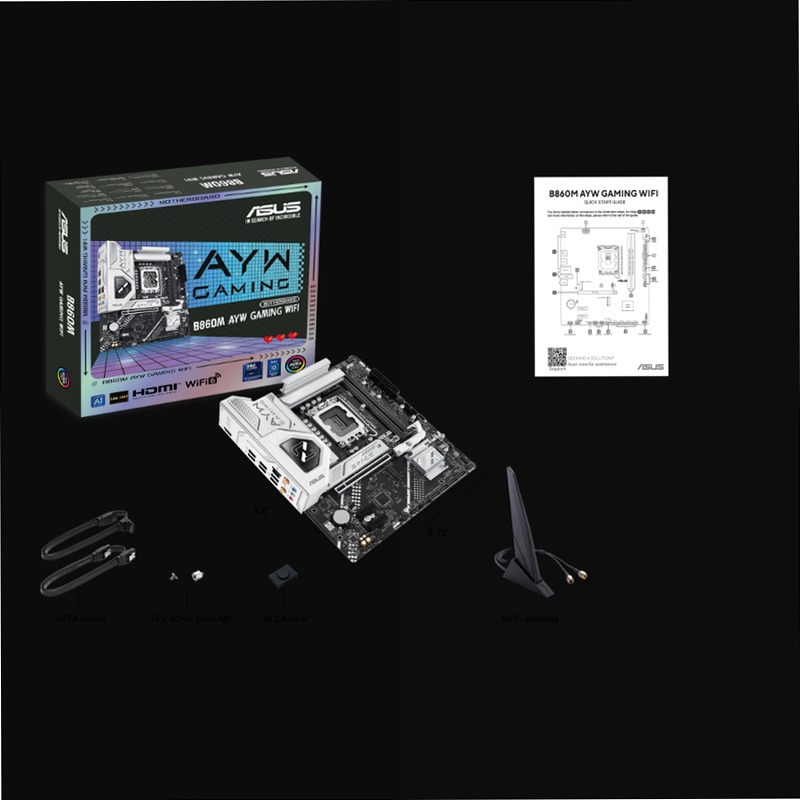

| Cables | 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x M.2 rubber package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide |
| Operating System | Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later) |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4cm x 22.2cm) |
