TUF GAMING B760M-BTF WIFI - Specifiche Generali｜Schede Madri｜ASUS Italia Intel DDR5 LGA 1700 ATX LGA1700 – 23838
Descrizione

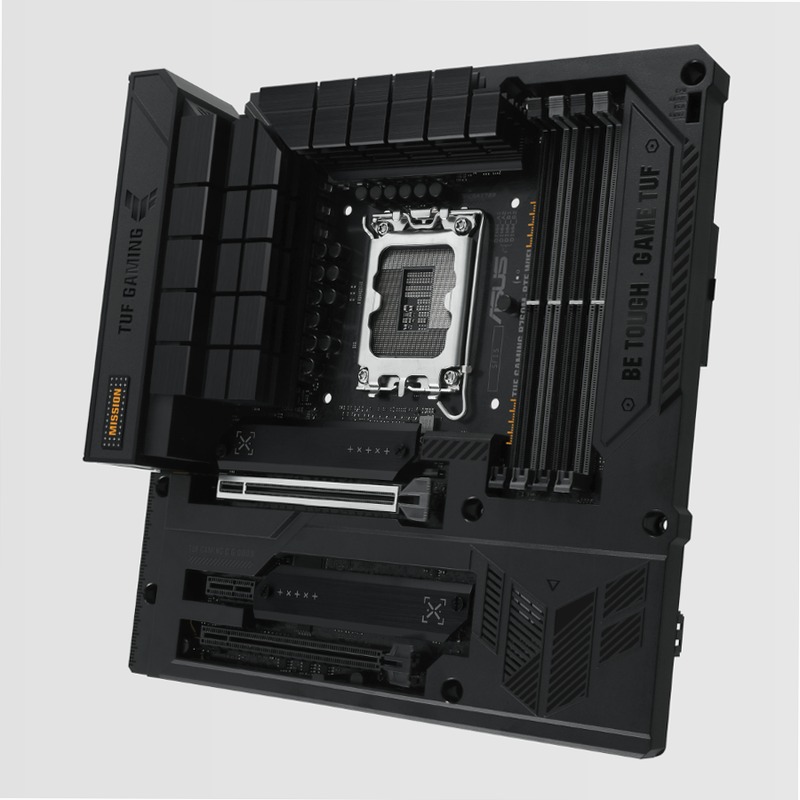

Intel® B760 (LGA 1700) mATX motherboard with DDR5, PCIe 5. 0, three M.
2 slots, 12+1 DrMOS, Realtek 2. 5Gb Ethernet, Intel® Wi-Fi 6, DisplayPort, HDMI™, Rear USB 3. 2 Gen 2x2 Type-C®,.
| Modello | TUF GAMING B760M-BTF WIFI |
| CPU | Intel ® Socket LGA1700 for Intel ® Core™ 14 th & 13 th Gen Processors, Intel ® Core™ 12 th Gen, Pentium ® Gold and Celeron ® Processors Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel ® B760 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMI TM port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Intel ® Core™ Processors (14 th & 13 th & 12 th Gen) | 1 x PCIe 5.0 x16 slot Intel ® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to for the list of supported peripherals. |
| Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel ® Core™ Processors (14 th & 13 th & 12 th Gen) | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel ® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth ® v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Rear USB (Total 10 ports) | 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C ® ) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C ® ) 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A + 1 x USB Type-C ® ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C ® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth. ** USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth. |
| Audio | Features |

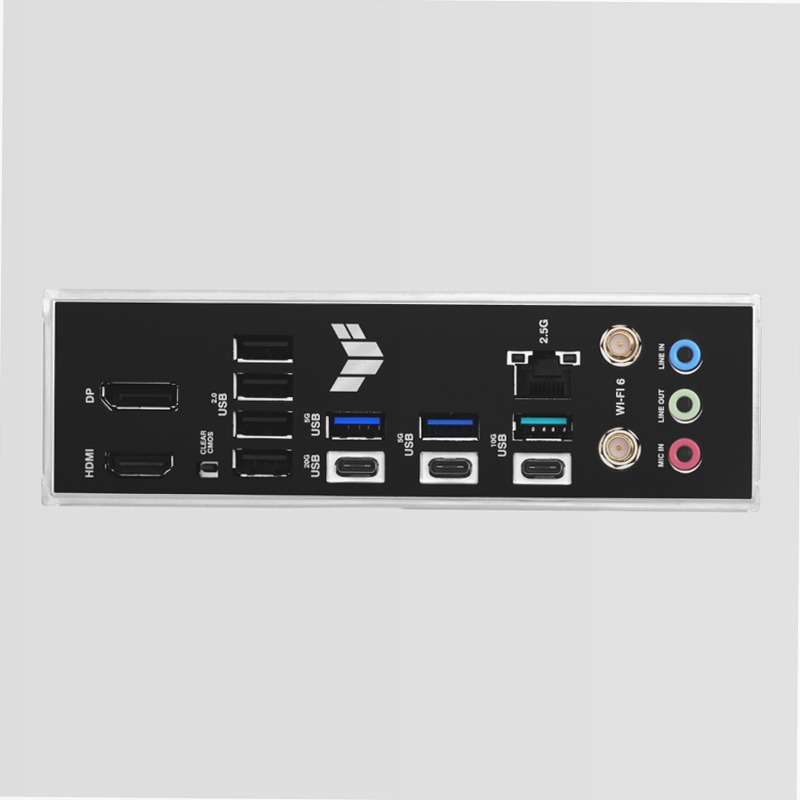

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C ® ) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C ® ) 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C ® ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI TM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x Clear CMOS button |
| Fan and Cooling related | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C ® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 10-1 pin System Panel header 1 x Thunderbolt™ (USB4 ® ) header |
| ASUS TUF PROTECTION | - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers Hidden-Connector (BTF) Without Graphics Card High-Power Slot *Compatible with general graphics card, but not BTF graphics card. |
| ASUS Exclusive Software | Armoury Crate - Aura Creator - Aura Sync - FAN Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Cables | 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF Gaming sticker 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x User guide |
| Operating System | Windows ® 11, Windows ® 10 64-bit |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset Intel. Intel, ram supportata da DDR5. DDR5, socket cpu da LGA 1700. LGA 1700 e formato ATX. ATX, elementi che ne valorizzano dotazione, prestazioni e fruibilita complessiva
| Prezzo medio | € 239 |
| Sku | 23838 |
| Mpn | 23838 |
| Chipset | Intel |
| RAM supportata | DDR5 |
| Socket CPU | LGA 1700 |
| Formato | ATX |
| Socket | LGA1700 |
TUF GAMING B760M-BTF WIFI - Motherboard Intel® e un prodotto da valutare con attenzione perche le evidenze live raccolte mostrano una presenza ancora attuale sul mercato. La lettura piu interessante riguarda soprattutto i suoi punti di forza, che aiutano a capire per quale tipo di acquisto puo avere davvero senso.
Punti di forza
- Scopri la potente scheda madre TUF GAMING B760M-BTF WIFI da ASUS. Progettata per sistemi di alto livello, questa scheda madre offre: Supporto Intel® B760 (LGA 1700) DDR5 e PCIe 5. 0 Tre slot M. 2 Alimentazione 12+1 DrMOS per stabilità Retricella Realtek 2. 5Gb Ethernet Connessione Wi-Fi 6 Intel® Porta DisplayPort e HD.
- Si colloca nella categoria Schede madri con un posizionamento orientato a chi cerca un prodotto curato, aggiornato e competitivo nella sua fascia.
Criticita
Non emergono criticita ricorrenti documentate con sufficiente chiarezza nelle fonti raccolte.
Perche comprarlo
Vale l'acquisto per chi cerca Schede madri con brand forte, presenza online attuale e una valutazione complessiva di 3.5/5, soprattutto se l'obiettivo e puntare su una proposta solida e ben posizionata.
