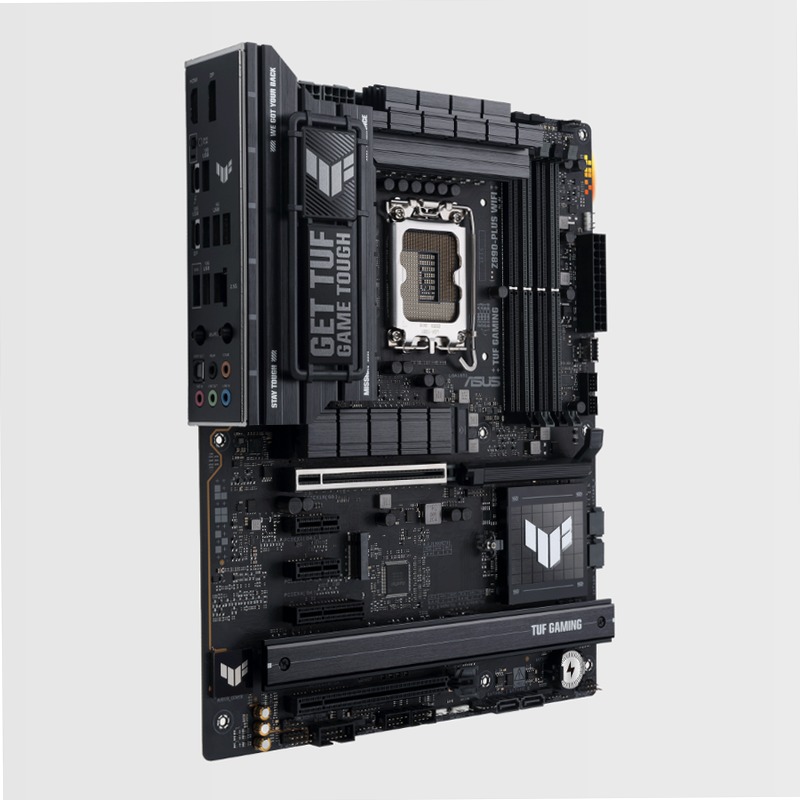

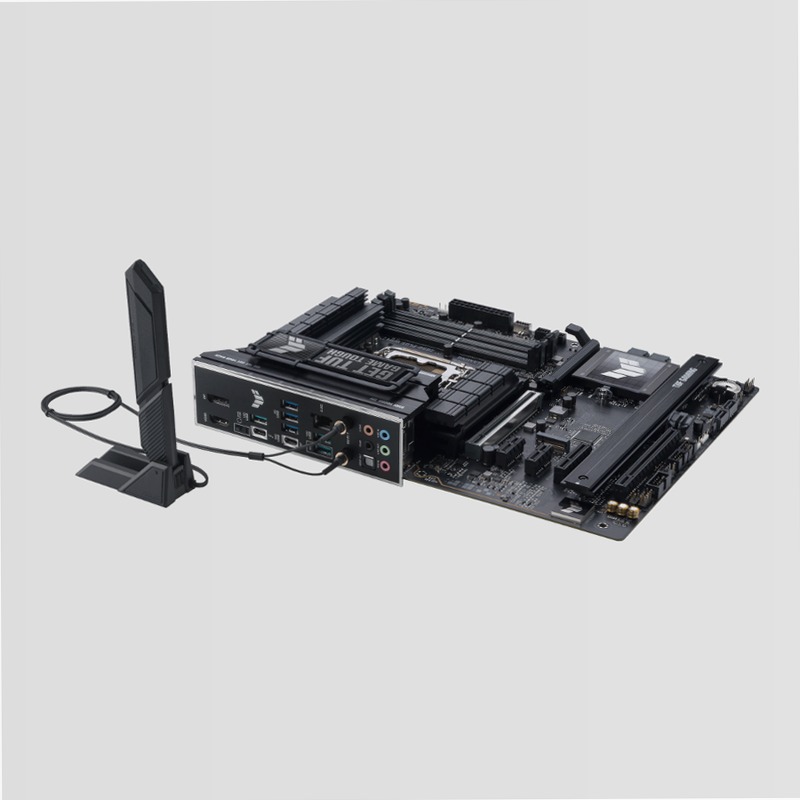

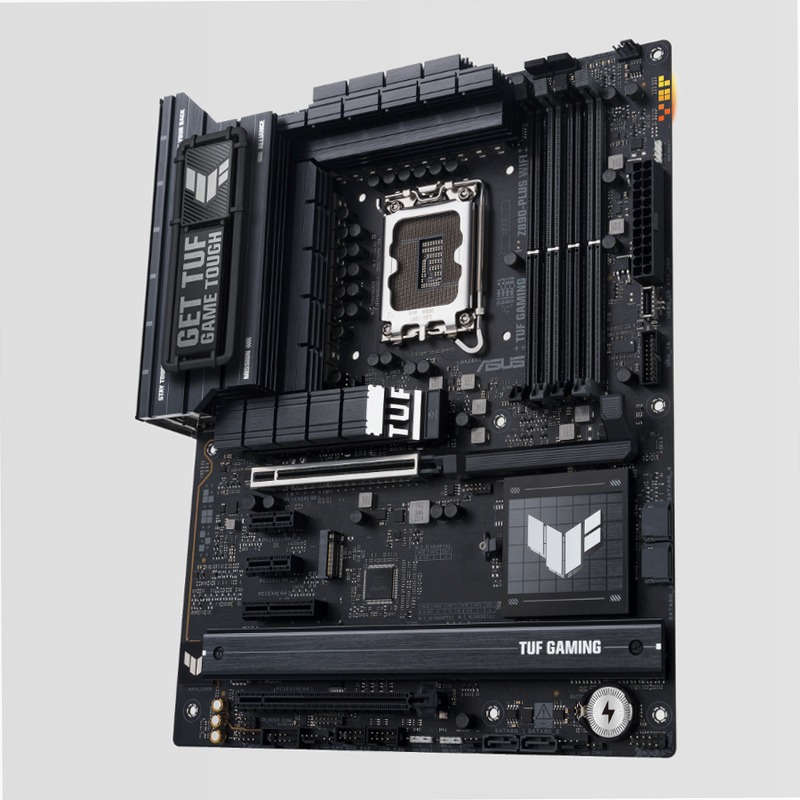

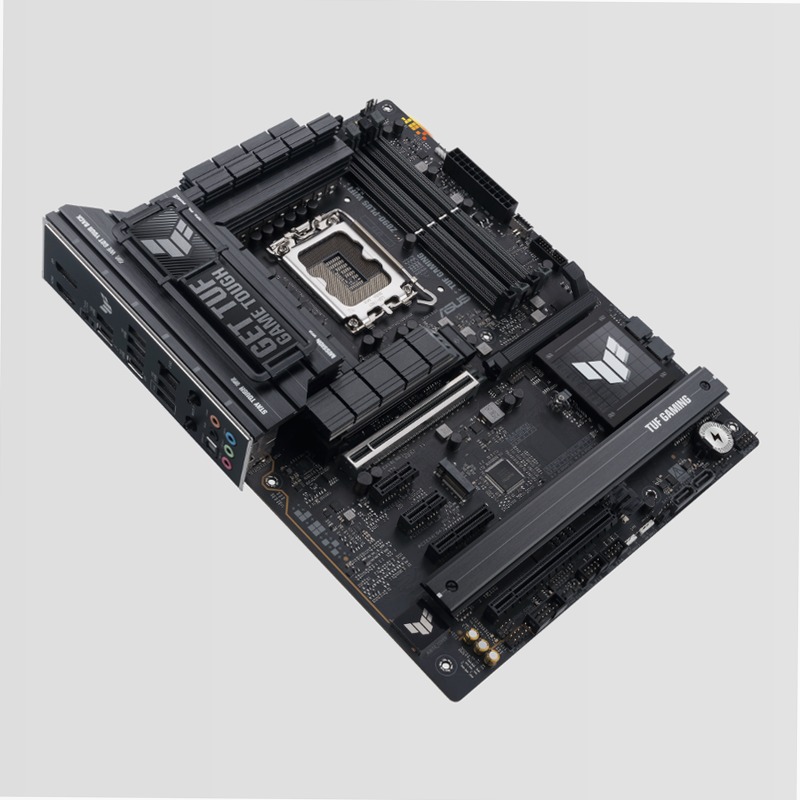

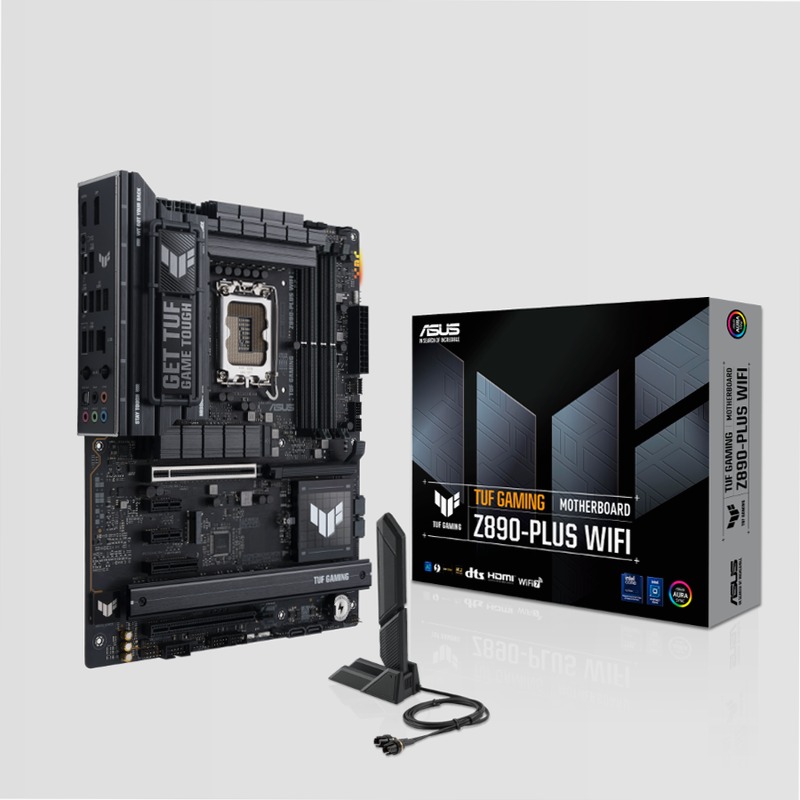

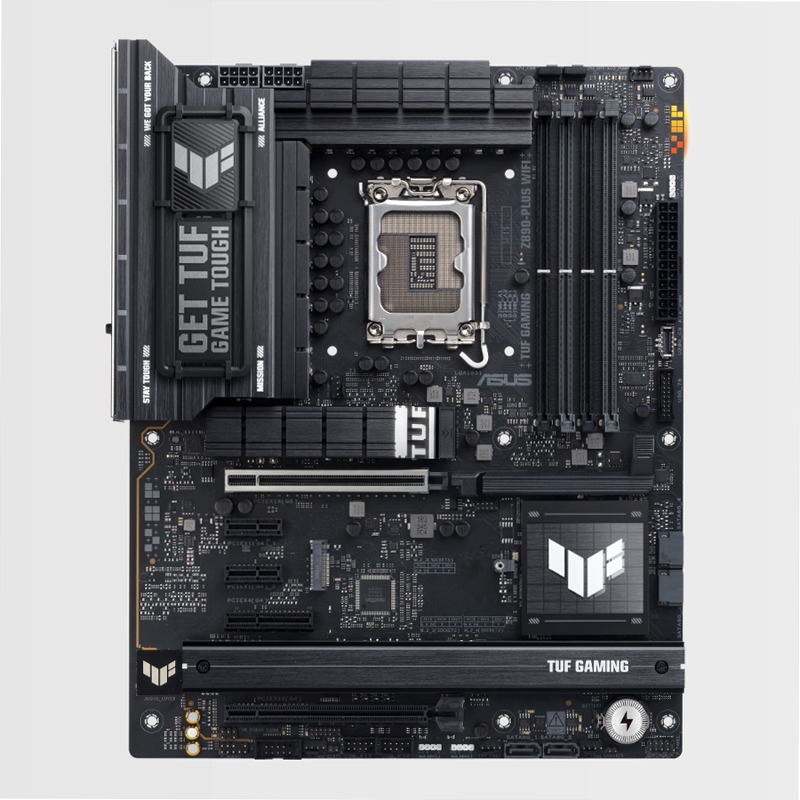

ASUS TUF GAMING Z890-PLUS WIFI Intel – 29693
Descrizione
La ASUS TUF GAMING Z890-PLUS WIFI è un motherboard ATX avanzato pronto per l'AI, progettato per offrire prestazioni superiori. Equippiato con 16+1+2+1 potenti 80A DrMOS power stages, supporta le ultime DDR5 e PCIe® 5.
0, garantendo una connettività ottimizzata attraverso DisplayPort e HDMI™.
| Modello | TUF GAMING Z890-PLUS WIFI |
| News & Updates | Please see the updated OS support requirements for the Intel ® Core Ultra 200S series below: •Intel ® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel ® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check and download the latest updates. |
| CPU | Support Intel ® Core™ Ultra Processors (Series 2), LGA1851* Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** * Refer to for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel ® Z890 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. *** Adjustments will be made based on the specifications of mass-produced memory products available on the market. |
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** 1 x Intel ® Thunderbolt™ 4 port (USB Type-C ® ) supports DisplayPort and Thunderbolt™ video outputs**** 1 x USB 20Gbps port (USB Type-C ® ) supports DisplayPort video output****** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. ***** In DP alt mode, supports up to UHBR20. ****** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ******* VGA resolution support depends on processors' or graphic cards' resolution. ********While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Intel ® Core™ Ultra Processors(Series 2)* | 1 x PCIe 5.0 x16 slot Intel ® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site ( - To ensure compatibility of the device installed, please refer to for the list of supported peripherals. |
| Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel ® Core™ Ultra Processors(Series 2)* | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel ® Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel ® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. |
| Ethernet | 1 x Intel ® 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth ® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Rear USB (Total 8 ports) | 1 x Thunderbolt™ 4 port (1 x USB Type-C ® ) 1 x USB 20Gbps port (1 x USB Type-C ® ) 3 x USB 10Gbps ports (3 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C ® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C ® power delivery output: max. 5V/3A |
| Audio | Features |

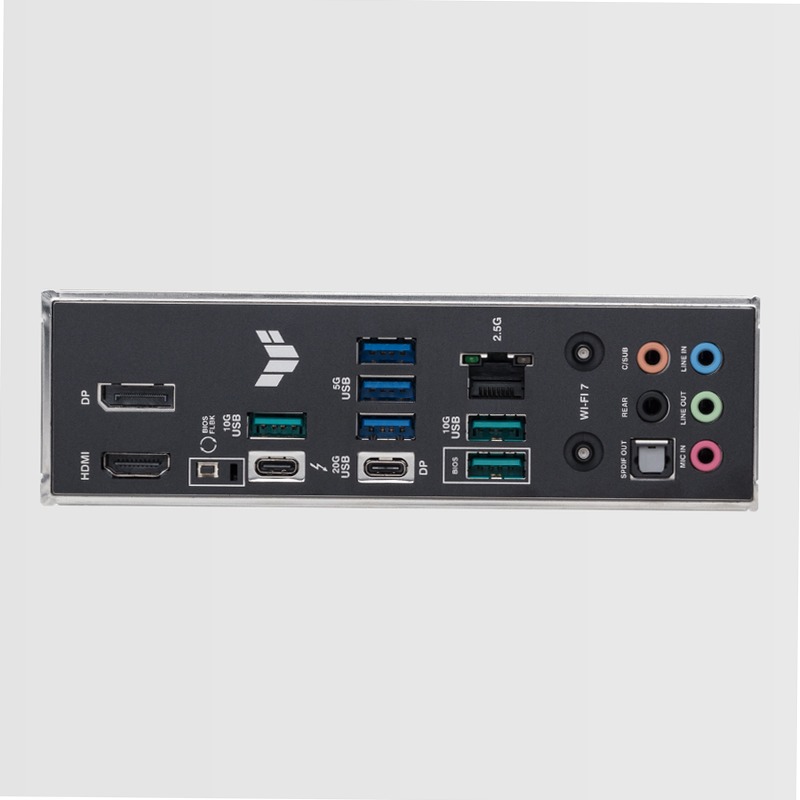

| Back Panel I/O Ports | 1 x Thunderbolt™ 4 USB Type-C ® port 1 x USB 20Gbps port (1 x USB Type-C ® with DP Alt mode) 3 x USB 10Gbps ports (3 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel ® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button |
| Fan and Cooling Related | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C ® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4 ® ) header |
| ASUS TUF PROTECTION | - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers |
| ASUS Exclusive Software | Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

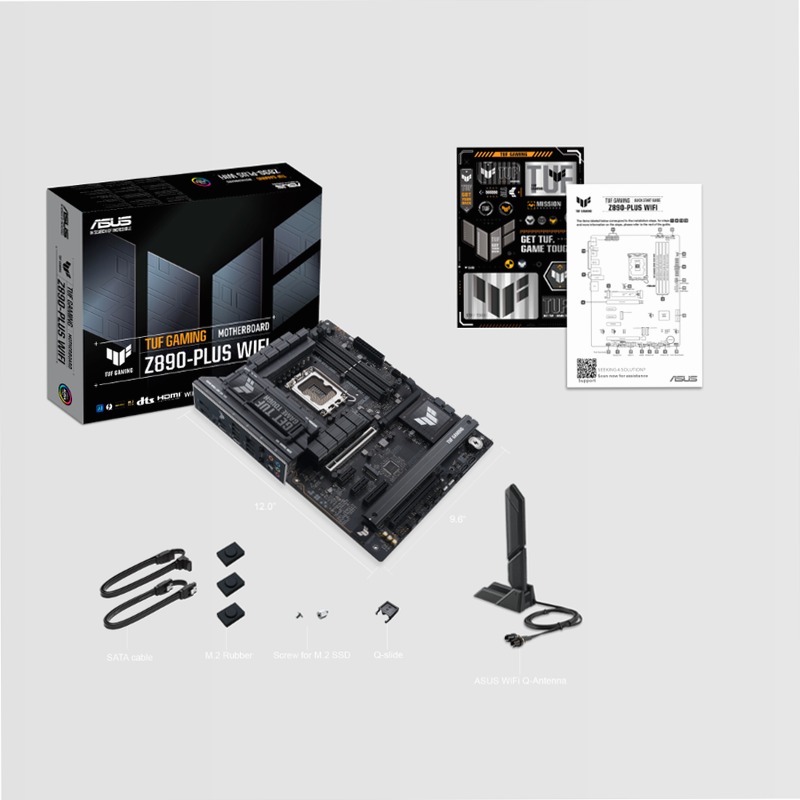

| Cables | 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 Q-Slide package 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF GAMING sticker 1 x TUF GAMING removable nameplate Documentation 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset Intel. Intel, modello da TUF GAMING Z890-PLUS WIFI, news & updates da Please see the updated OS support requirements for the Intel ® Core Ultra 200S series
| Prezzo medio | € 399 |
| Sku | 29693 |
| Mpn | 29693 |
| Chipset | Intel |
TUF GAMING Z890-PLUS WIFI｜Motherboards｜ASUS Global e un prodotto da valutare con attenzione perche le evidenze live raccolte mostrano una presenza ancora attuale sul mercato. La lettura piu interessante riguarda soprattutto i suoi punti di forza, che aiutano a capire per quale tipo di acquisto puo avere davvero senso.
Punti di forza
- TUF GAMING Z890-PLUS WIFI｜Motherboards｜ASUS Global Passa al contenuto Aiuto accessibilità Gaming Business Non ci sono articoli nel carrello. Shop on ASUS store SHOP AI Notebook Mobile / Console Desktop / Display / AIO Schede Madri / Componenti Networking / IoT / Server Accessori OFFERTE MEMBER FESTIVAL - Risparmia Ora.
- Si colloca nella categoria Schede madri con un posizionamento orientato a chi cerca un prodotto curato, aggiornato e competitivo nella sua fascia.
- Le fonti raccolte online mostrano un interesse attuale e una presenza editoriale ancora rilevante, segnale utile per chi vuole acquistare un prodotto seguito e discusso anche fuori dalla scheda ufficiale.
Criticita
Non emergono criticita ricorrenti documentate con sufficiente chiarezza nelle fonti raccolte.
Perche comprarlo
Vale l'acquisto per chi cerca Schede madri con brand forte, presenza online attuale e una valutazione complessiva di 4.0/5, soprattutto se l'obiettivo e puntare su una proposta solida e ben posizionata.
