TUF Z270 MARK 1 - Specifiche Generali｜Schede Madri｜ASUS Italia Intel – 9064
Descrizione

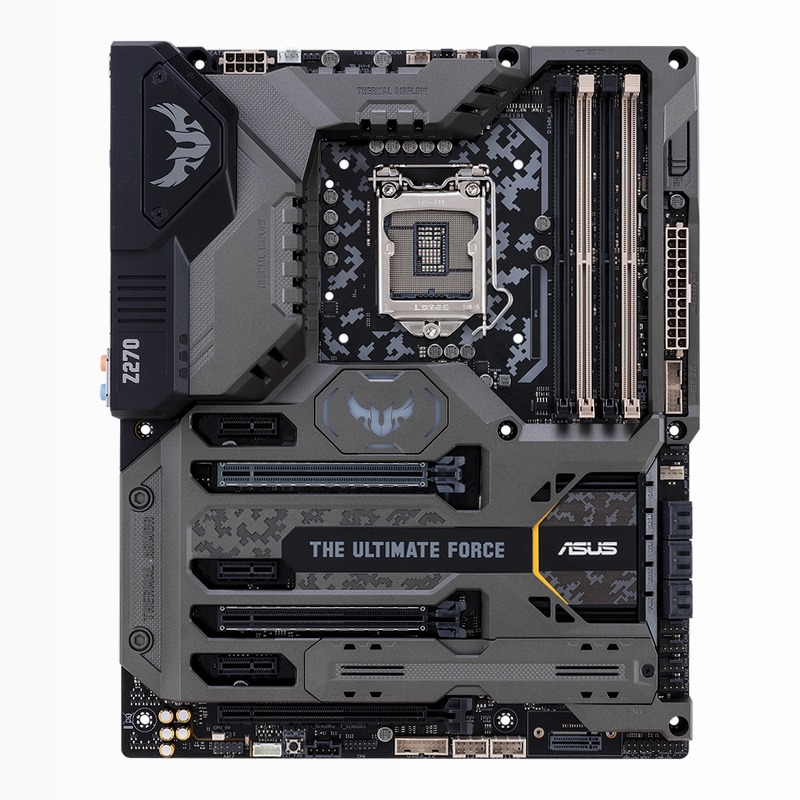

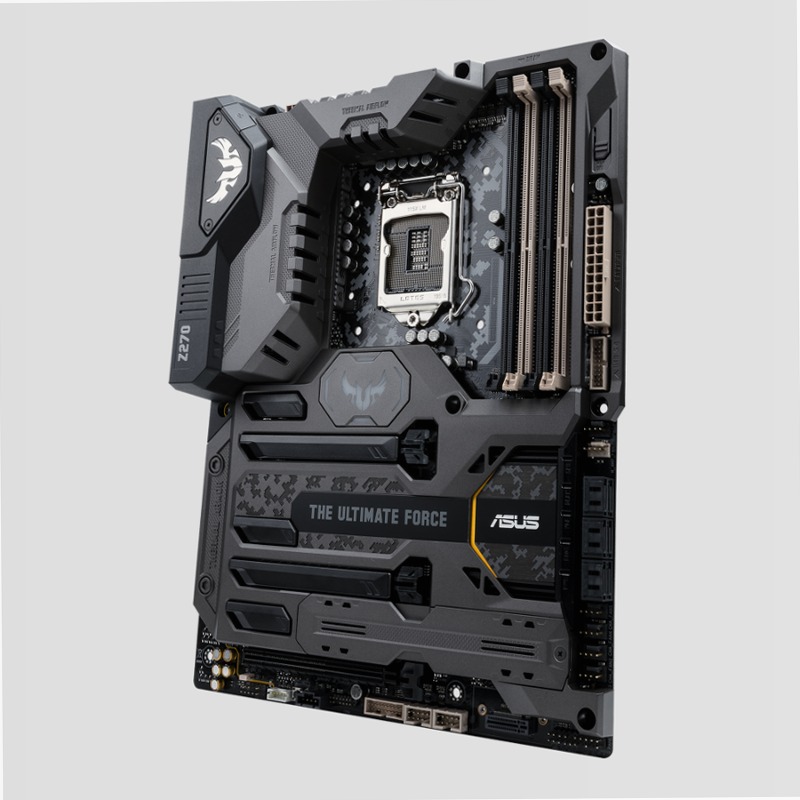

Motherboard Intel® LGA 1151 ATX con Thermal Armor, DDR4 3866, dual M.2, Intel Optane™ Memory Ready, dual Intel Gigabit LAN, USB 3.1 Type-C
- Studiata per l'overclock – Capace di portare al limite estremo le frequenze di memoria e CPU
- Thermal Armor – Resistenza senza pari e massima flessibilità di raffreddamento

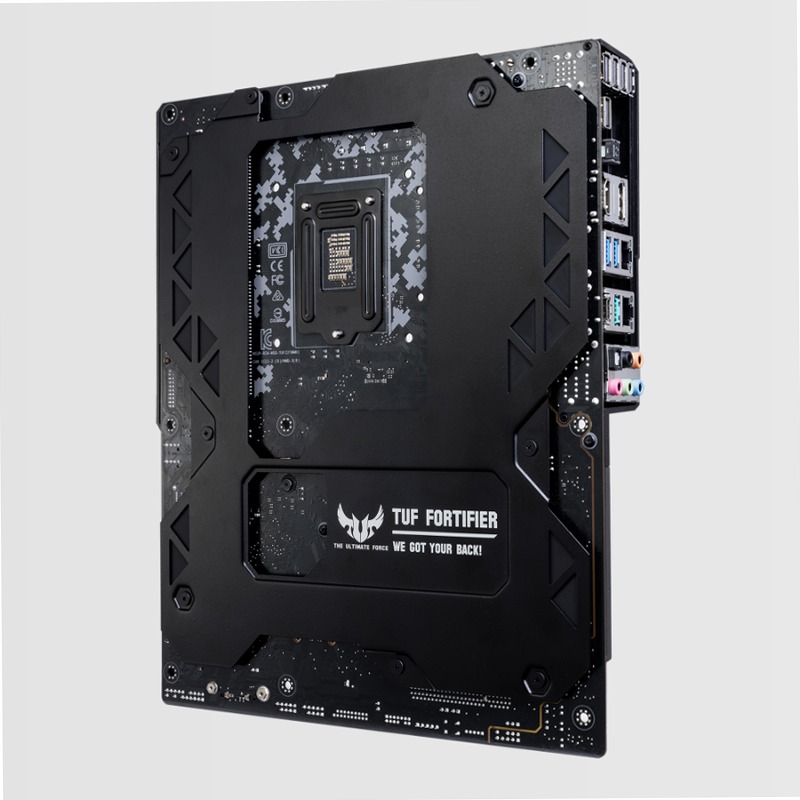

- TUF Fortifier – Backplate rinforzato per prevenire danni ai circuiti
- Thermal Radar 2+ e TUF ICe – Regolazione istantanea delle ventole e sistema di raffreddamento intelligente
- TUF Detective 2 – Informazioni di sistema sempre a portata di mano
- Qualified Vendor List (QVL) – Massima compatibilità con le schede grafiche ad alte prestazioni
- Personalizzazione Massima – Aura Sync RGB LED e moduli stampabili 3D per una migliore personalizzazione del sistema
| Modello | TUF Z270 MARK 1 |
| CPU | Intel® Socket 1151for 7 th /6 th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors,Supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.,Supports Intel® 14nm CPU,* Refer to www.asus.com for CPU support list |
| Chipset | Intel® Z270 |
| Memoria | 4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory,* The maximum memory frequency supported varies by processor.,Supports Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Grafica | Maximum shared memory of 1024 MB,- Supports HDMI with max. resolution 4096 x 2160 @ 24Hz,- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz,Integrated Graphics Processor- Intel® HD Graphics support,DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays,Multi-VGA output support : HDMI/DisplayPort ports |
| Supporto Multi-GPU | Supports NVIDIA® 2-Way SLI™ Technology,Supports AMD 3-Way CrossFireX™ Technology |
| Slot di Espansione | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8),3 x PCIe 3.0/2.0 x1,1 x PCIe 3.0/2.0 x16 (max at x4 mode) |
| Storage | 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)* 1 ,Supports Intel® Smart Response Technology* 3 ,Intel® Rapid Storage Technology 15 support,1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)* 2 ,6 x SATA 6Gb/s port(s), gray,Intel® Optane™ Memory Ready * 4 ,Support Raid 0, 1, 5, 10 |
| LAN | Intel® I211, 1 x Gigabit LAN,Intel® I219V, 1 x Gigabit LAN Controller(s),ASUS Turbo LAN Utility |
| Audio | - Supports up to 32-Bit/192kHz playback * 5 ,- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking,Realtek® ALC S1220A8-Channel High Definition Audio CODEC featuring Crystal Sound 3,- DTS Connect,- Power pre-regulator: Reduces power input noise to ensure consistent performance,- DTS Headphone:X,- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers,- High quality120dBSNR stereo playback outputand113dBSNR recording input(Line-in),- Impedance sense for front and rear headphone outputs,- Front panel audio connector (AAFP), Audio Feature : ,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs,Separate layer for left and right track, ensuring both sound deliver equal quality |
| Porte USB | 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board), ASMedia® USB 3.1 controller : , Intel® Z270 Chipset : ,1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A, Support 3A power output),1 x USB 3.1 Gen 2 port(s) (1 at back panel, , USB Type-C TM , Support 3A power output),6 x USB 3.1 Gen 1 port(s) (2 at back panel, , 4 at mid-board) |
| Caratteristiche Speciali | - 8+4 Digital Phase Power Design,- TUF Components (New Alloy Choke, Ti-Cap. & MOSFET certified by military-standard),- ASUS DIGI+ Power Control Utility,- Thermal Radar 2+,- TUF ICe,"We Got Your Back!" Shape Force,- Dust Defenders,- TUF Fortifier, TUF Features: , Ultimate COOL! Thermal Solution : ,- TUF Thermal Armor, Safe & Stable! Guardian Angel : ,- TUF ESD Guards 2,- TUF LANGuard,- Onboard Button : Power, File Transfer,- Cloud GO!, CPU Installation Tool ,- Three-step simplicity and safety,- ASUS USB BIOS Flashback, TUF ENGINE! Power Design : ,- File Transfer, Overclocking Protection : , ASUS TPU : ,- Auto Tuning,- MemOK!,- Precision Tweaker 2,- ASUS O.C. Tuner,- ASUS O.C. Profile,- Multi-language BIOS, M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) , OC Design - ASUS PRO Clock Technology ,- Full BCLK range for extreme overclocking performance,- PC Cleaner, Special Memory O.C. Design , Turbo App ,- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface,- USB BIOS Flashback,- Aura Lighting Effects Synchronization with compatible ASUS ROG devices,- ASUS Q-Connector,- ASUS C.P.R.(CPU Parameter Recall), AURA : ,- Aura Lighting Control, ASUS EPU : ,- EPU, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger,- Turbo LAN, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-Shield,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM |

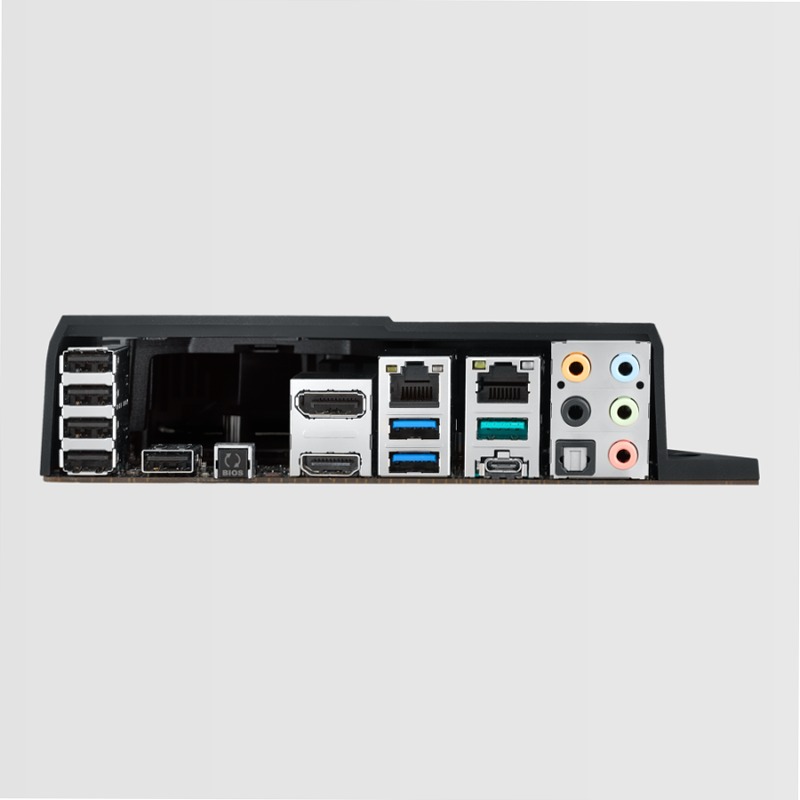

| Porte I/O Posteriori | 1 x USB 3.1 Type-A,1 x USB 3.1 USB Type-C TM ,1 x TUF Detective USB port,2 x USB 3.1 Gen 1,4 x USB 2.0 (one port can be switched to USB BIOS Flashback),1 x USB BIOS Flashback Button(s),1 x DisplayPort,1 x HDMI,2 x LAN (RJ45) port(s),1 x Optical S/PDIF out,5 x Audio jack(s) |
| I/O Interne | 5 x Chassis Fan connector(s) (5 x 4-pin),1 x Assistant Fan connector(s) (1 x 4-pin),3 x T_Sensor Connector,1 x High AMP Fan header (4-pin),2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin),1 x W_Pump+ Header,1 x MemOK! button(s),1 x 5-pin EXT_FAN(Extension Fan) connector,1 x System panel(s) (Q-Connector)(Chassis intrusion header is inbuilt),1 x CPU OV,1 x Thunderbolt header(s),1 x 14-1 pin TPM connector,6 x SATA 6Gb/s connector(s),1 x Power-on button(s),1 x AAFP connector,2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode),1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only),1 x COM port(s) connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x CPU OPT Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s) |

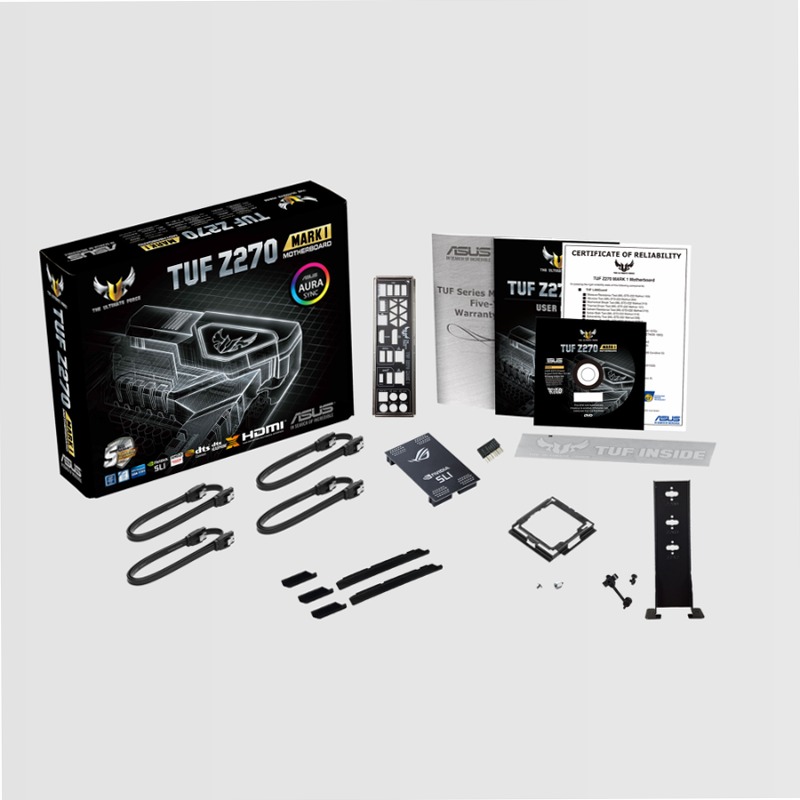

| Accessori | - 2 x PCIe x16 slot dust cover(s),- 3 x PCIe x1 slot dust cover(s),1 x TUF 5 Year Warranty manual(s) (by region),1 x TUF Inside sticker(s)(white), 1 x Accessory Package(s): ,ASUS Q-Shield,1 x Vertical M.2 bracket set,1 x CPU installation tool,1 x SLI HB BRIDGE(2-WAY-M),1 x Q-connector(s) (1 in 1),1 x TUF Certification card(s),User´s manual,4 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Sistema Operativo | * 6 ,Windows® 8.1 64-bit * 6 ,Windows® 7 32-bit * 6 ,Windows® 7 64-bit * 6 ,Windows® 10 64-bit |
| Dimensioni Scheda | ATX Form Factor,12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Note | *1. The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device. *2. vertical *3. These functions will work depending on the CPU installed. *4.Intel® Optane Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. *5. Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio *6. Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset Intel. Intel, modello da TUF Z270 MARK 1, cpu da Intel® Socket 1151for 7 th /6 th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors,Supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.,Supports Intel® 14nm CPU,* Refer to www.asus.com for CPU support list e chipset da Intel® Z270, elementi che ne valorizzano dotazione, prestazioni e fruibilita complessiva
| Sku | 9064 |
| Chipset | Intel |
TUF Z270 MARK 1｜Schede Madri｜ASUS Italia e un prodotto da valutare con attenzione perche le evidenze live raccolte mostrano una presenza ancora attuale sul mercato. La lettura piu interessante riguarda soprattutto i suoi punti di forza, che aiutano a capire per quale tipo di acquisto puo avere davvero senso.
Punti di forza
- TUF Z270 MARK 1｜Schede Madri｜ASUS Italia Passa al contenuto Aiuto accessibilità Gaming Business Non ci sono articoli nel carrello. Shop on ASUS store SHOP AI Notebook Mobile / Console Desktop / Display / AIO Schede Madri / Componenti Networking / IoT / Server Accessori OFFERTE MEMBER FESTIVAL - Risparmia Ora! Omaggio.
- Si colloca nella categoria Schede madri con un posizionamento orientato a chi cerca un prodotto curato, aggiornato e competitivo nella sua fascia.
- Le fonti raccolte online mostrano un interesse attuale e una presenza editoriale ancora rilevante, segnale utile per chi vuole acquistare un prodotto seguito e discusso anche fuori dalla scheda ufficiale.
Criticita
Non emergono criticita ricorrenti documentate con sufficiente chiarezza nelle fonti raccolte.
Perche comprarlo
Vale l'acquisto per chi cerca Schede madri con brand forte, presenza online attuale e una valutazione complessiva di 4.0/5, soprattutto se l'obiettivo e puntare su una proposta solida e ben posizionata.
