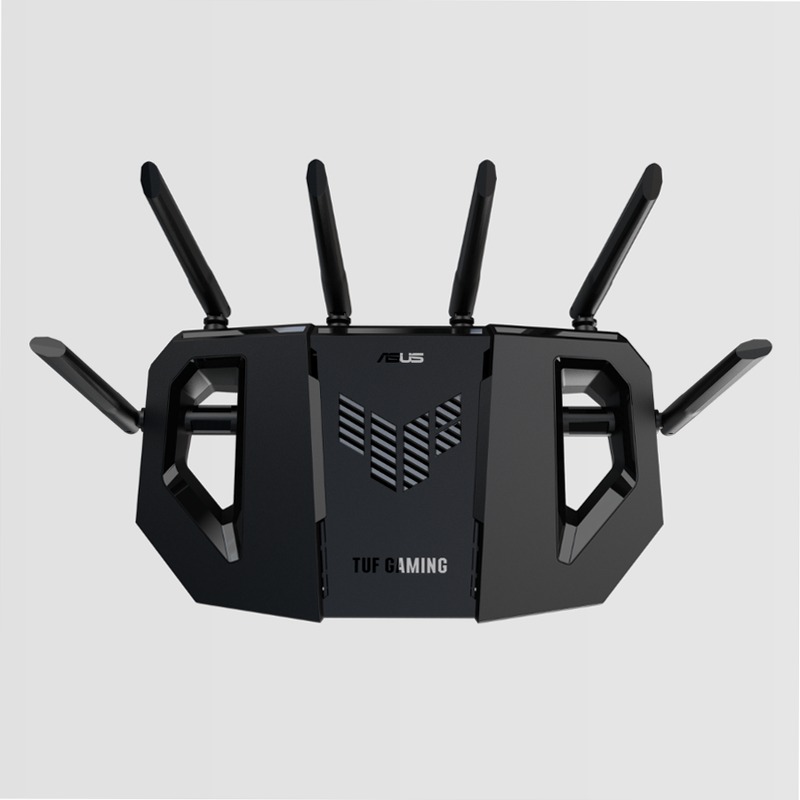

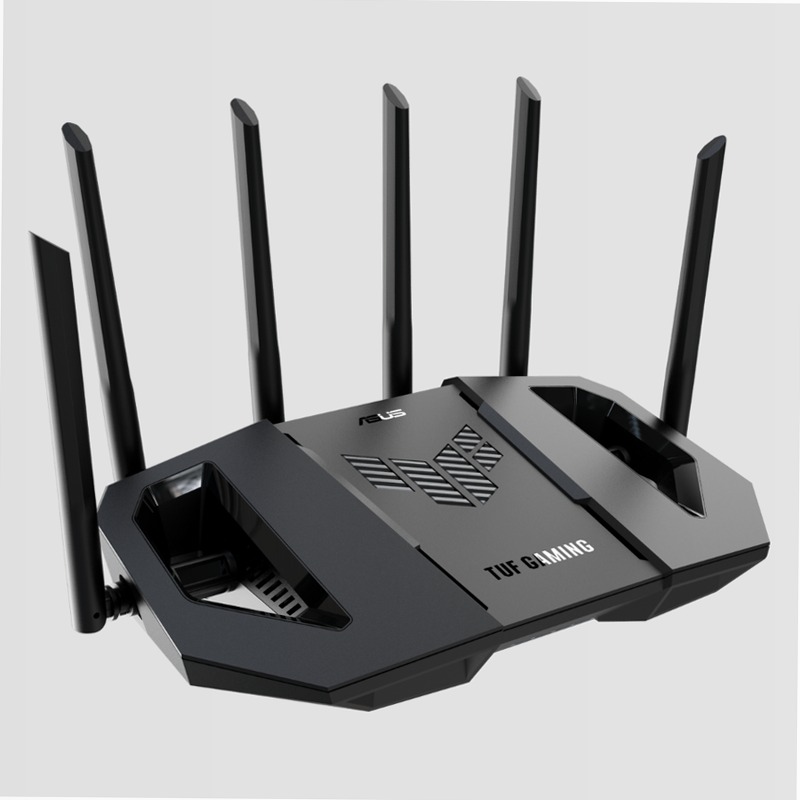

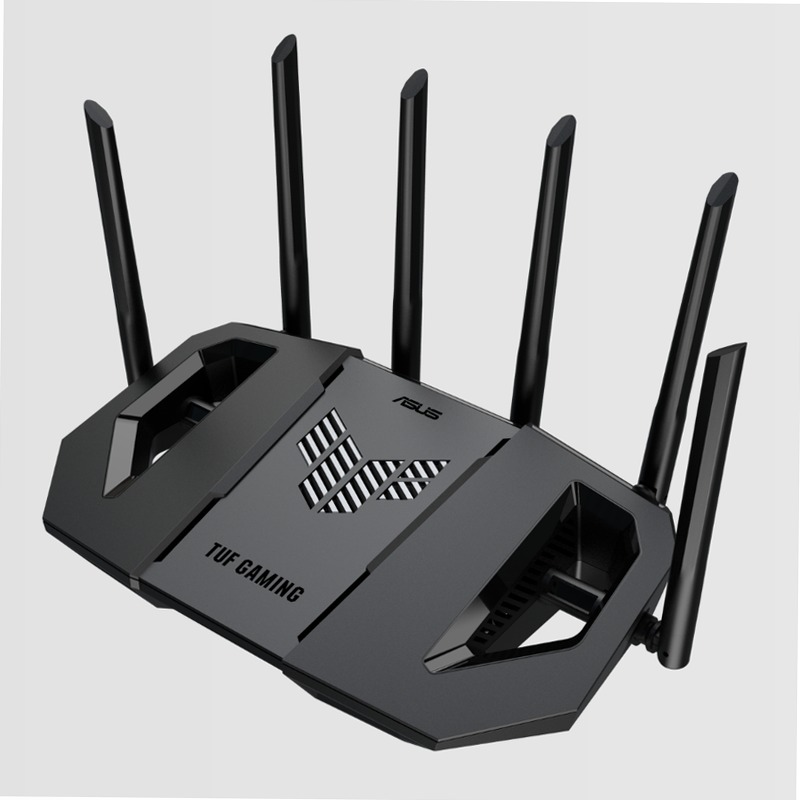

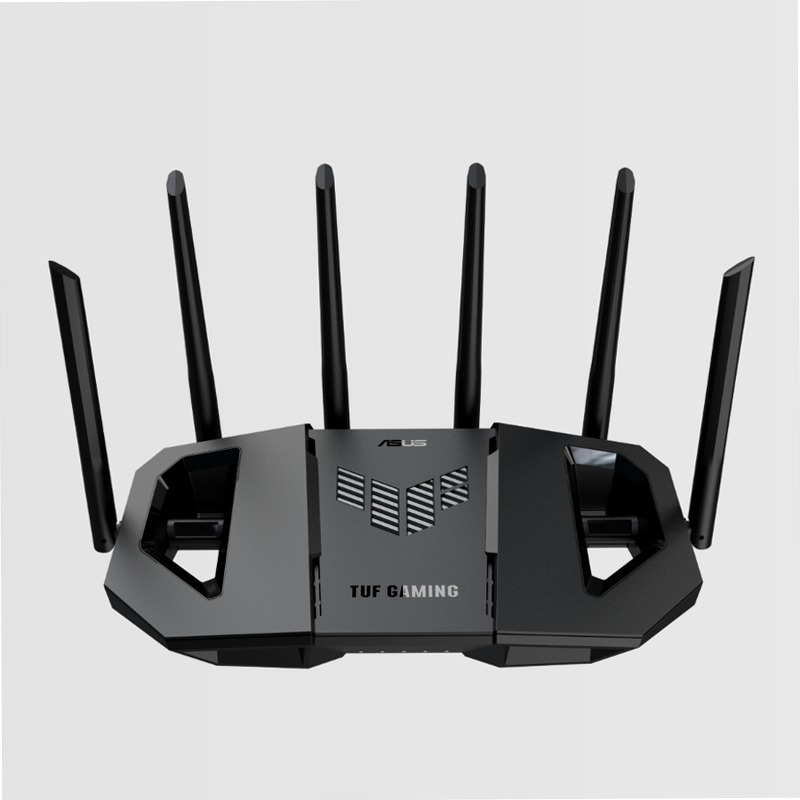

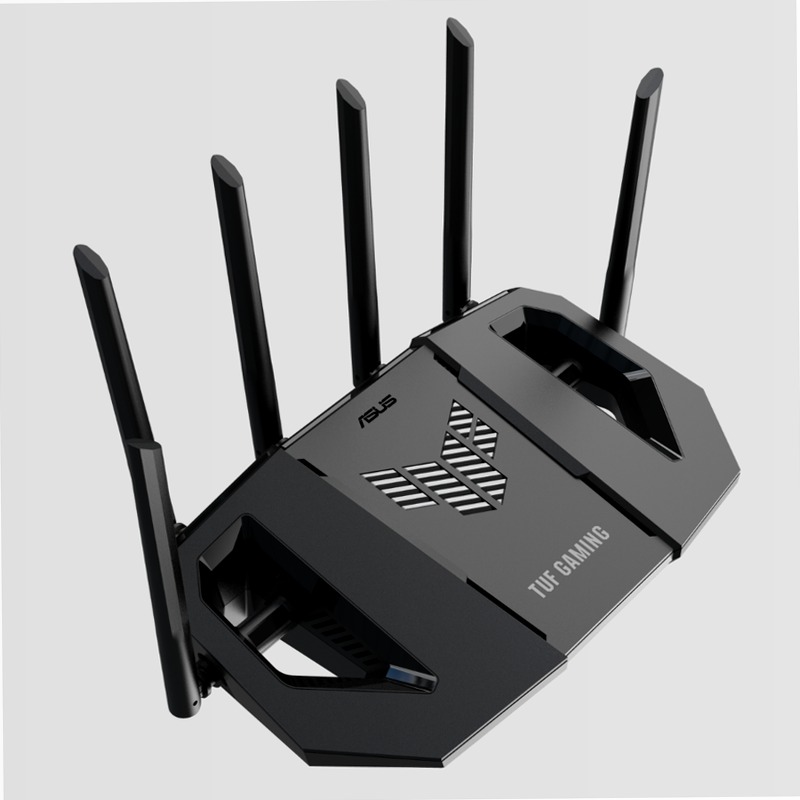

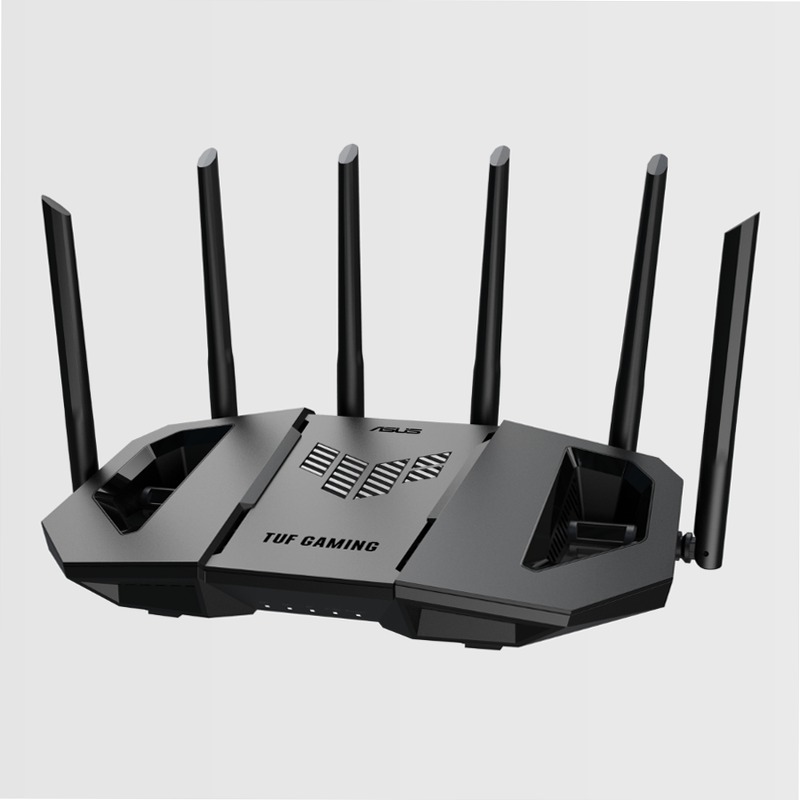

TUF Gaming BE9400 - Router Gaming ASUS 5764Mbps
Descrizione
Il TUF Gaming BE9400 è un router WiFi avanzato progettato per i giocatori e gli utenti che richiedono connessioni veloci e affidabili. Con supporto per le ultime standard WiFi 7 (802. 11be), WiFi 6 (802.
11ax) e WiFi 5 (802. 11ac), offre velocità massime fino a 5764 Mbps su canale 6GHz, 2882 Mbps su canale 5GHz e 688 Mbps su canale 2. 4GHz. Caratteristiche hardware: antenne esterne fisse x 6, processore quad-core a 1. 5 GHz, memoria flash di 256 MB e RAM di 1 GB Funzionalità avanzate: OFDMA, Beamforming, 4096-QAM per aumentare la velocità dei dati Modi di operazione: Repeater Mode, Media Bridge Mode, Access Point Mode, AiMesh Node Mode e Wireless Router Mode Può supportare fino a 3 reti guest su canali 2. 4 GHz e 5 GHz con limiti temporali e crittografia WPA/WPA2/WPA3 Funzionalità di sicurezza: AiProtection Pro, firewall, scansione della sicurezza, protezione DNS-over-TLS, SSH, pass-through IPSec, L2TP, PPTP, WireGuard, supporto Surfshark e NordVPN Il TUF Gaming BE9400 è perfetto per chi cerca un router robusto con funzionalità avanzate per giocatori e utenti di rete.
| Modello | TUF Gaming BE9400 (TUF-BE9400) |
| Network Standard | IPv6 IPv4 WiFi 7 (802.11be) WiFi 6 (802.11ax) WiFi 5 (802.11ac) WiFi 4 (802.11n) IEEE 802.11g IEEE 802.11b IEEE 802.11a |
| Product Segment | BE9400 ultimate BE performance : 688+2882+5764 Mbps |
| WiFi Data Rate | WiFi 7 (802.11be) (6GHz): up to 5764 Mbps WiFi 7 (802.11be) (5GHz): up to 2882 Mbps WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps |
| Antenna | External fixed antenna x 6 |
| Transmit / Receive | 6GHz 2x2 5GHz 2x2 2.4GHz 2x2 |
| Processor | 1.5GHz Quad-core Processor |
| Memory | 256 MB Flash and 1 GB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth |
| Operating Frequency | 6 GHz 5 GHz 2.4 GHz |
| Operating Mode | Repeater Mode Media Bridge Mode Access Point Mode AiMesh Node Mode Wireless Router Mode |

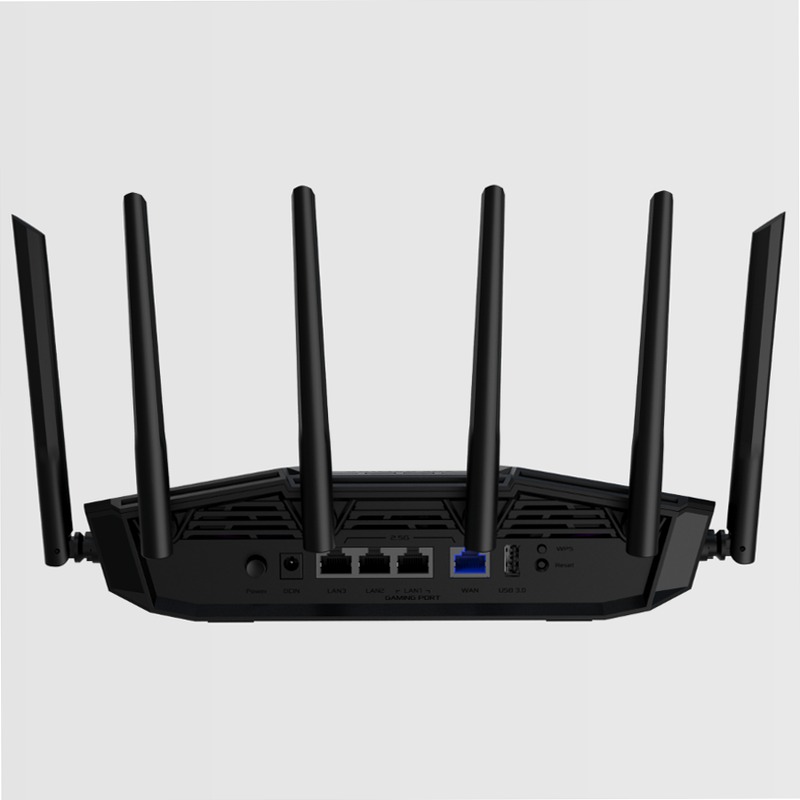

| I/O Ports | 1 x 2.5Gbps for WAN 3 x 2.5Gbps for LAN 1 x USB 3.2 Gen1 |
| Buttons | WPS Button, Reset Button, Power Button |
| LED Indicator | WAN(Internet) x1 6GHz x 1 5GHz x 1 2.4GHz x1 Power x1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 2.5 A current |
| Package Content | TUF-BE9400 Tri Band Gaming Router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 764 g |
| Product Dimensions | 320 x 179 x 191 mm |
| AiMesh | AiMesh, Primary AiMesh router, AiMesh node |
| Game | Game Boost / Acceleration, Mobile Game Mode, Gear Accelerator, OpenNAT (Game Profile), Gaming Port |
| Parental Control | Web & Apps Filters, Time Scheduling, Safe Browsing, Parental Control Customized Internet schedule, • Maximum Parental Control Profile : 64 |
| Guest Network | Guest Network, Support Guest Network, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz: 3, Guest Network Connection Time Limit, Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal |
| Security | AiProtection Pro, VPN, WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System & OWE, WPS, Sì, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64 |
| AiProtection | AiProtection, AiProtection, Malicious site blocking, Two-Way IPS |
| VPN | Instant Guard, VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server OVPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark, Support Nord VPN |
| Traffic Control | Adaptive QoS, Bandwidth Monitor, Bandwidth limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, Real-time traffic monitor, Wired Traffic Monitor, Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, Website history |
| WAN | • IPSec • Static IP • Automatic IP • L2TP • PPTP • PPPoE Internet Connection Type :, No, 3G/4G LTE dongle, 4G / 5G Auto Mobile Tethering, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, • PPPoE Relay • SIP Pass-Through • H.323 Pass-Through • RTSP Pass-Through • IPSec Pass-Through • L2TP Pass-Through • PPTP Pass-Through |
| LAN | DHCP Server, IPTV, Manually assign IP address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL) |
| Wireless | MU-MIMO, UTF-8 SSID, WiFi MAC address filter, • Maximum MAC Filters : 64, Wireless scheduler, Airtime fairness, RADIUS Server, Universal beamforming |
| USB application | 4G / 5G Auto Mobile Tethering, • FAT32 • ext4 • ext3 • ext2 • vFAT • NTFS • HFS+, Safely Remove disk, Download master, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder privileges |
| User Interface | WEB: ASUSWRT, APP: ASUS Router APP |
| Administration | Configuration backup and restore, Diagnosis tools, Feedback system, System log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono porte usb da 1. 1, porte wan da 2. 2, tipo router router. router e velocità max mbps da da 5401 a 6600 Mbps. 5764, elementi che ne valorizzano dotazione, prestazioni e fruibilita complessiva
