TUF B365M-PLUS GAMING - Specifiche Generali｜Schede Madri｜ASUS Italia Intel ATX – 10943

Specifiche dettagliate di TUF B365M-PLUS GAMING Specifiche Generali，CPU:Intel® Socket 11519th / 8th Gen Intel ® Core™, Pentium ® Gold and Celeron ® Processors,Supports Intel® Turbo Boost Technology 2. 0,* The Intel® Turbo Boost Technology 2. 0 support depends on the CPU types.,Supports Intel® 14nm CPU,* Refer to www.

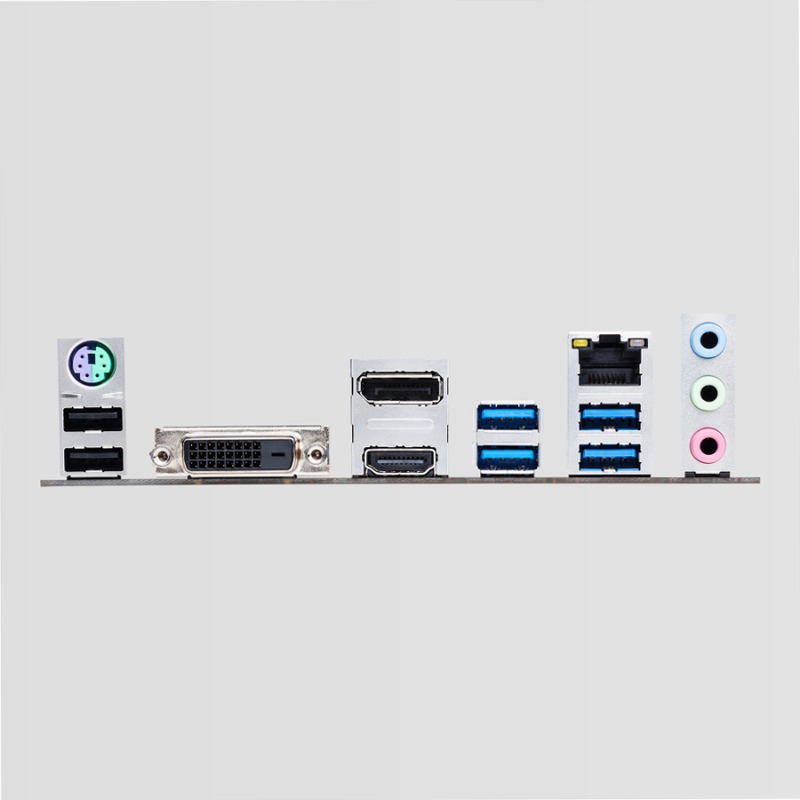

Asus. Com for CPU support list、CPU:LGA1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors、Chipset:B365、Chipset:Intel® B365、Memoria: Intel® B365 Chipset ,4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory,* The maximum memory frequency supported varies by processor,** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.,Supports Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture,* Refer to www. Asus. Com for the Memory QVL (Qualified Vendors Lists).、Expansion Slots:1 x PCIe 3. 0 x16 + 1 x PCIe 3. 0 x16 (Max. X4)、Audio:ALC1200、Grafica:- Supports DisplayPort 1. 2 with max. Resolution 4096 x 2304 @ 60 Hz,Multi-VGA output support : HDMI/DVI-D/DisplayPort ports,Supports up to 3 displays simultaneously,Integrated Graphics Processor- Intel® HD Graphics support,- Supports HDMI with max. Resolution 4096 x 2160 @ 30Hz,Maximum shared memory of 1024 MB (for iGPU exclusively),Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™,- Supports DVI-D with max. Resolution 1920 x 1200 @ 60Hz、Supporto Multi-GPU:Supports AMD CrossFireX™ Technology、Operating System:Windows 10 64bit、Form Factor:24. 4cm x 24. 1cm、Slot di Espansione:1 x PCIe 3. 0 x16 (max at x4 mode),1 x PCIe 3. 0/2. 0 x1,1 x PCIe 3. 0 x16 (x16 mode)、Storage: Intel® B365 Chipset : ,1 x M. 2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3. 0 x 4 mode),6 x SATA 6Gb/s port(s), gray,1 x M. 2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3. 0 x 4 mode),Support Raid 0, 1, 5, 10,Intel® Optane™ Memory Ready、LAN:Intel® I219V, 1 x Gigabit LAN,TUF LANGuard、Audio:Realtek® ALC12008-Channel High Definition Audio CODEC,- Supports : Jack-detection, Front Panel Jack-retasking, Audio Feature : ,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.、Porte USB: Intel® B365 Chipset : ,6 x USB 3. 1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board),6 x USB 2. 0/1. 1 port(s) (2 at back panel, , 4 at mid-board)、Caratteristiche Speciali:- ASUS Safe Slot core+: PCIe slot fortified with a stainless-steel brace,- ASUS Fan Xpert 2+,- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M. 2 Heat-sink solution, M. 2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) ,- Optimem (Improved DDR4 stability),- PC Cleaner, ASUS TUF PROTECTION ,- ASUS ESD Guard: Enhanced ESD protection,- ASUS DIGI+ VRM: Precision control for stable power,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!, ASUS OptiMem： , ASUS EPU : ,- EPU, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger, ASUS Quiet Thermal Solution :, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM、Porte I/O Posteriori:4 x USB 3. 2 Gen 1 Type-A up to 5Gbps,1 x 8-channel Audio I/O,1 x DVI-D,2 x USB 2. 0,1 x PS/2 keyboard/mouse combo port(s),1 x LAN (RJ45) port(s),1 x DisplayPort,1 x HDMI、I/O Interne:1 x USB 3. 2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3. 2 Gen 1 port(s) (19-pin, moss green),1 x Addressable RGB header,2 x M. 2 Socket 3 for M Key, type 2242/2260/2280 devices,1 x Aura RGB Strip Header,6 x SATA 6Gb/s connector(s),1 x 8-pin EATX 12V Power connectors,2 x Chassis Fan connector(s),1 x System panel connector,1 x CPU Fan connector(s),2 x USB 2. 0 connector(s) support(s) additional 4 USB 2. 0 port(s),1 x COM port(s) connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s)、Accessori:2 x M. 2 screws,2 x SATA 6Gb/s cable(s),1 x TUF GAMING Sticker,1 x TUF Certification card(s),User´s manual,I/O Shield,1 x Supporting DVD、BIOS:128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3. 1, ACPI 6. 1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information、Sistema Operativo:Windows® 10 64-bit、Dimensioni Scheda:9. 6 inch x 9. 5 inch ( 24. 4 cm x 24. 1 cm ),mATX Form Factor、Soluzione di Gestione:WOL by PME, PXE…
