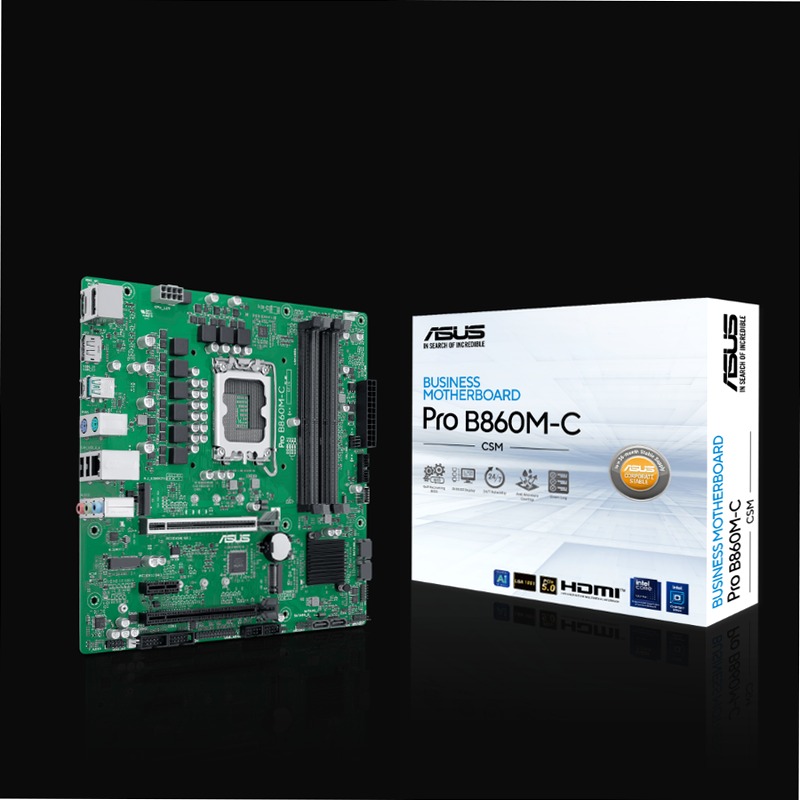

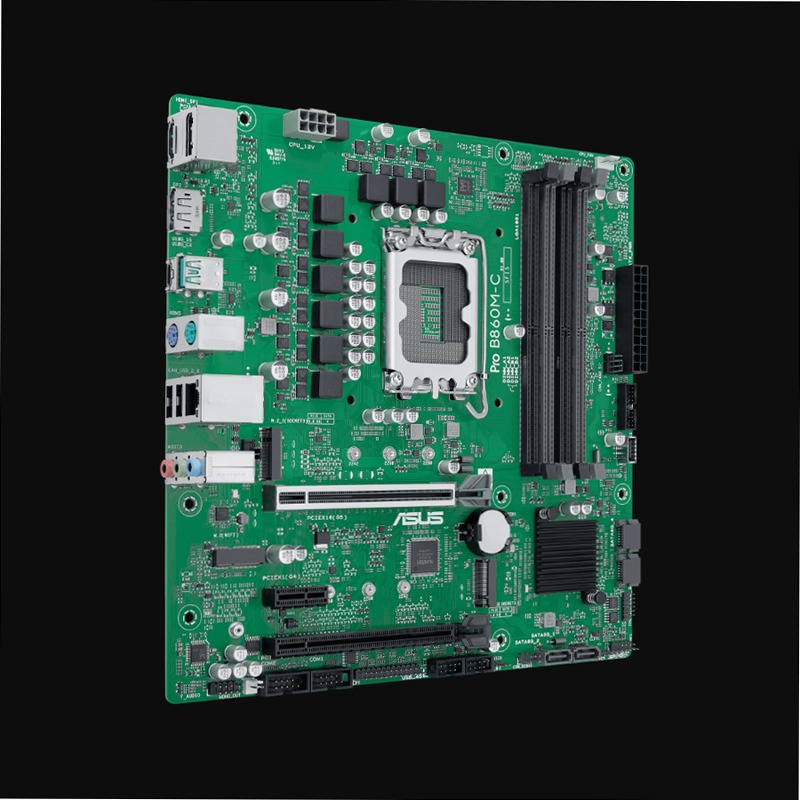

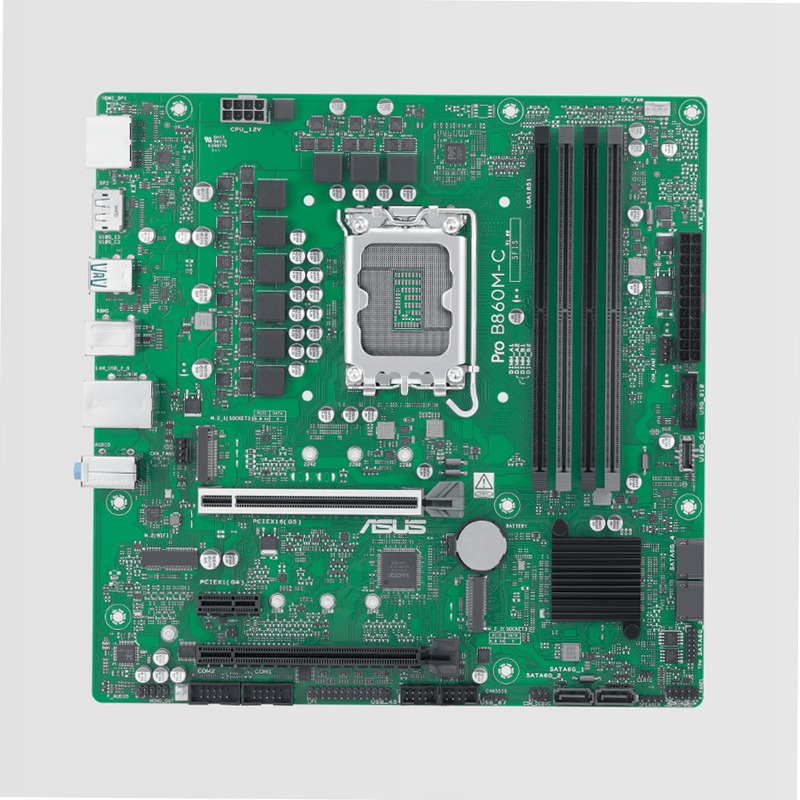

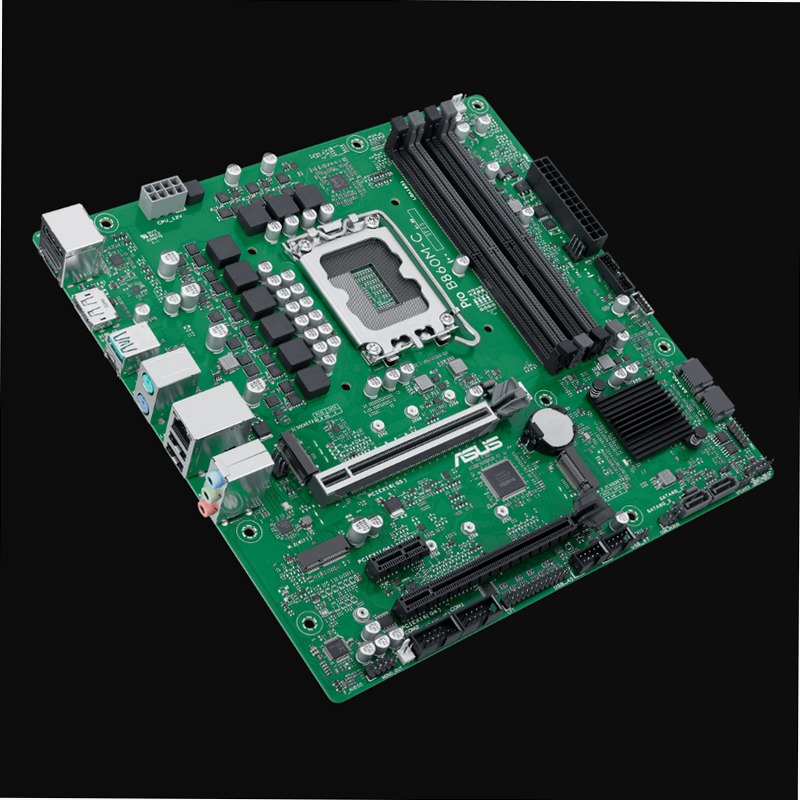

Pro B860M-C-CSM - Scheda Madre ASUS Intel – 32263
Descrizione
La scheda madre Pro B860M-C-CSM di ASUS è progettata per tecnologi che richiedono prestazioni elevate. Supporta processori Intel Core Ultra, DDR5 e PCIe 5.
0, offrendo un livello superiore di sicurezza e compatibilità. Ideale per gli appassionati di tecnologia che cercano un sistema affidabile e potente.
| Modello | Pro B860M-C-CSM |
| News & Updates | Please see the updated OS support requirements for the Intel ® Core Ultra 200S series below: •Intel ® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel ® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check and download the latest updates. |
| CPU | Supports Intel ® Core ™ Ultra Processors (Series 2), LGA1851* Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** * Refer to for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel ® B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5, dual DIMM clips Supports up to 8666+ MT/s(OC) , Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*" Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit . * *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 2 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** DP1 Supports max. 4K@60Hz and DP2 Supports max. 8K@30Hz as all specified in DisplayPort 1.4 *** Supports 4K@60Hz as specified in HDMI 2.1. ***** VGA resolution support depends on processors' or graphic cards' resolution. ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Intel ® Core™ Ultra Processors(series 2)* | 1 x PCIe 5.0 x16 SafeSlot Intel ® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to for the list of supported peripherals. |
| Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* | Intel ® Core™ Ultra Processors(series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel ® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports * Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Intel ® 1Gb ASUS LANGuard *With Intel ® I219-V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3. |
| Wireless & Bluetooth | M.2 slot only 2230 (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| Rear USB (Total 4 ports) | 1 x USB 10Gbps port (1 x USB Type-C ® ) 1 x USB 10Gbps port (1 x Type-A ) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C ® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Realtek 7.1 Surround Sound High Definition Audio CODEC | * - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

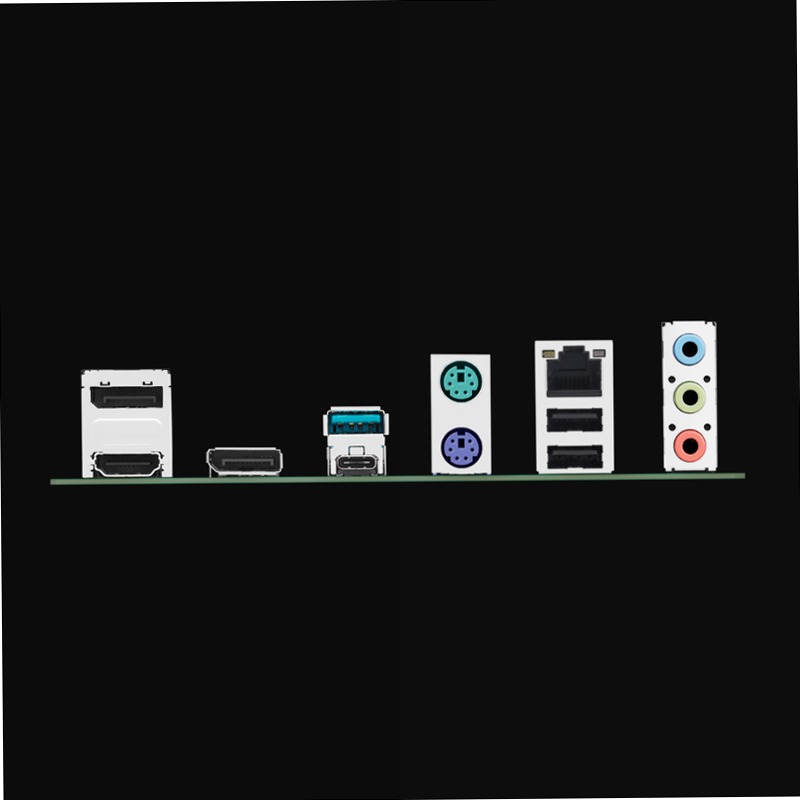

| Back Panel I/O Ports | 1 x USB 10Gbps port (1 x USB Type-C ® ) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A ) 2 x DisplayPort 1 x HDMI™ port 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port 1 x Intel ® 1Gb Ethernet 3 x Audio jacks |
| Fan and Cooling Related | 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C ® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-Out Audio header (with Amp IC) 1 x M.2 slot (Key E) 1 x Speaker header 1x SMBUS header 1 x 10-1 pin Front Panel System header 1x SPI TPM header(14-1 pin) |
| ASUS Q-Design | - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box headers - Dual DIMM clips - SafeSlot Bespoke Motherboard Design & Business Focused Features - ASUS Self-Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS Kit* - Anti-moisture coating - BIOS EZ Deploy - 24/7 reliability - Overcurrent protection TXT support * Please contact local FAE for Commercial BIOS kit. |
| ASUS Exclusive Software | ASUS DriverHub UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS MyHotkey |
| IT Management software supported | - ASUS Control Center Express (ACCE) Ready for ASUS DASH LAN Card* 1 x SMBUS header * ASUS DASH LAN Card is sold separately. |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Cables | 2 x SATA 6Gb/s cables Miscellaneous 1 x Screw package for M.2 SSD 1 x I/O Shield 1 x M.2 Key E screw package Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset Intel. Intel, modello da Pro B860M-C-CSM, news & updates da Please see the updated OS support requirements for the Intel ® Core Ultra 200S series
| Sku | 32263 |
| Mpn | 32263 |
| Chipset | Intel |
Pro B860M-C-CSM｜Schede Madri｜ASUS Italia e un prodotto da valutare con attenzione perche le evidenze live raccolte mostrano una presenza ancora attuale sul mercato. La lettura piu interessante riguarda soprattutto i suoi punti di forza, che aiutano a capire per quale tipo di acquisto puo avere davvero senso.
Punti di forza
- Pro B860M-C-CSM｜Schede Madri｜ASUS Italia Passa al contenuto Aiuto accessibilità Gaming Business Non ci sono articoli nel carrello. Shop on ASUS store SHOP AI Notebook Mobile / Console Desktop / Display / AIO Schede Madri / Componenti Networking / IoT / Server Accessori OFFERTE MEMBER FESTIVAL - Risparmia Ora! Omaggio.
- Si colloca nella categoria Schede madri con un posizionamento orientato a chi cerca un prodotto curato, aggiornato e competitivo nella sua fascia.
- Le fonti raccolte online mostrano un interesse attuale e una presenza editoriale ancora rilevante, segnale utile per chi vuole acquistare un prodotto seguito e discusso anche fuori dalla scheda ufficiale.
Criticita
Non emergono criticita ricorrenti documentate con sufficiente chiarezza nelle fonti raccolte.
Perche comprarlo
Vale l'acquisto per chi cerca Schede madri con brand forte, presenza online attuale e una valutazione complessiva di 4.0/5, soprattutto se l'obiettivo e puntare su una proposta solida e ben posizionata.
