Pro A620M-C-CSM - Specifiche Generali｜Schede Madri｜ASUS Italia AMD AM5 – 23675
Descrizione
Pro A620M-C-CSM is equipped with excellent features, including enhanced security, reliability, manageability and serviceability, which will bring users maximizing performance, stability and compatibility for the very best DIY PC experiences.
| Modello | Pro A620M-C-CSM |
| News & Updates | Socket AM5 |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Supports up to AMD 120W CPU * Refer to www.asus.com for CPU support list. |
| Chipset | AMD A620 Chipset |
| Memory | 2 x DIMM slots, Max. 128GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit . * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x VGA port 1 x DVI-D port 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| AMD Ryzen™ 9000 & 7000 Series Desktop Processors* | 1 x PCIe 4.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD A620 Chipset 2 x PCIe 3.0 x1 slots 1 x PCI slot * Please check the PCIe bifurcation table on the support site ( ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to for the list of supported peripherals. |
| Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. |
| Ethernet | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| Rear USB (Total 6 ports) | 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C ® ) 1 x USB 3.2 Gen 1 (5G) port (1 x Type-A) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Realtek 7.1 Surround Sound High Definition Audio CODEC* | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

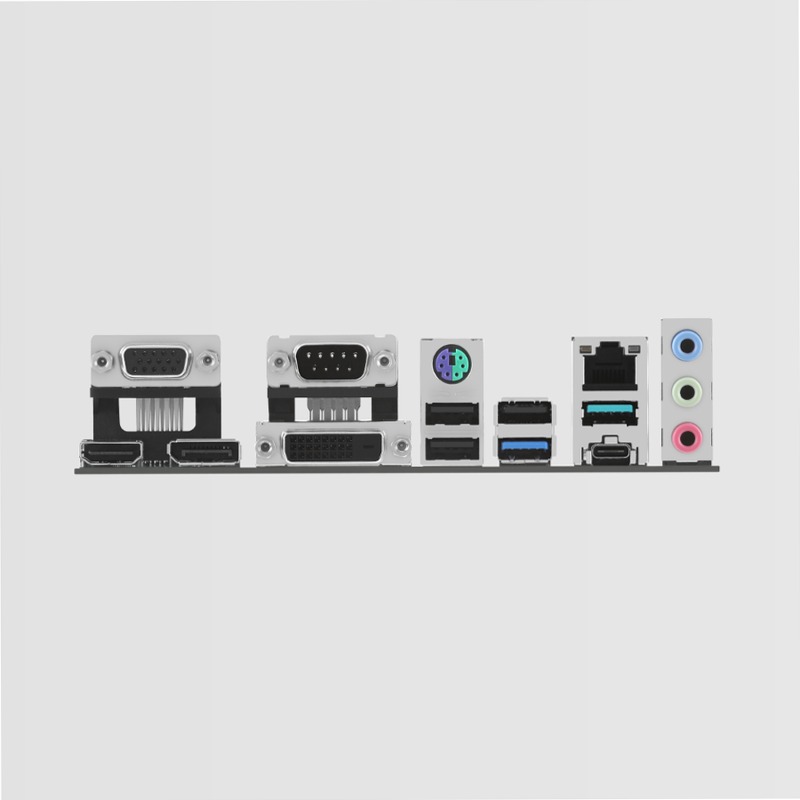

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C ® ) 1 x USB 3.2 Gen 1 (5G) port (1 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x VGA port 1 x DVI-D port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 1 x COM port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Fan and Cooling related | 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| ASUS Q-Design | - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection * Please contact local FAE for commercial BIOS kit. |
| ASUS Exclusive Software | IT Management software supported - ASUS Control Center Express (ACCE) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

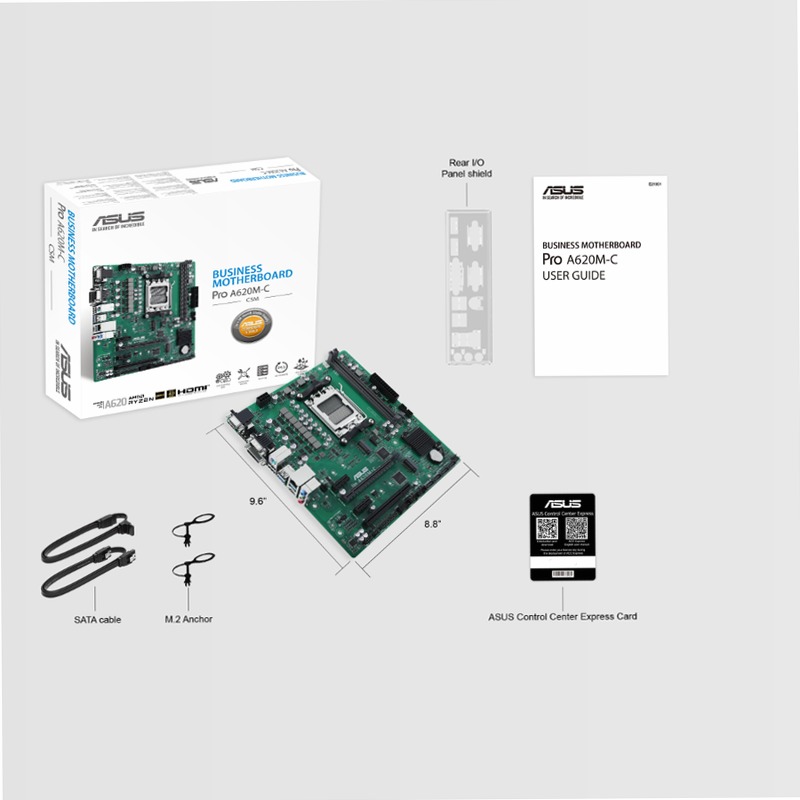

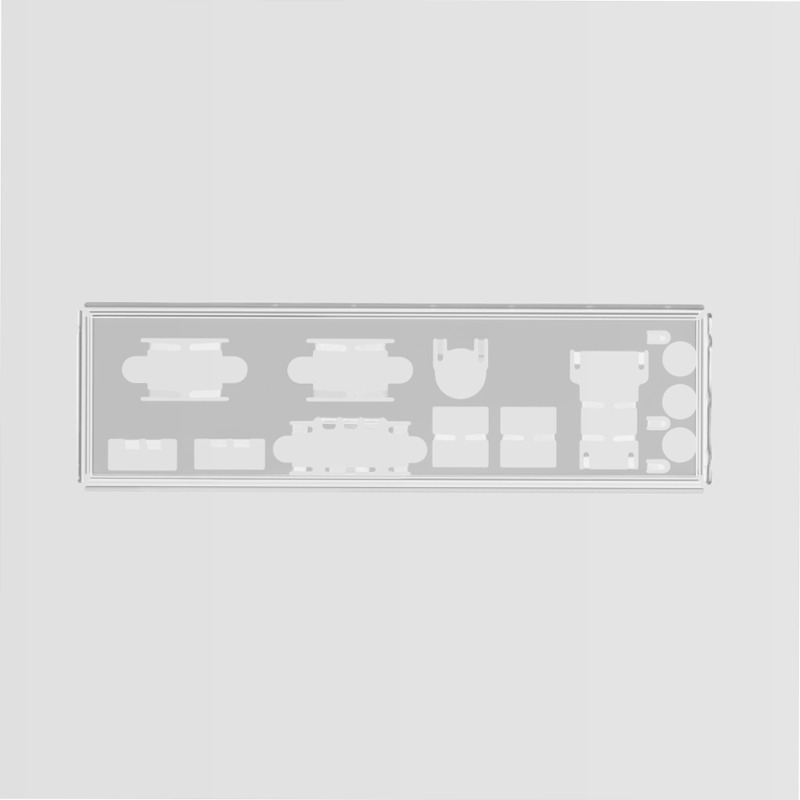

| Cables | 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 Anchors Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Operating System | Windows ® 11, Windows ® 10 64-bit |
| Form Factor | mATX Form Factor 9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm ) |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset AMD. AMD, socket cpu da AM5. AM5, modello da Pro A620M-C-CSM e news & updates da Socket AM5, elementi che ne valorizzano dotazione, prestazioni e fruibilita complessiva
| Sku | 23675 |
| Mpn | 23675 |
| Chipset | AMD |
| Socket CPU | AM5 |
Pro A620M-C-CSM｜Schede Madri｜ASUS Italia e un prodotto da valutare con attenzione perche le evidenze live raccolte mostrano una presenza ancora attuale sul mercato. La lettura piu interessante riguarda soprattutto i suoi punti di forza, che aiutano a capire per quale tipo di acquisto puo avere davvero senso.
Punti di forza
- Pro A620M-C-CSM｜Schede Madri｜ASUS Italia Passa al contenuto Aiuto accessibilità Gaming Business Non ci sono articoli nel carrello. Shop on ASUS store SHOP AI Notebook Mobile / Console Desktop / Display / AIO Schede Madri / Componenti Networking / IoT / Server Accessori OFFERTE MEMBER FESTIVAL - Risparmia Ora! Omaggio.
- Si colloca nella categoria Schede madri con un posizionamento orientato a chi cerca un prodotto curato, aggiornato e competitivo nella sua fascia.
- Le fonti raccolte online mostrano un interesse attuale e una presenza editoriale ancora rilevante, segnale utile per chi vuole acquistare un prodotto seguito e discusso anche fuori dalla scheda ufficiale.
Criticita
Non emergono criticita ricorrenti documentate con sufficiente chiarezza nelle fonti raccolte.
Perche comprarlo
Vale l'acquisto per chi cerca Schede madri con brand forte, presenza online attuale e una valutazione complessiva di 4.0/5, soprattutto se l'obiettivo e puntare su una proposta solida e ben posizionata.
