PRIME Z370M-PLUS II - Specifiche Generali｜Schede Madri｜ASUS Italia Intel – 10453
Descrizione
Specifiche dettagliate di PRIME Z370M-PLUS II Specifiche Generali，CPU:Intel® Socket 1151for 9 th / 8 th Generation Pentium®/Celeron® Processors,Supports Intel® Turbo Boost Technology 2. 0,* The Intel® Turbo Boost Technology 2. 0 support depends on the CPU types.,Supports Intel® 14nm CPU,* Refer to www.
Asus. Com for CPU support list、CPU:Intel® Socket 1151for 9 th / 8 th Generation Pentium®/Celeron® Processors,Supports Intel® Turbo Boost Technology 2. 0,* The Intel® Turbo Boost Technology 2. 0 support depends on the CPU types.,Supports Intel® 14nm CPU,* Refer to www. Asus. Com for CPU support list、Chipset:Intel® Z370、Chipset:Intel® Z370、Memoria:4 x DIMM, Max. 64GB, DDR4 4000(O. C.)/3866(O. C.)/3733(O. C.)/3600(O. C.)/3466(O. C.)/3400(O. C.)/3333(O. C.)/3300(O. C.)/3200(O. C.)/3000(O. C.)/2800(O. C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *,* The maximum memory frequency supported varies by processor.,Supports Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture,* Refer to www. Asus. Com for the Memory QVL (Qualified Vendors Lists).、Memoria:4 x DIMM, Max. 64GB, DDR4 4000(O. C.)/3866(O. C.)/3733(O. C.)/3600(O. C.)/3466(O. C.)/3400(O. C.)/3333(O. C.)/3300(O. C.)/3200(O. C.)/3000(O. C.)/2800(O. C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *,* The maximum memory frequency supported varies by processor.,Supports Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture,* Refer to www. Asus. Com for the Memory QVL (Qualified Vendors Lists).、Grafica:Integrated Graphics Processor- Intel® HD Graphics support,- Supports HDMI with max. Resolution 4096 x 2160 @ 30Hz,Maximum shared memory of 1024 MB (for iGPU exclusively),Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™,Multi-VGA output support : HDMI/DVI-D ports,- Supports DVI-D with max. Resolution 1920 x 1200 @ 60Hz、Grafica:Integrated Graphics Processor- Intel® HD Graphics support,- Supports HDMI with max. Resolution 4096 x 2160 @ 30Hz,Maximum shared memory of 1024 MB (for iGPU exclusively),Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™,Multi-VGA output support : HDMI/DVI-D ports,- Supports DVI-D with max. Resolution 1920 x 1200 @ 60Hz、Supporto Multi-GPU:Supports AMD CrossFireX™ Technology、Supporto Multi-GPU:Supports AMD CrossFireX™ Technology 、Slot di Espansione:1 x PCIe 3. 0/2. 0 x16 (x16 or x8+x4+x4) *,1 x PCIe 3. 0/2. 0 x16 (max at x4 mode),2 x PCIe 3. 0/2. 0 x1、Slot di Espansione:1 x PCIe 3. 0/2. 0 x16 (x16 or x8+x4+x4) *,1 x PCIe 3. 0/2. 0 x16 (max at x4 mode),2 x PCIe 3. 0/2. 0 x1、Storage: Intel® Z370 Chipset : ,1 x M. 2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3. 0 x 4 mode)* 1 ,1 x M. 2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3. 0 x 4 mode),4 x SATA 6Gb/s port(s), gray, Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) ,PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M. 2 X16 series Card,Support Raid 0, 1, 5, 10,Intel® Optane™ Memory Ready、Storage: Intel® Z370 Chipset : ,1 x M. 2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3. 0 x 4 mode)* 1 ,1 x M. 2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3. 0 x 4 mode),4 x SATA 6Gb/s port(s), gray, Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) ,PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M. 2 X16 series Card,Support Raid 0, 1, 5, 10,Intel® Optane™ Memory Ready、LAN:Intel® I219V, 1 x Gigabit LAN Controller(s),Anti-surge LANGuard、LAN:Intel® I219V, 1 x Gigabit LAN Controller(s),Anti-surge LANGuard、Audio:Realtek® ALC8878-Channel High Definition Audio CODEC,- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.,- Supports : Jack-detection, Front Panel Jack-retasking, Audio Feature : ,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity、Audio:Realtek® ALC8878-Channel High Definition Audio CODEC,- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.,- Supports : Jack-detection, Front Panel Jack-retasking, Audio Feature : ,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity、Porte USB:7 x USB 3. 1 Gen 1 port(s) (4 at mid-board), Intel® Z370 Chipset : ,6 x USB 2. 0 port(s) (4 at mid-board)、Porte USB:7 x USB 3. 1 Gen 1 port(s) (4 at mid-board), Intel® Z370 Chipset : ,6 x USB 2. 0 port(s) (4 at mid-board)、Caratteristiche Speciali:- ASUS O. C. Tuner, M. 2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) ,- Optimem (Improved DDR4 stability),- Stylish Fanless Design Heat-sink solution & MOS Heatsink,- ASUS Fan Xpert 4 Core, ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!, ASUS OptiMem： , ASUS EPU : ,- EPU, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger, ASUS Quiet Thermal Solution :, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM、Caratteristiche Speciali:- ASUS O. C. Tuner, M. 2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) ,- Optimem (Improved DDR4 stability),- Stylish Fanless Design Heat-sink solution & MOS Heatsink,- ASUS Fan Xpert 4 Core, ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!, ASUS OptiMem： , ASUS EPU : ,- EPU, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger, ASUS Quiet Thermal Solution :, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM、Porte I/O Posteriori:1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),2 x USB 3. 1 Gen 1 Type-A,1 x USB 3. 1 Gen 1 Type-C,1 x DVI-D,2 x USB 2. 0,3 x Audio jack(s),1 x LAN (RJ45) port(s),1 x HDMI、Porte I/O Posteriori:1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),2 x USB 3. 1 Gen 1 Type-A,1 x USB 3. 1 Gen 1 Type-C,1 x DVI-D,2 x USB 2. 0,3 x Audio jack(s),1 x LAN (RJ45) port(s),1 x HDMI、I/O Interne:2 x USB 3. 1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3. 1 Gen 1 port(s) (19-pin),1 x Mono Out header,1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3. 0 x 4 mode),1 x M. 2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3. 0 x 4 mode),2 x Chassis Fan connector(s) (2 x 4-pin),1 x 8-pin EATX 12V Power connectors,1 x System panel connector,2 x USB 2. 0 connector(s) support(s) additional 4 USB 2. 0 port(s),1 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s)、I/O Interne:2 x USB 3. 1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3. 1 Gen 1 port(s) (19-pin),1 x Mono Out header,1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3. 0 x 4 mode),1 x M. 2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3. 0 x 4 mode),2 x Chassis Fan connector(s) (2 x 4-pin),1 x 8-pin EATX 12V Power connectors,1 x System panel connector,2 x USB 2. 0 connector(s) support(s) additional 4 USB 2. 0 port(s),1 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s)、Accessori:1 x SCD (by region),2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,1 x M. 2 Screw Package、Accessori:1 x SCD (by region),2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,1 x M. 2 Screw Package、BIOS:128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3. 1, SM BIOS 3. 1, ACPI 6. 1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information、BIOS:128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3. 1, SM BIOS 3. 1, ACPI 6. 1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information、Gestibilità:WfM 2. 0, DMI 3. 1, WOL by PME, PXE、Gestibilità:WfM 2. 0, DMI 3. 1, WOL by PME, PXE、Disco di Supporto:Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version)、Disco di Supporto:Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version)、Sistema Operativo:Windows® 10 64-bit、Sistema Operativo:Windows® 10 64-bit、Dimensioni Scheda:9. 6 inch x 9. 6 inch ( 24. 4 cm x 24. 4 cm ),mATX Form Factor、Dimensioni Scheda:9. 6 inch x 9. 6 inch ( 24. 4 cm x 24. 4 cm ),mATX Form Factor、Note:* PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M. 2 X16 series Card. ** ** Hyper M. 2 X16 series card sold separately. Install a Hyper M. 2 X16 series card and enable this card under BIOS settings. *1 When a device in SATA mode is installed on the M. 2_1 socket, SATA_1 port cannot be used.、Note:* PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M. 2 X16 series Card. ** ** Hyper M. 2 X16 series card sold separately. Install a Hyper M. 2 X16 series card and enable this card under BIOS settings. *1 When a device in SATA mode is installed on the M. 2_1 socket, SATA_1 port cannot be used.…
| Modello | PRIME Z370M-PLUS II |
| CPU | Intel® Socket 1151for 9 th / 8 th Generation Pentium®/Celeron® Processors,Supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.,Supports Intel® 14nm CPU,* Refer to www.asus.com for CPU support list |
| Chipset | Intel® Z370 |
| Memoria | 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *,* The maximum memory frequency supported varies by processor.,Supports Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Grafica | Integrated Graphics Processor- Intel® HD Graphics support,- Supports HDMI with max. resolution 4096 x 2160 @ 30Hz,Maximum shared memory of 1024 MB (for iGPU exclusively),Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™,Multi-VGA output support : HDMI/DVI-D ports,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz |
| Supporto Multi-GPU | Supports AMD CrossFireX™ Technology |
| Slot di Espansione | 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) *,1 x PCIe 3.0/2.0 x16 (max at x4 mode),2 x PCIe 3.0/2.0 x1 |
| Intel® Z370 Chipset : | ,1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 1 ,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),4 x SATA 6Gb/s port(s), gray, Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) ,PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card,Support Raid 0, 1, 5, 10,Intel® Optane™ Memory Ready |
| LAN | Intel® I219V, 1 x Gigabit LAN Controller(s),Anti-surge LANGuard |
| Audio | Feature : |
| Porte USB | 7 x USB 3.1 Gen 1 port(s) (4 at mid-board), Intel® Z370 Chipset : ,6 x USB 2.0 port(s) (4 at mid-board) |
| Caratteristiche Speciali | - ASUS O.C. Tuner, M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) ,- Optimem (Improved DDR4 stability),- Stylish Fanless Design Heat-sink solution & MOS Heatsink,- ASUS Fan Xpert 4 Core, ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!, ASUS OptiMem： , ASUS EPU : ,- EPU, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger, ASUS Quiet Thermal Solution :, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM |

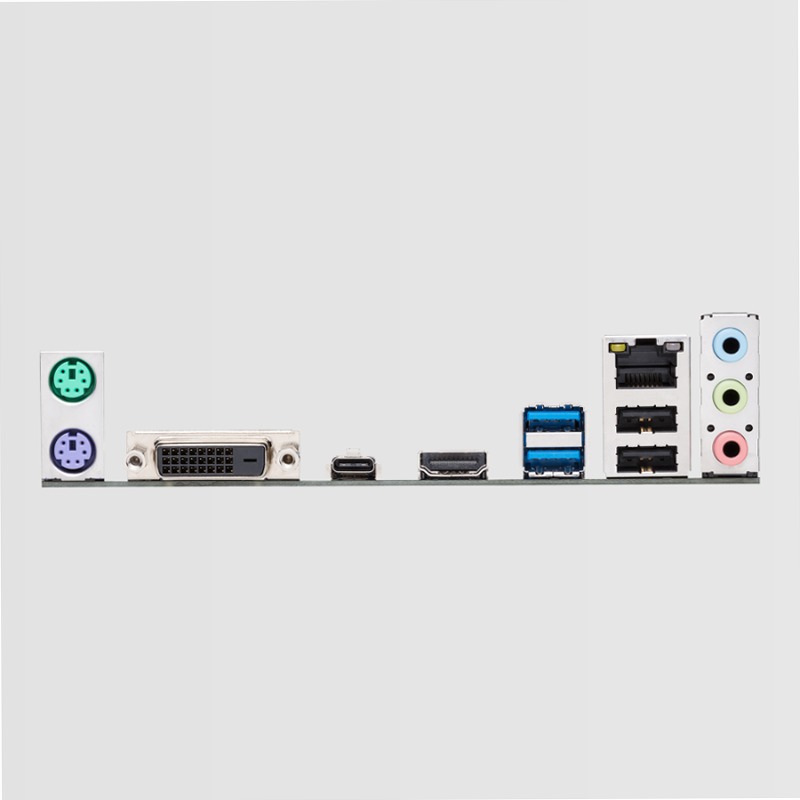

| Porte I/O Posteriori | 1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),2 x USB 3.1 Gen 1 Type-A,1 x USB 3.1 Gen 1 Type-C,1 x DVI-D,2 x USB 2.0,3 x Audio jack(s),1 x LAN (RJ45) port(s),1 x HDMI |
| I/O Interne | 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin),1 x Mono Out header,1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),2 x Chassis Fan connector(s) (2 x 4-pin),1 x 8-pin EATX 12V Power connectors,1 x System panel connector,2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s) |

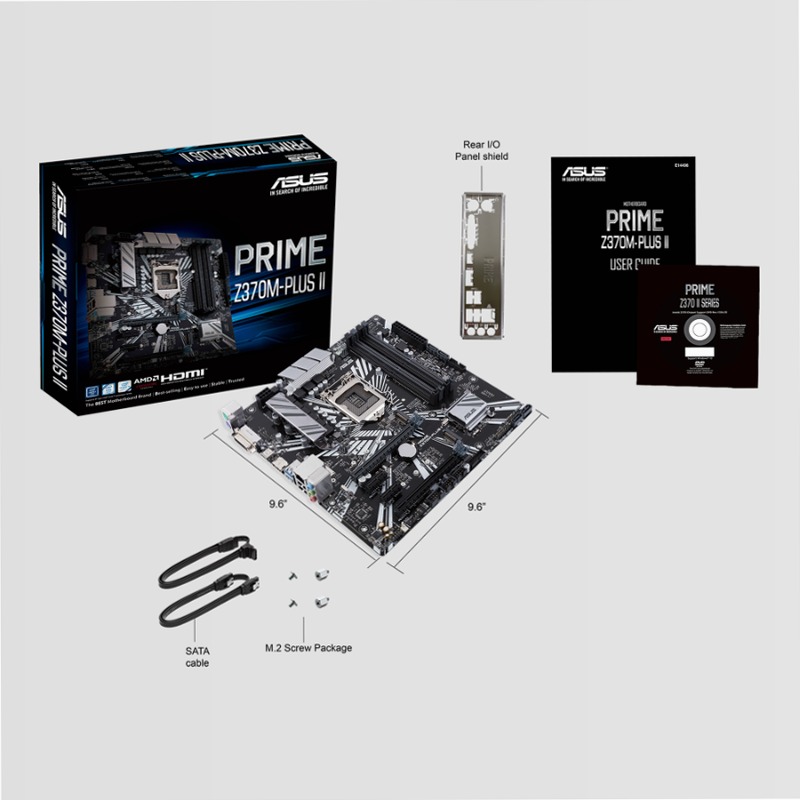

| Accessori | 1 x SCD (by region),2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,1 x M.2 Screw Package |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.1, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Gestibilità | WfM 2.0, DMI 3.1, WOL by PME, PXE |
| Disco di Supporto | Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) |
| Sistema Operativo | Windows® 10 64-bit |
| Dimensioni Scheda | 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ),mATX Form Factor |
| Note | * PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card. ** ** Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings. *1 When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used. |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset Intel. Intel, modello da PRIME Z370M-PLUS II, cpu da Intel® Socket 1151for 9 th / 8 th Generation Pentium®/Celeron® Processors,Supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.,Supports Intel® 14nm CPU,* Refer to www.asus.com for CPU support list e chipset da Intel® Z370, elementi che ne valorizzano dotazione, prestazioni e fruibilita complessiva
| Sku | 10453 |
| Mpn | 10453 |
| Chipset | Intel |
PRIME Z370M-PLUS II｜Schede Madri｜ASUS Italia e un prodotto da valutare con attenzione perche le evidenze live raccolte mostrano una presenza ancora attuale sul mercato. La lettura piu interessante riguarda soprattutto i suoi punti di forza, che aiutano a capire per quale tipo di acquisto puo avere davvero senso.
Punti di forza
- PRIME Z370M-PLUS II｜Schede Madri｜ASUS Italia Passa al contenuto Aiuto accessibilità Gaming Business Non ci sono articoli nel carrello. Shop on ASUS store SHOP AI Notebook Mobile / Console Desktop / Display / AIO Schede Madri / Componenti Networking / IoT / Server Accessori OFFERTE MEMBER FESTIVAL - Risparmia Ora! Omag.
- Si colloca nella categoria Schede madri con un posizionamento orientato a chi cerca un prodotto curato, aggiornato e competitivo nella sua fascia.
- Le fonti raccolte online mostrano un interesse attuale e una presenza editoriale ancora rilevante, segnale utile per chi vuole acquistare un prodotto seguito e discusso anche fuori dalla scheda ufficiale.
Criticita
Non emergono criticita ricorrenti documentate con sufficiente chiarezza nelle fonti raccolte.
Perche comprarlo
Vale l'acquisto per chi cerca Schede madri con brand forte, presenza online attuale e una valutazione complessiva di 4.0/5, soprattutto se l'obiettivo e puntare su una proposta solida e ben posizionata.
