Descrizione
| Modello | PRIME B560-PLUS |
| CPU | Intel ® Socket LGA1200 for 11 th Gen Intel ® Core™ processors & 10 th Gen Intel ® Core™, Pentium ® Gold and Celeron ® Processors Supports Intel ® 14nm CPU Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0* * Refer to www.asus.com for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel ® B560 Chipset |
| Memory | 4 x DIMM, Max. 128GB,DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) ASUS OptiMem * 11 th Gen Intel ® processors support 2933/2800/2666/2400/2133 natively. * 10 th Gen Intel ® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics | 1 x DP 1.4** 1 x HDMI TM 1.4 / 2.0*** 1 x D-Sub * Graphics specifications may vary between CPU types. ** For Intel ® 11 th & 10 th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.Please refer to www.intel.com for any update. *** Only Intel ® 11 th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. |
| Intel ® 11 th &10 th Gen Processors | 1 x PCIe 4.0/3.0 x16 slot* - Intel ® 11 th processors support PCIe 4.0 x16 - Intel ® 10 th processors support PCIe 3.0 x16 Intel ® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots *Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel ® Optane Memory. |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel ® 11 th Gen Processors -M.2_1slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 ) -Only Intel ® 11 th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel ® B560 Chipset -M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode* -6 x SATA 6Gb/s ports * When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used. |
| Ethernet | Intel ® I219-V ASUS LANGuard |
| Wireless & Bluetooth | M.2 slot only(Key E,CNVi & PCIe)* (Wi-Fi module is sold separately) |
| Rear USB (Total 7 ports) | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1x USB 3.2 Gen 1 port (1 x USB Type-C®) 4 x USB 2.0 ports Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Features |

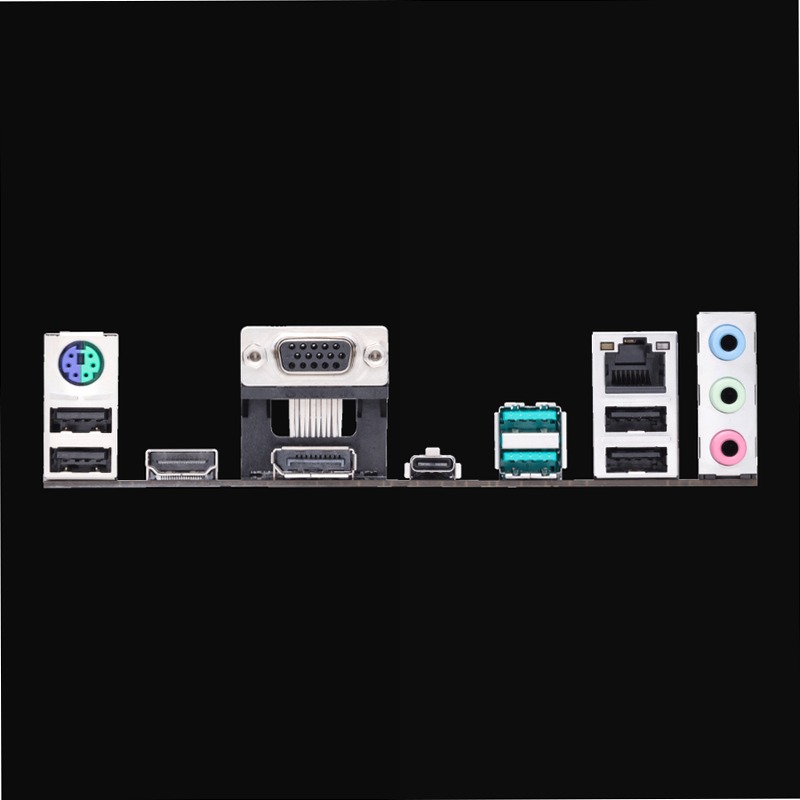

| Back Panel I/O Ports | 1 x DP port 1 x HDMI port 1 x D-Sub port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port 1 x Intel ® I219-V 1Gb Ethernet port 4 x USB 2.0 ports (4 x Type-A) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x USB Type-C ® ) |
| Fan and cooling-related | 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS jumper 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF out header 1 x 20-3pin System Panel header with Chassis intrude function 1 x SPI TPM header (14-1 pin) 1 x M.2 slot (key E) 1 x Thunderbolt 4 header |
| ASUS 5X PROTECTION III | - ASUS DIGI+VRM - ASUS LANGuard - ASUS Overvoltage Protection -ASUS SafeSlot Core+ -ASUS Stainless-Steel Back I/O ASUS Q-Design: -ASUS Q-DIMM -ASUS Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - Box Headers AURA SYNC - AURA RGB headers - Addressable Gen 2 RGB headers |
| ASUS Exclusive Software: | Armoury Crate - AURA Creator -AURA Sync AI Suite 3 -Performance And Power Saving Utility Turbo EVO Digi+ VRM EPU Fan Xpert 2+ - EZ update ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

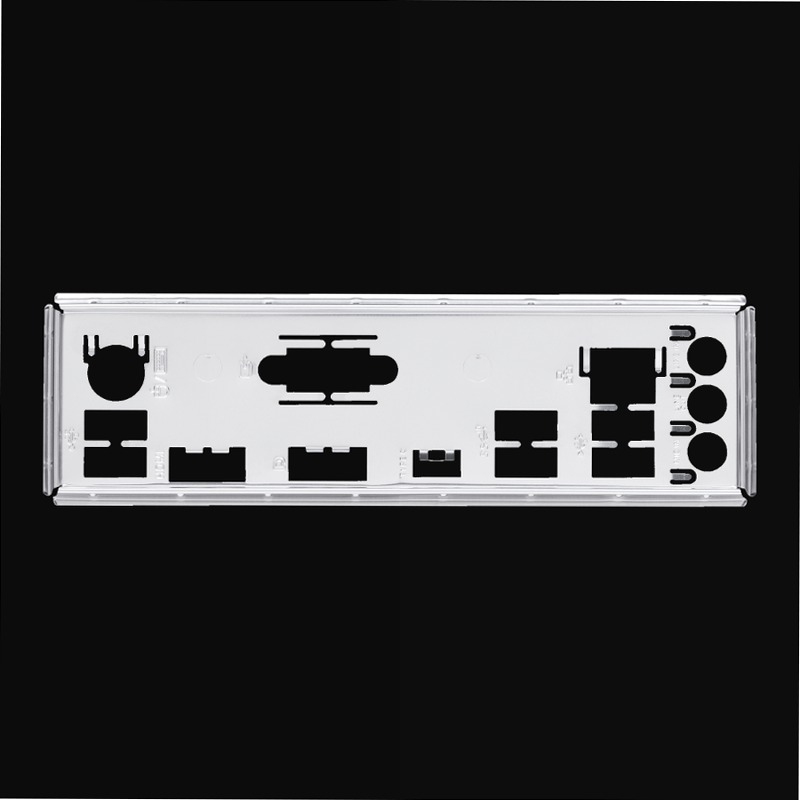

| Cables | 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 Rubber Package 1 x IO Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Supporting DVD Documentation 1 x User's manual |
| Operating System | Windows ® 10 - 64 bit |
| Form Factor | ATX Form Factor 12.0 inch x 9.2 inch (30.5 cm x 23.4cm) |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono modello da PRIME B560-PLUS, cpu da Intel ® Socket LGA1200 for 11 th Gen Intel ® Core™ processors & 10 th Gen Intel ® Core™, Pentium ® Gold and Celeron ® Processors Supports Intel ® 14nm CPU Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0* * Refer to www.asus.com for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types., chipset da Intel ® B560 Chipset e memory da 4 x DIMM, Max. 128GB,DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) ASUS OptiMem * 11 th Gen Intel ® processors support 2933/2800/2666/2400/2133 natively. * 10 th Gen Intel ® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types., elementi che ne valorizzano dotazione, prestazioni e fruibilita complessiva
| Sku | 15530 |
| Mpn | 15530 |
PRIME B560-PLUS｜Schede Madri｜ASUS Italia e un prodotto da valutare con attenzione perche le evidenze live raccolte mostrano una presenza ancora attuale sul mercato. La lettura piu interessante riguarda soprattutto i suoi punti di forza, che aiutano a capire per quale tipo di acquisto puo avere davvero senso.
Punti di forza
- PRIME B560-PLUS｜Schede Madri｜ASUS Italia Passa al contenuto Aiuto accessibilità Gaming Business Non ci sono articoli nel carrello. Shop on ASUS store SHOP AI Notebook Mobile / Console Desktop / Display / AIO Schede Madri / Componenti Networking / IoT / Server Accessori OFFERTE MEMBER FESTIVAL - Risparmia Ora! Omaggio.
- Si colloca nella categoria Schede madri con un posizionamento orientato a chi cerca un prodotto curato, aggiornato e competitivo nella sua fascia.
- Le fonti raccolte online mostrano un interesse attuale e una presenza editoriale ancora rilevante, segnale utile per chi vuole acquistare un prodotto seguito e discusso anche fuori dalla scheda ufficiale.
Criticita
Non emergono criticita ricorrenti documentate con sufficiente chiarezza nelle fonti raccolte.
Perche comprarlo
Vale l'acquisto per chi cerca Schede madri con brand forte, presenza online attuale e una valutazione complessiva di 4.0/5, soprattutto se l'obiettivo e puntare su una proposta solida e ben posizionata.
