B650E MAX GAMING WIFI - Specifiche Generali｜Schede Madri｜ASUS Italia AMD DDR5 AM5 – 30994
Descrizione
AMD B650E MAX GAMING WIFI: Boost your AMD Ryzen™ 9000/8000/7000 Series with DDR5, PCIe 5.
0, Wi-Fi 6E, superior cooling, and customizable RGB lighting.
| Modello | B650E MAX GAMING WIFI |
| News & Updates | Socket AM5, Please visit our GLOBAL website to check and download the latest updates. |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Supports up to AMD 170W CPU * Refer to for CPU support list. |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| AMD Ryzen™ 9000 & 7000 Series Desktop Processors* | 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode) 2 x PCIe 3.0 x16 slots (support x1 mode)*** * Please check the PCIe bifurcation table on the support site ( ). ** Specifications vary by CPU types. *** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs. - To ensure compatibility of the device installed, please refer to for the list of supported |
| Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports | AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth ® v5.3** * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later. ** The Bluetooth ® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Rear USB (Total 8 ports) | 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C ® ) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 5Gbps connector (supports USB Type-C ® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports * USB Type-C ® power delivery output: max. 5V/3A |
| Audio | Features |

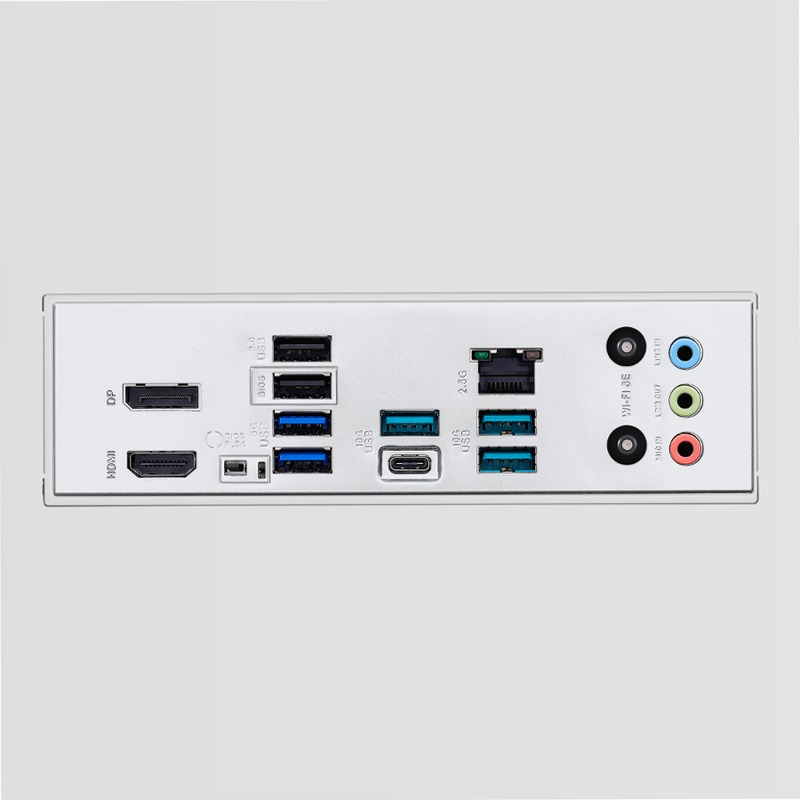

| Back Panel I/O Ports | 1 x USB 10Gbps port (1 x USB Type-C ® ) 3 x USB 10Gbps ports (3 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button |
| Fan and Cooling Related | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 1 x Thunderbolt™ (USB4 ® ) header |
| ASUS 5X PROTECTION III | - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers |
| ASUS Exclusive Software | Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS Driver Hub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

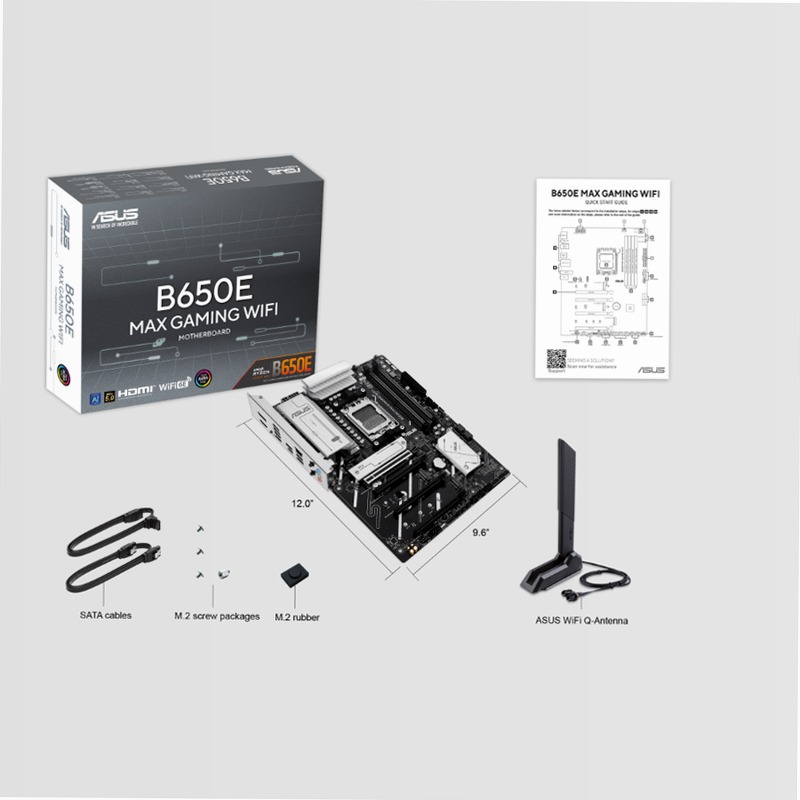

| Cables | 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 3 x Screw packages for M.2 SSD Documentation 1 x Quick start guide |
| Operating System | Windows ® 11, Windows ® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset AMD. AMD, ram supportata da DDR5. DDR5, socket cpu da AM5. AM5 e modello da B650E MAX GAMING WIFI, elementi che ne valorizzano dotazione, prestazioni e fruibilita complessiva
| Sku | 30994 |
| Mpn | 30994 |
| Chipset | AMD |
| RAM supportata | DDR5 |
| Socket CPU | AM5 |
B650E MAX GAMING WIFI｜Schede Madri｜ASUS Italia e un prodotto da valutare con attenzione perche le evidenze live raccolte mostrano una presenza ancora attuale sul mercato. La lettura piu interessante riguarda soprattutto i suoi punti di forza, che aiutano a capire per quale tipo di acquisto puo avere davvero senso.
Punti di forza
- B650E MAX GAMING WIFI｜Schede Madri｜ASUS Italia Passa al contenuto Aiuto accessibilità Gaming Business Non ci sono articoli nel carrello. Shop on ASUS store SHOP AI Notebook Mobile / Console Desktop / Display / AIO Schede Madri / Componenti Networking / IoT / Server Accessori OFFERTE MEMBER FESTIVAL - Risparmia Ora! Om.
- Si colloca nella categoria Schede madri con un posizionamento orientato a chi cerca un prodotto curato, aggiornato e competitivo nella sua fascia.
- Le fonti raccolte online mostrano un interesse attuale e una presenza editoriale ancora rilevante, segnale utile per chi vuole acquistare un prodotto seguito e discusso anche fuori dalla scheda ufficiale.
Criticita
Non emergono criticita ricorrenti documentate con sufficiente chiarezza nelle fonti raccolte.
Perche comprarlo
Vale l'acquisto per chi cerca Schede madri con brand forte, presenza online attuale e una valutazione complessiva di 4.0/5, soprattutto se l'obiettivo e puntare su una proposta solida e ben posizionata.
