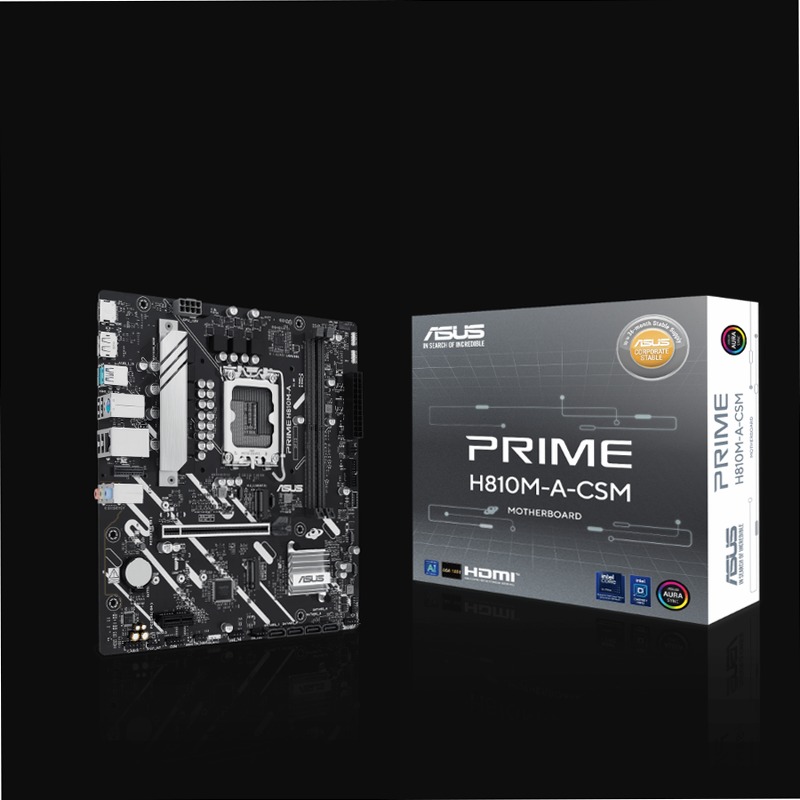

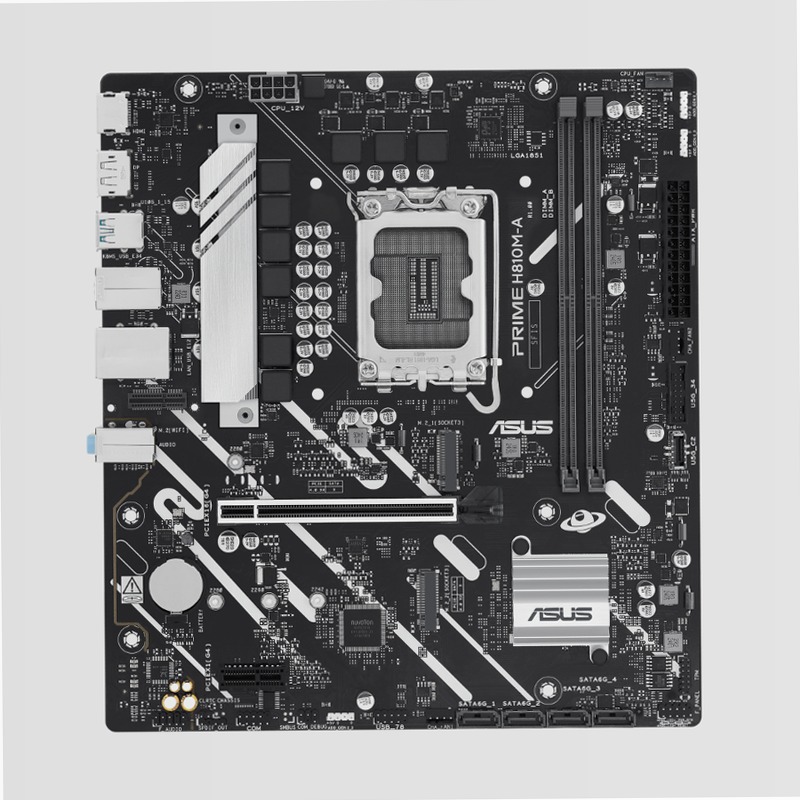

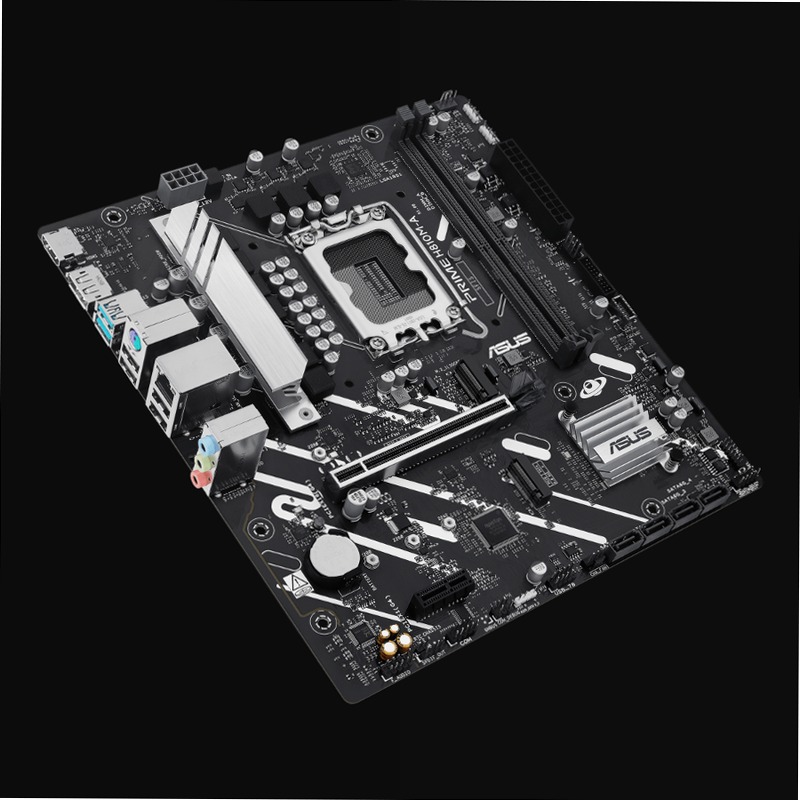

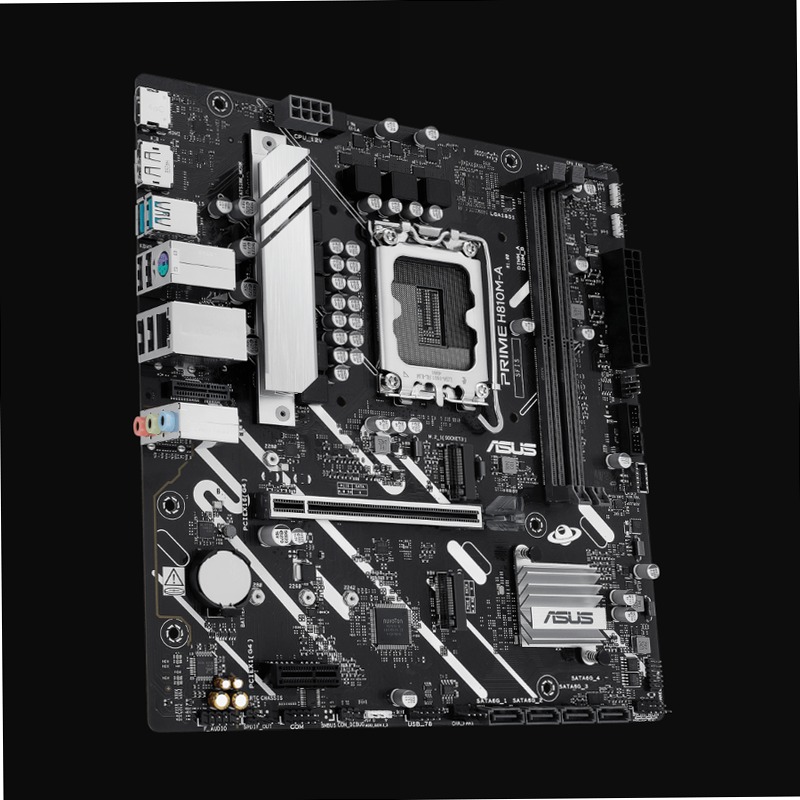

ASUS PRIME H810M-A-CSM - Motherboard Pro Intel – 30964
Descrizione
Scopri il potere dell'ASUS PRIME H810M-A-CSM, la motherboard ideale per i tuoi PC. Supporta i processori Intel® Core™ Ultra (Series 2), offrendo connessioni USB veloci e compatibilità con la DDR5. Con ASUS Control Center Express e ASUS Fan Xpert 2+, ottieni un controllo completo delle tue configurazioni.
La sua struttura innovativa, con due slot M. 2 fino a 64Gbps, garantisce un raffreddamento efficace e precisione intelligente. Personalizza la tua esperienza con ASUS DriverHub e Armoury Crate, e sperimenta la sinergia di Aura Sync. Scegli la progettazione DIY amichevole e il nuovo BIOS UEFI per un'esperienza di installazione senza preoccupazioni.
| Modello | PRIME H810M-A-CSM |
| News & Updates | Please see the updated OS support requirements for the Intel ® Core Ultra 200S series below: •Intel ® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel ® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check and download the latest updates. |
| CPU | Support Intel ® Core™ Ultra Processors (Series 2) , LGA1851 Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** * Refer to for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel ® H810 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel ® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Intel ® Core™ Ultra Processors (Series 2) | 1 x PCIe 4.0 x16 slot Intel ® H810 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to for the list of supported peripherals. |
| Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel ® H810 Chipset | M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel ® 1Gb Ethernet port* ASUS LANGuard *With Intel ® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3. |
| Wireless & Bluetooth | "V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately." |
| Rear USB (Total 6 ports) | 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C ® )* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C ® power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
| Audio | Features |

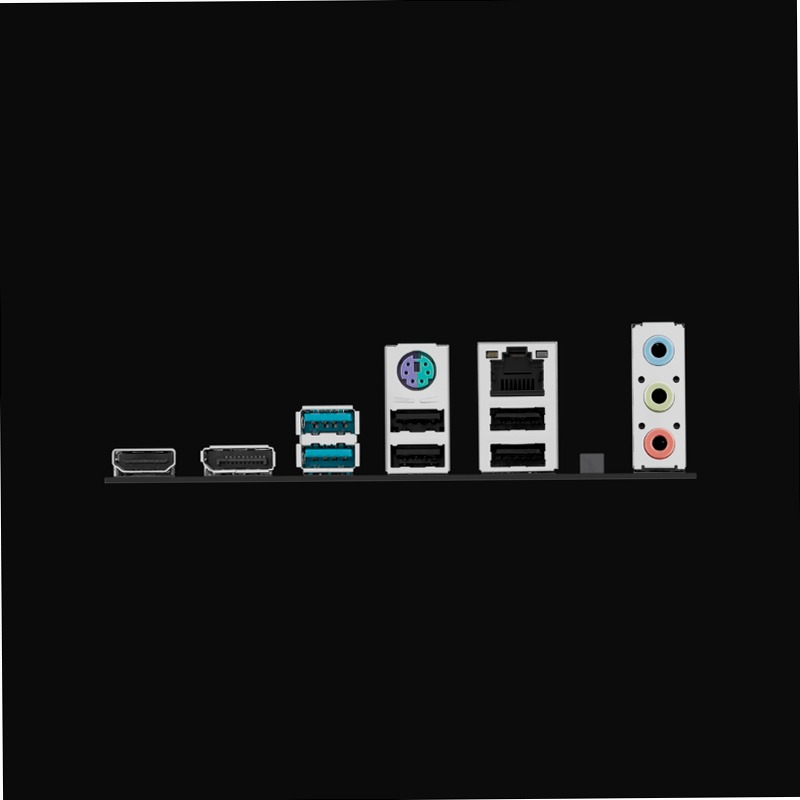

| Back Panel I/O Ports | 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Intel ® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard/mouse combo port |
| Fan and Cooling Related | 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header |
| ASUS 5X PROTECTION III | - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Dashboard - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Aura Sync - Addressable Gen 2 headers |
| ASUS Exclusive Software | Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

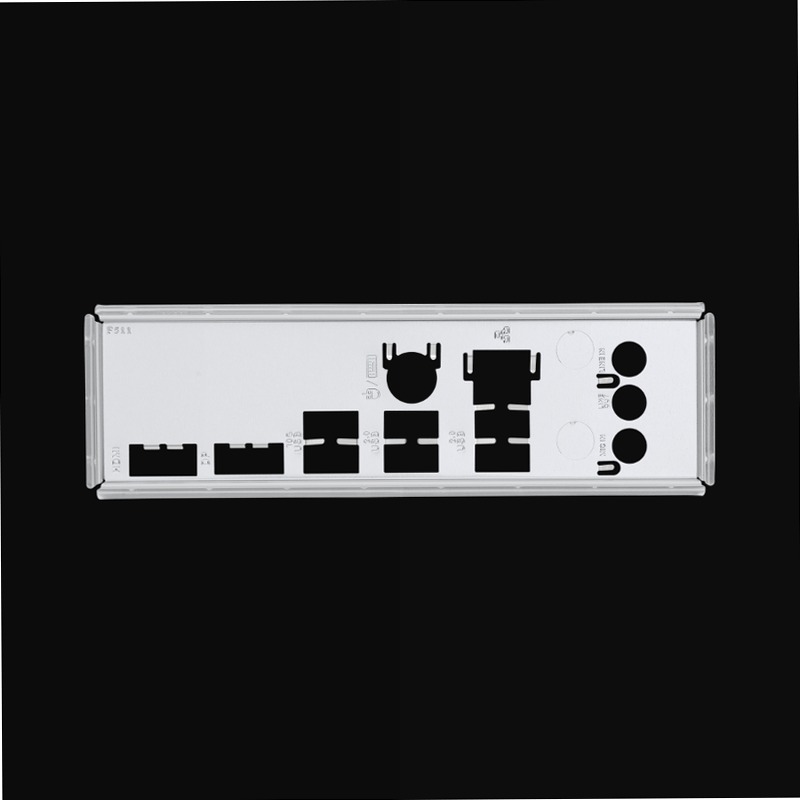

| Cables | 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x Screw package for M.2 SSD Documentation 1 x ACC Express activation key card 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm) |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset Intel. Intel, modello da PRIME H810M-A-CSM, news & updates da Please see the updated OS support requirements for the Intel ® Core Ultra 200S series
| Sku | 30964 |
| Mpn | 30964 |
| Chipset | Intel |
