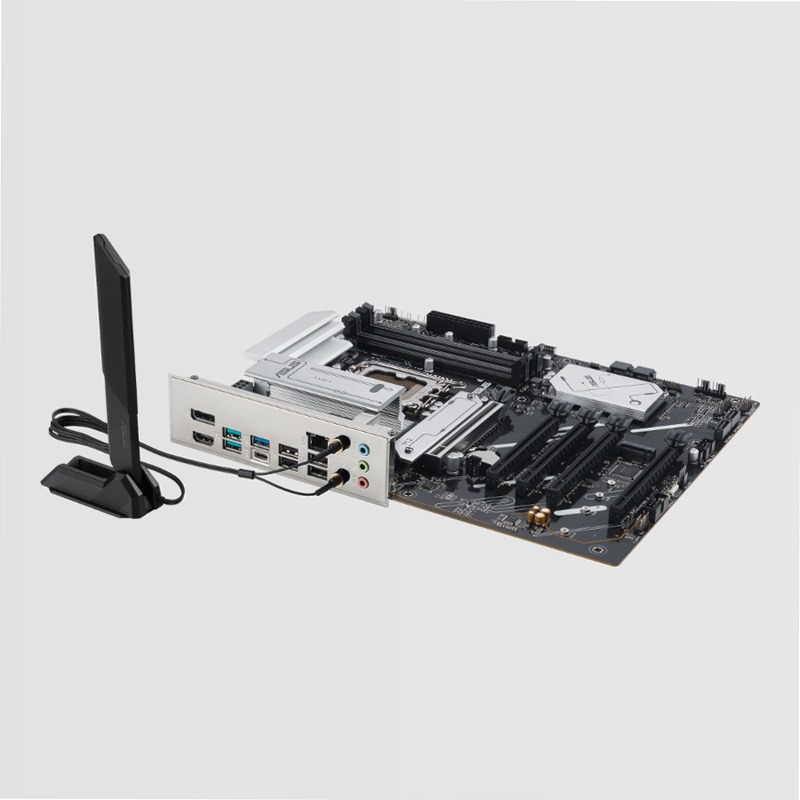

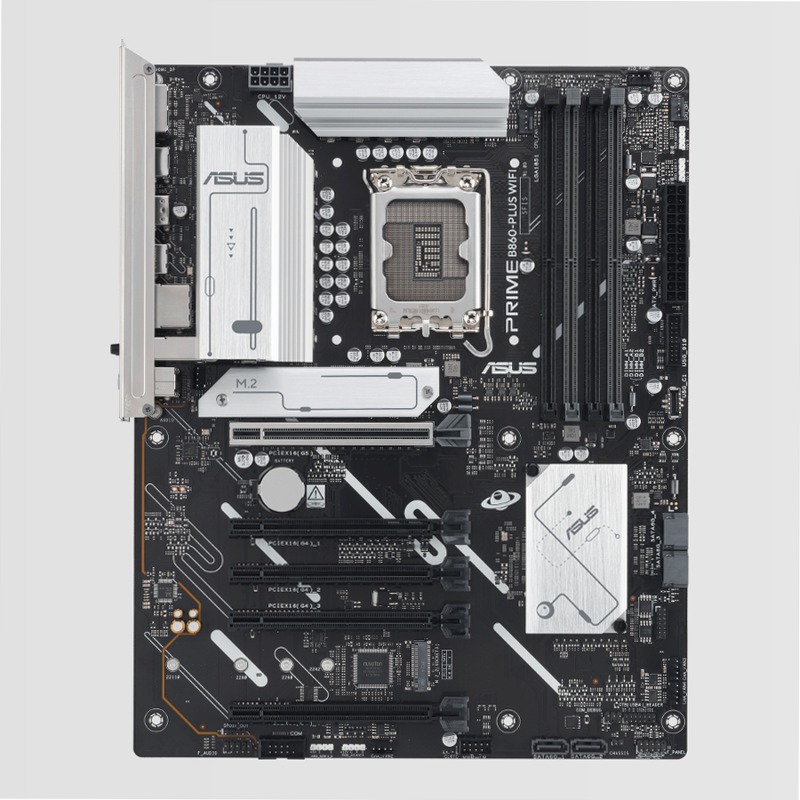

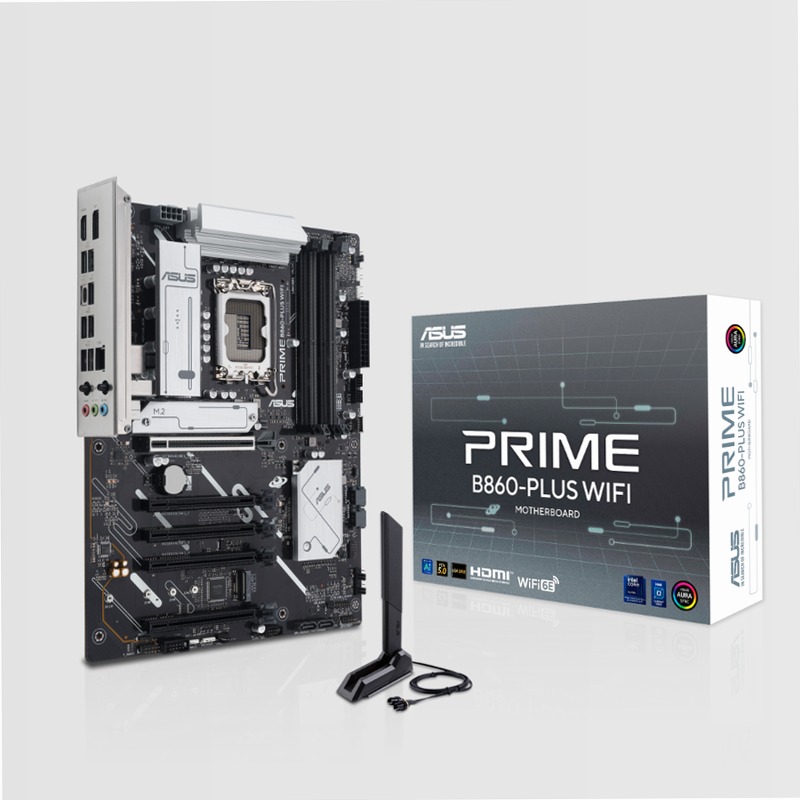

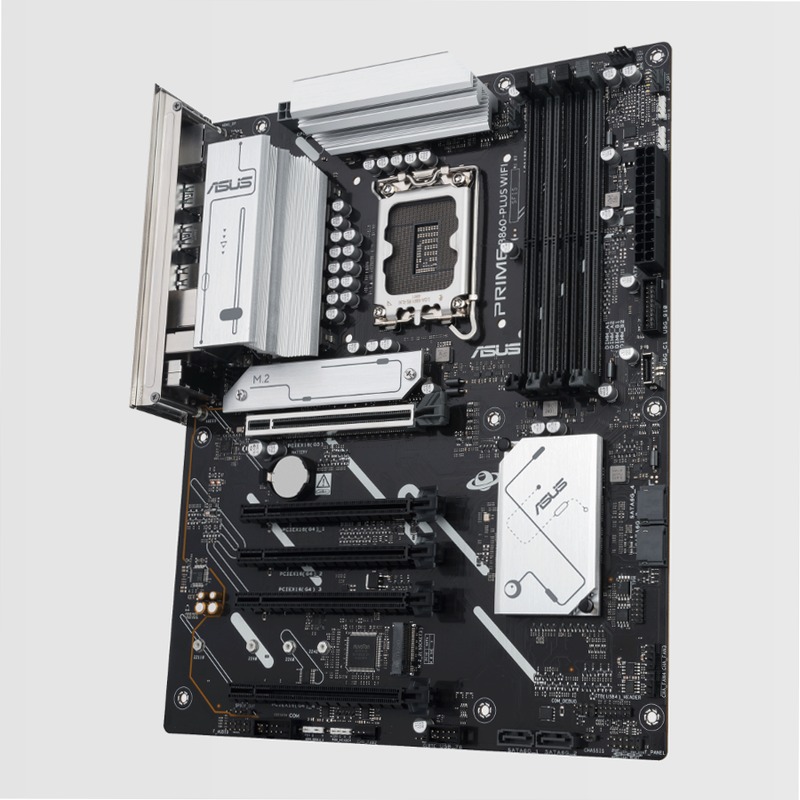

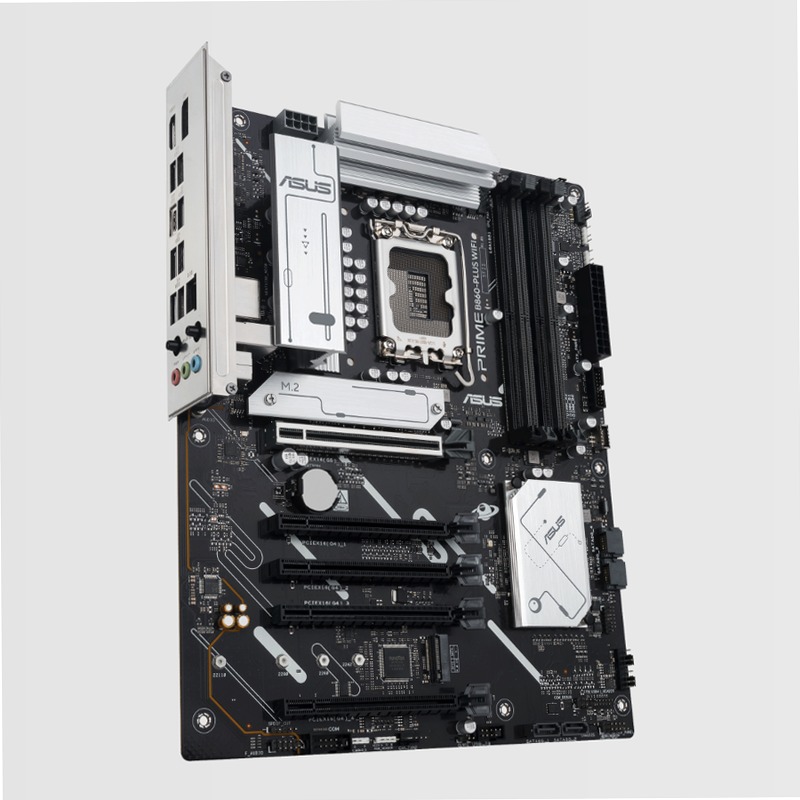

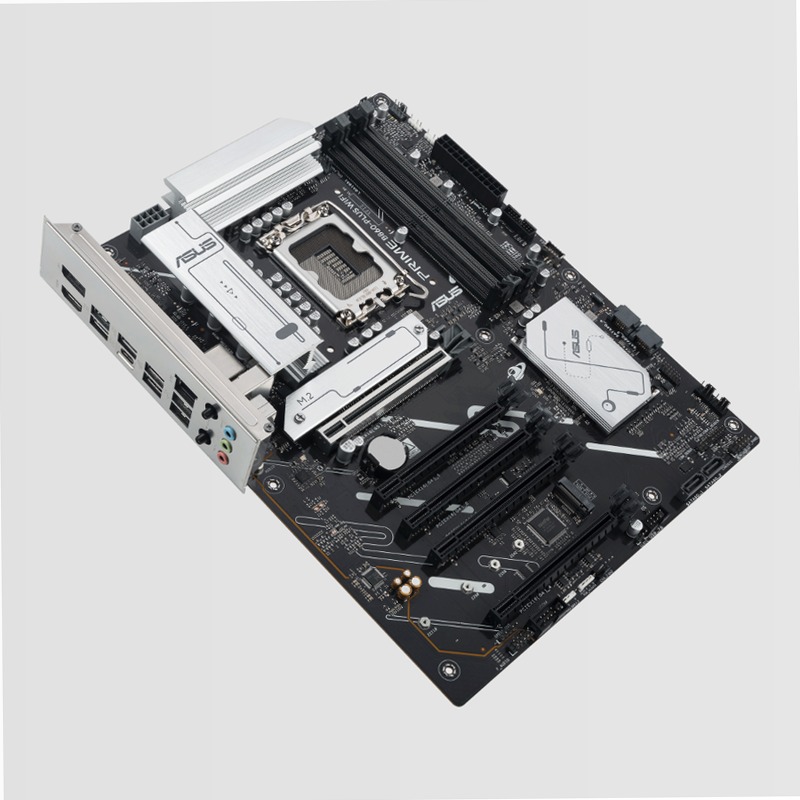

ASUS PRIME B860-PLUS WIFI - Scheda Madre Intel DDR5 – 30844
Descrizione
Il PRIME B860-PLUS WIFI di ASUS è progettato per migliorare le prestazioni del tuo PC. Supporta processori Intel® Core™ Ultra (Series 2), memorie DDR5 e slot PCIe 5.
0, offrendo una connessione WiFi 6E veloce e affidabile. AI capabilities integrate per un'esperienza di gaming ottimizzata Raffreddamento intelligente con ASUS Fan Xpert 2+ Puoi personalizzare al massimo grazie a diverse funzionalità come GlideX e DriverHub Con AEMP III per le prestazioni DDR5 massime, il PRIME B860-PLUS WIFI è la scelta perfetta per chi cerca un sistema affidabile e potente.
| Modello | PRIME B860-PLUS WIFI |
| News & Updates | Please see the updated OS support requirements for the Intel ® Core Ultra 200S series below: •Intel ® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel ® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check and download the latest updates. |
| CPU | Support Intel ® Core ™ Ultra Processors (Series 2) , LGA1851 Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** * Refer to for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel ® B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel ® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit . Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMI ™ port*** 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** Supports max. 4K@120Hz as specified in DisplayPort 1.4. ***** VGA resolution support depends on processors' or graphic cards' resolution. ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Intel® Core™ Ultra Processors (Series 2)* | 1 x PCIe 5.0 x16 slot (PCIEX16(G5)) Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode) 3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode) - To ensure compatibility of the device installed, please refer to for the list of supported peripherals. |
| Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel ® Core ™ Ultra Processors (Series 2)* | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel ® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wi-Fi 6E | 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth ® v5.3** * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later ** The Bluetooth ® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Rear USB (Total 8 ports) | 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (1 x USB Type-C ® ) 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports *USB Type-C® power delivery output: max. 5V/3A |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

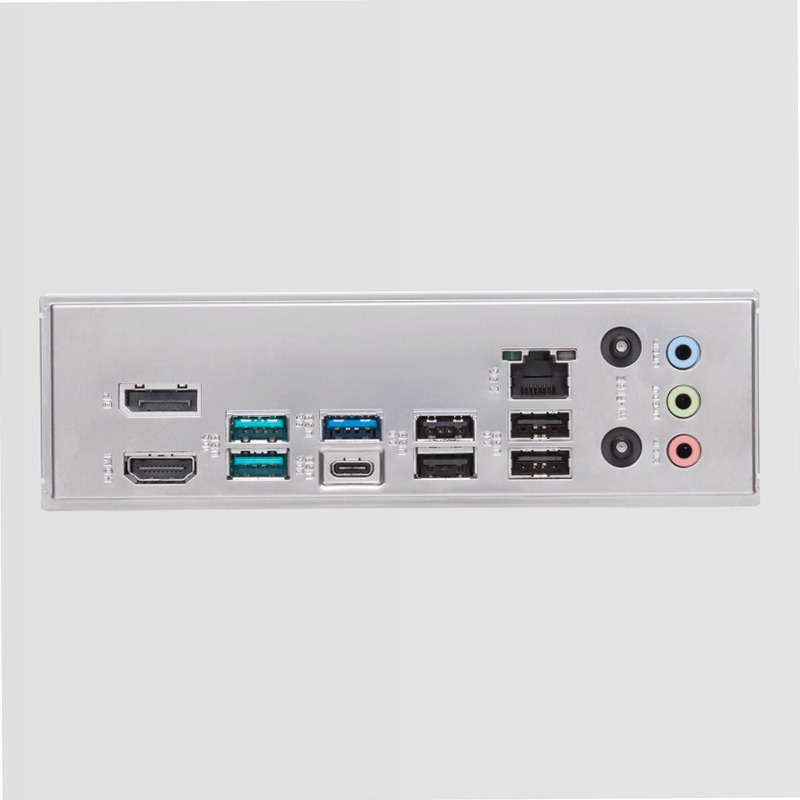

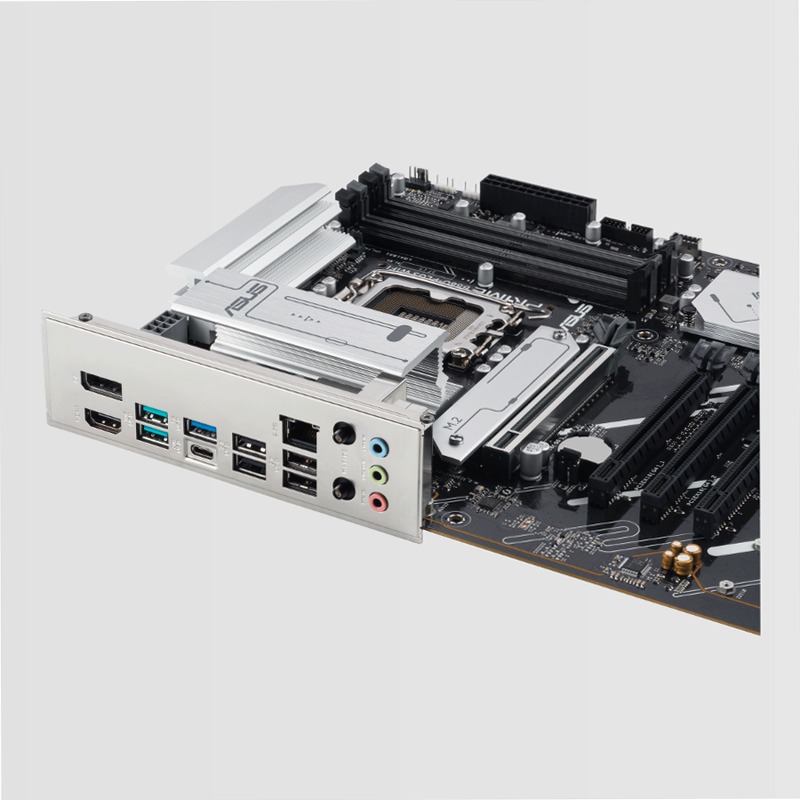

| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI ™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Fan and Cooling related | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt ™ (USB4 ® ) header |
| ASUS 5X PROTECTION III | -DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| ASUS Exclusive Software | Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

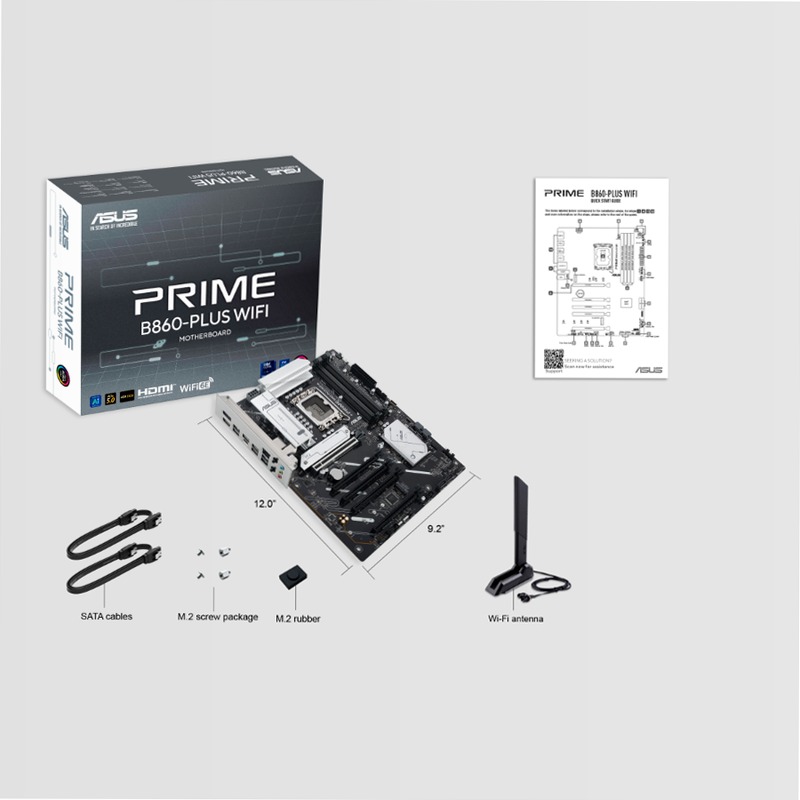

| Cables | 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later) |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Punti di forza
Tra gli aspetti piu interessanti del prodotto emergono chipset Intel. Intel, ram supportata da DDR5. DDR5, modello da PRIME B860-PLUS WIFI e news & updates da Please see the updated OS support requirements for the Intel ® Core Ultra 200S series
| Sku | 30844 |
| Mpn | 30844 |
| Chipset | Intel |
| RAM supportata | DDR5 |
PRIME B860-PLUS WIFI｜Schede Madri｜ASUS Italia e un prodotto da valutare con attenzione perche le evidenze live raccolte mostrano una presenza ancora attuale sul mercato. La lettura piu interessante riguarda soprattutto i suoi punti di forza, che aiutano a capire per quale tipo di acquisto puo avere davvero senso.
Punti di forza
- PRIME B860-PLUS WIFI｜Schede Madri｜ASUS Italia Passa al contenuto Aiuto accessibilità Gaming Business Non ci sono articoli nel carrello. Shop on ASUS store SHOP AI Notebook Mobile / Console Desktop / Display / AIO Schede Madri / Componenti Networking / IoT / Server Accessori OFFERTE MEMBER FESTIVAL - Risparmia Ora! Oma.
- Si colloca nella categoria Schede madri con un posizionamento orientato a chi cerca un prodotto curato, aggiornato e competitivo nella sua fascia.
- Le fonti raccolte online mostrano un interesse attuale e una presenza editoriale ancora rilevante, segnale utile per chi vuole acquistare un prodotto seguito e discusso anche fuori dalla scheda ufficiale.
Criticita
Non emergono criticita ricorrenti documentate con sufficiente chiarezza nelle fonti raccolte.
Perche comprarlo
Vale l'acquisto per chi cerca Schede madri con brand forte, presenza online attuale e una valutazione complessiva di 4.0/5, soprattutto se l'obiettivo e puntare su una proposta solida e ben posizionata.
